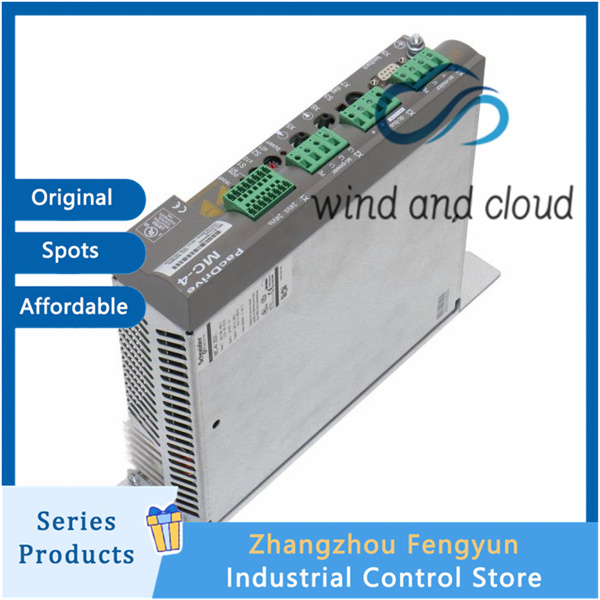

ELAU MC-4/11/01/400｜Servo Drive｜

MC-4/11/01/400

1) Power supply
Input: Three phase 380-480V AC ± 10%, 48-62Hz
Control power supply: 24V DC -15%/+25%, 1A
DC bus: 530-680V DC

2) Output (drive motor)
Rated current: 1A (RMS, continuous)
Peak current: 2.5A (1 second, 250% overload)
Rated power: ≈ 0.7kVA
Output frequency: 0-600Hz
Suitable motor: ELAU SM/SH series * * ≤ 0.3kW low-power servo motor**

3) Control and Communication
Sports bus: SERCOS III (fiber optic), compatible with MAX-4 controller
Control mode: position/speed/torque closed-loop
Encoder: Supports EnDat 2.2, HIPERFACE DSL, and Resolving
Safety function: STO (safety torque off)

4) Machinery and Environment
Size (width x height x depth): 50 x 230 x 310 mm (ultra narrow version)
Weight: ≈ 2.1kg
Heat dissipation: Natural cooling (fanless)
Protection level: IP20
Working temperature: 0-55 ° C

5) Electrical characteristics
Switching frequency: 16kHz
Static power consumption: about 8W
Braking: Built in small braking resistor
