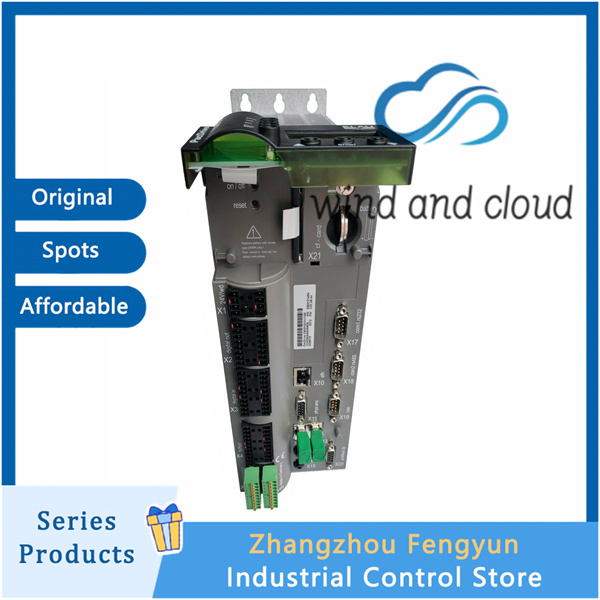

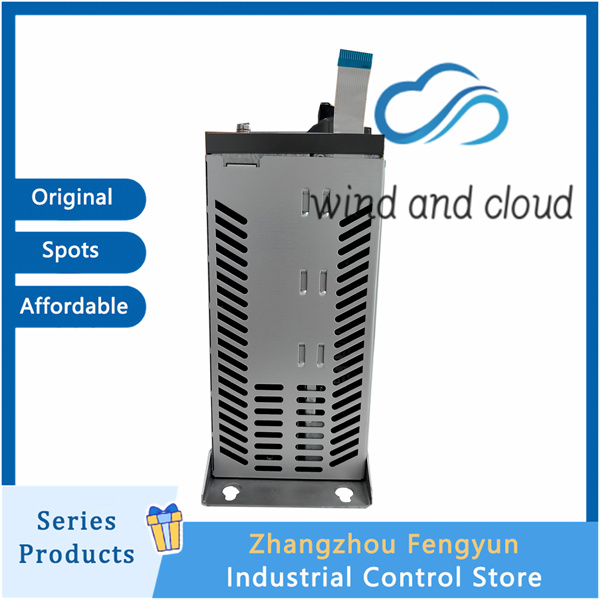

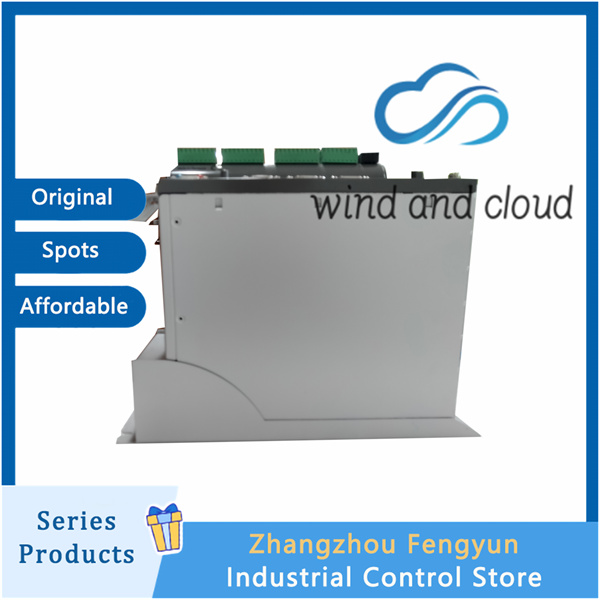

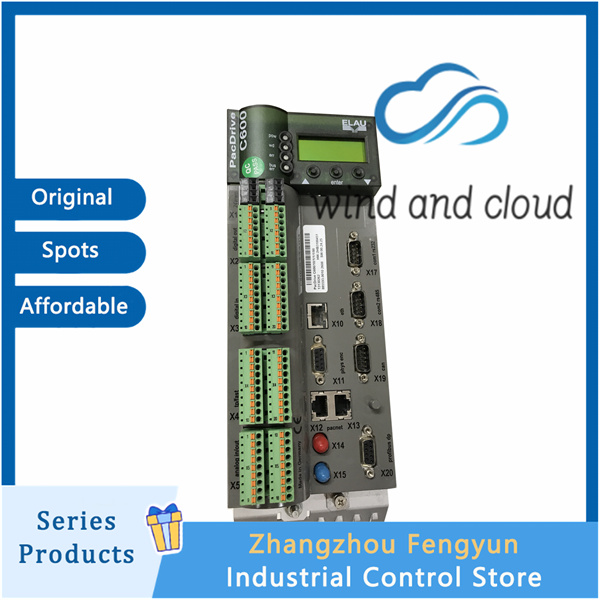

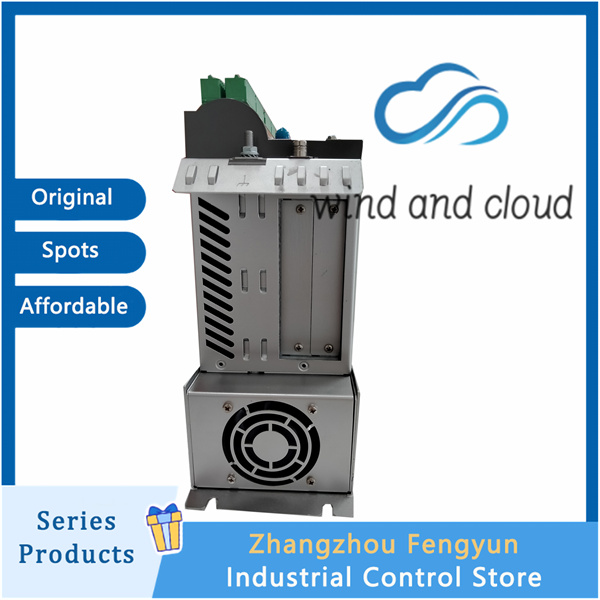

ELAU C600/10/1/1/1/00｜Controller｜

All products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second-hand and brand new products are available for sale on this website. Please contact customer service for further communication.

ELAU C600/10/1/1/1/00｜Controller｜

C600/10/1/1/1/00

Processor: Intel Pentium M 1.6 GHz
Memory: 256 MB RAM/32 MB Flash
Storage: CompactFlash ≥ 128 MB
System: VxWorks real-time operating system
Number of control axes: Maximum of 16 axes (SERCOS III bus)

Power supply: 24 V DC (20-33 V DC)
Power consumption: Typical 85 W
Insulation: 2500 V AC photoelectric isolation

Bus: SERCOS III (16 Mbaud, 16 axis)
Synchronization cycle: 250 μ s (fast task)
Inter axis synchronization error: ≤ 50 μ s
Encoder: 24 bit absolute value (EnDat 2.2), resolution 16777216 pulses/rev
Control modes: position/speed/torque, electronic gear, electronic cam, interpolation

Ethernet: 10/100 Base-T (TCP/IP)
Serial port: RS232 (COM1), RS485 (COM2)
Fieldbus:
PROFIBUS DP (master/slave, 12 Mbaud)
CANopen (master/slave)
Expansion: EtherNet/IP, DeviceNet (option card)
