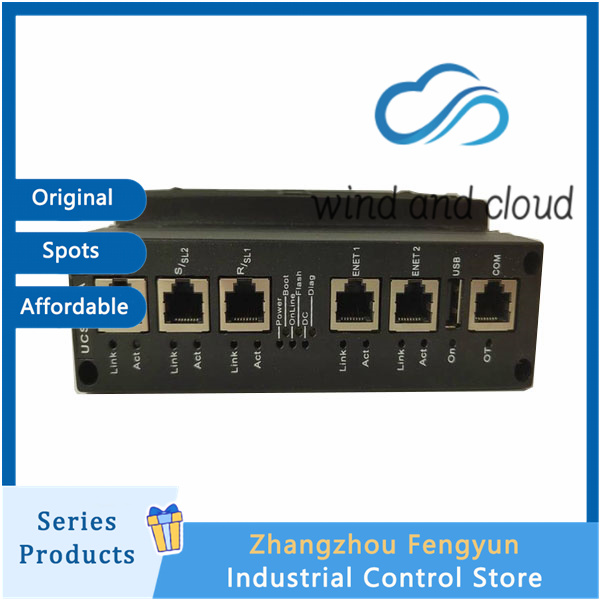

IS420UCSBH4A GE UCSB Controller Module

IS420UCSBH4A GE UCSB Controller Module

1、 Core hardware specifications
Model: IS420UCSBH4A
Series: Mark VIe/Speedtronic
Type: UCSB quad core controller blade
CPU: Intel EP80579 quad core @ 1066 MHz (1.066 GHz)
Memory: 256 MB DDR2 SDRAM (ECC)
Storage: 512 MB NAND Flash
OS: QNX Neutrino RTOS (Real time Operating System)
Power consumption: peak 28.7 W/typical 17.3 W
Weight: Approximately 1.1 kg
Protection: IP20 (installed inside the cabinet)
2、 Communication interface
Ethernet (IONet): 3 x Gigabit RJ45 (R/S/T triple redundancy)
USB: 1 x USB 2.0 (maintenance/debugging)
Serial port: 1 × RS-232/485
Clock synchronization: IEEE 1588 PTP
Protocol: IONet, Modbus TCP/RTU, Profinet, HSSL
3、 Electrical and Environmental
Power supply: 24 VDC (18-30 V)
Working temperature: -30 ° C~+65 ° C
Storage temperature: -40 ° C~+85 ° C
Heat dissipation: fanless, natural convection
Certification: UL Class I Div 2, CE, CSA
Safety: IEC 61508 SIL 2/SIL 3
4、 Functions and Applications
Positioning: UCSB blade controller (no local I/O, remote I/O extended through IONet)
Redundancy: simplex/dual redundancy/TMR the third mock examination redundancy
Redundant switching time:<50 ms
Typical applications:
Small and medium-sized gas turbine/steam turbine auxiliary control
Power Plant BoP (Balance of Plant) Auxiliary System
Oil and gas compressor station, long-distance pipeline control
Chemical and metallurgical light load process control
