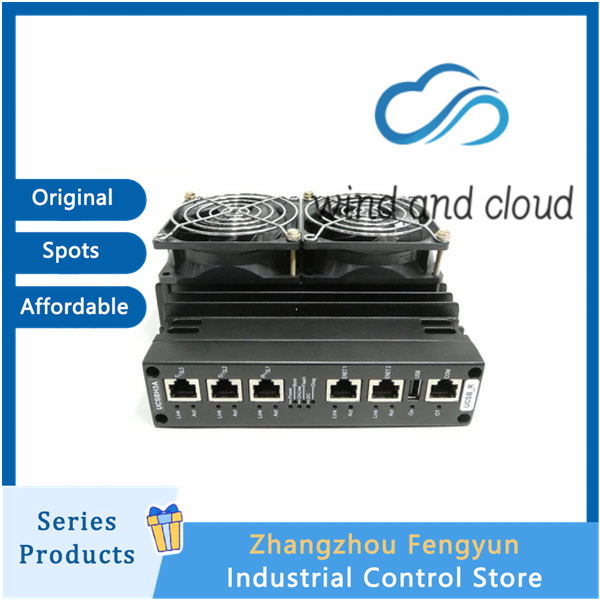

IS420UCSBH3A GE Mark Vie Controller
1、 Core hardware specifications
Model: IS420UCSBH3A
Series: Mark VIe/VIeS/EX2100e/LS2100e
Type: UCSB quad core controller blade
CPU: Intel EP80579 quad core @ 1200 MHz (1.2 GHz)
Memory: 256 MB DDR2 SDRAM (ECC)
Storage: 512 MB NAND Flash
OS: QNX Neutrino RTOS (Real time Operating System)
Power consumption: ≤ 28.7 W (peak)
Weight: Approximately 1.3 kg (2.9 lbs)
Protection: IP20 (installed inside the cabinet)
2、 Communication interface
Ethernet (IONet): 3 x Gigabit RJ45 (R/S/T triple redundancy)
USB: 1 x USB 2.0 (maintenance/debugging)
Serial port: 1 × RS-232/485
Clock synchronization: IEEE 1588 PTP
Protocol: IONet, Modbus TCP/RTU, Profinet, HSSL
3、 Electrical and Environmental
Power supply: 24 VDC (18-30 V)
Working temperature: -40 ° C~+70 ° C
Storage temperature: -40 ° C~+85 ° C
Cooling: Dual redundant fans (different from BH4A without fans)
Certification: UL Class I Div 2, CE, CSA
Safety: IEC 61508 SIL 2/SIL 3
4、 Functions and Applications
Positioning: UCSB high-performance controller (no local I/O, remote I/O extended through IONet)
Redundancy: simplex/dual redundancy/TMR the third mock examination redundancy
Redundant switching time:<50 ms
Typical applications:
Large gas turbine/steam turbine main control/high-speed control
High performance auxiliary system for power plant BOP
High speed control of oil and gas long-distance pipelines and compressor stations
High real-time process control in chemical and metallurgical industries
IS420UCSBH3A GE Mark Vie Controller
