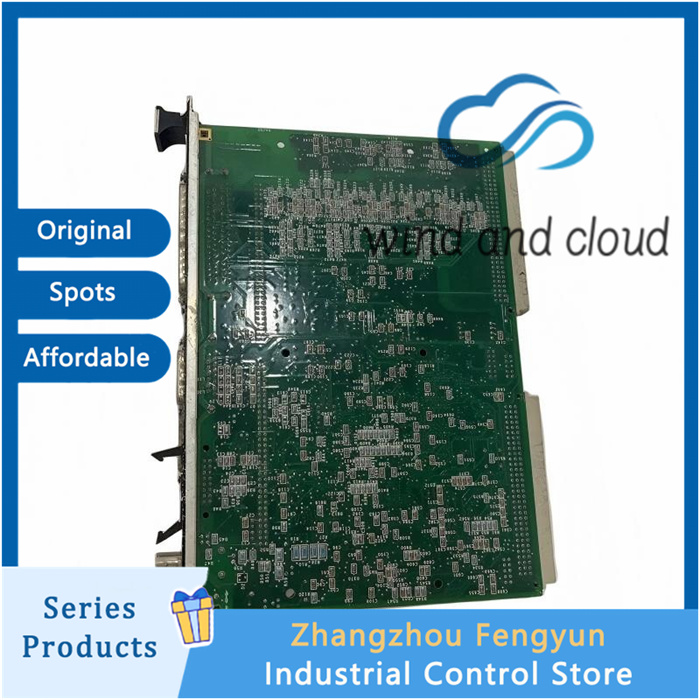

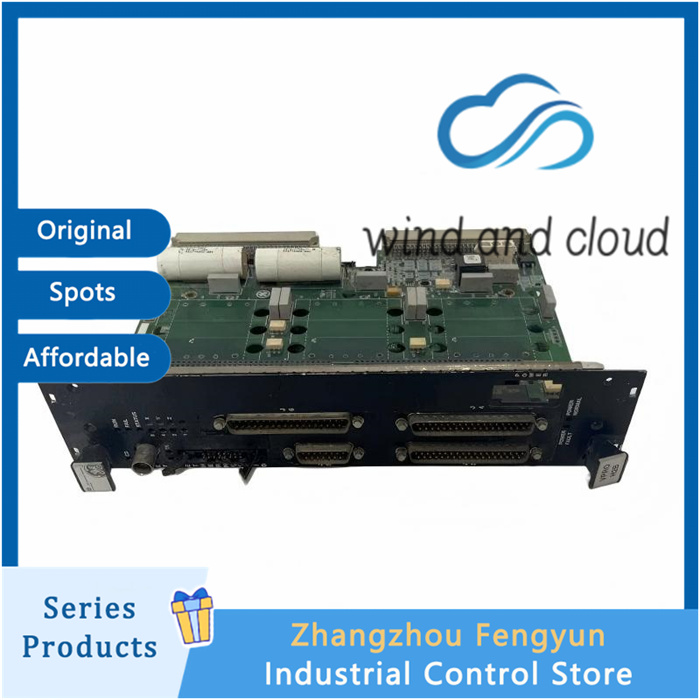

IS200VPROH2B IS200VPROH1BEF IS200VPWRH1AHD GE Mark VI VPRO Protection & Power Board Assembly
H2 Overview
Product Introduction
IS200VPROH2B and IS200VPROH1BEF are GE VPRO emergency turbine protection boards for Speedtronic Mark VI turbine control rack, paired with IS200VPWRH1AHD rack power supply board. The VPRO board delivers independent emergency overspeed protection, turbine trip logic and solenoid control separate from the main turbine control processor, forming the safety protection core of gas and steam turbine units.
IS200VPROH2B and IS200VPROH1BEF support TMR triple modular redundant architecture. They receive MPU speed pulse signals, exhaust temperature signals and breaker status inputs, execute overspeed, over-temperature and abnormal condition voting logic, and drive trip solenoids via TREG / TPRO terminal boards for fast turbine emergency shutdown. IS200VPROH1BEF is the revised variant of the VPRO series with upgraded circuit and diagnostic functions.
IS200VPWRH1AHD is the matched power conversion board for the VPRO protection module. It converts cabinet input power into stable regulated 5VDC and 28VDC for the VPRO protection board, relays and signal circuits. Built-in power monitoring, overvoltage, undervoltage and short-circuit protection ensure continuous reliable power for safety trip loops.
This full assembly is critical safety hardware used for power plant turbine protection retrofit, spare replacement and planned outage maintenance.
H2 Key Features
✅ IS200VPROH2B / IS200VPROH1BEF VPRO Turbine Protection Board
- Independent emergency turbine protection, separated from main control CPU
- TMR triple redundant voting logic for overspeed & overtemperature trip
- MPU speed pulse input, exhaust thermocouple temperature monitoring
- Drive up to 3 trip solenoids via TREG / TPRO terminal boards
- IONet Ethernet communication for protection data transmission
- Hardware input filter, 4ms fast response for safety trip
- Front panel LED indicators: RUN, FAULT, STATUS diagnostic alarm
✅ IS200VPWRH1AHD Power Supply Board
- Dedicated power converter for VPRO protection module
- Output regulated 5VDC and 28VDC for protection circuit & relays
- Overvoltage, undervoltage and short-circuit protection
- Continuous power monitoring & fault alarm
- Rugged PCB conformal coating for power plant EMC environment
✅ General Compatibility
- GE Mark VI Speedtronic gas / steam turbine control rack
- Works with TPRO, TREG, TRPG terminal boards
- Operating Temperature: 0°C ~ +60°C
- Part Numbers: IS200VPROH2B, IS200VPROH1BEF, IS200VPWRH1AHD
H2 Technical Specifications
IS200VPROH2B
- Type: VPRO Turbine Emergency Protection Board
- System: Mark VI Speedtronic
- Architecture: TMR triple modular redundancy
- Pulse Input Range: 2 Hz ~ 20 kHz (MPU speed signal)
- Input Filter: Hardware filter, 4ms
- Update Frame Rate: Up to 100Hz
- Communication: IONet Ethernet
- Function: Overspeed protection, exhaust over-temperature protection, trip solenoid control
- Type: Revised VPRO Turbine Protection Board
- Series: IS200 VPRO family, Mark VI
- Enhanced on-board self-diagnosis and fault recording
- Same trip logic function as IS200VPROH2B with upgraded circuit layout
- Compatible with TPRO / TREG terminal assembly
IS200VPWRH1AHD
- Type: VPRO Module Rack Power Supply Board
- Output: 5VDC, 28VDC regulated power
- Protection: OVP, UVP, short circuit protection
- Role: Power source for VPRO protection board and trip relay circuits
H2 Applications
- Gas turbine & steam turbine Mark VI Speedtronic protection rack
- Power plant independent emergency overspeed protection safety loop
- Turbine emergency trip & solenoid drive control
- Combined cycle power station and thermal power unit protection upgrade
- Petrochemical captive power plant turbine safety system retrofit
- Outage spare replacement, emergency repair of protection module
H2 Our Supply
We supply genuine GE IS200VPROH2B, IS200VPROH1BEF and IS200VPWRH1AHD industrial turbine spare parts.
- In stock available
- Full functional testing & diagnostic check before shipment
- Anti-static packing for sensitive PCB assemblies
- Worldwide delivery
- Compatibility consultation for TMR protection rack and terminal board matching
