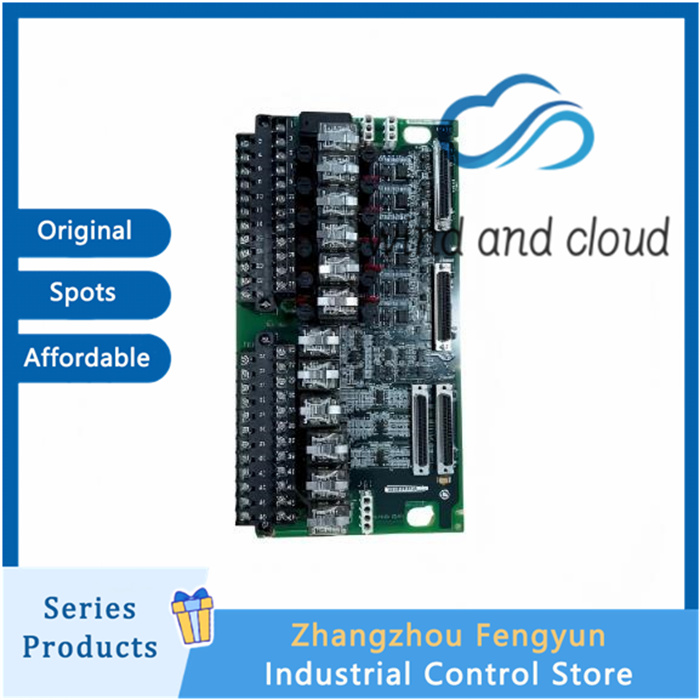

GE IS200TRLYH1BGF | TRLY Relay Output Terminal Board |

Core Functionality
A total of 12 pluggable Form-C (SPDT) relay channels; 1-6 channels support jumper switching: dry contact output/direct drive of on-site solenoid valve coils; The 7-12 channels are isolated dry contact outputs, and the 12th channel is specifically used for special load scenarios such as ignition transformers.
Hardware diagnosis of coil current, real-time detection of relay coil open circuit and short circuit faults; Upload fault information to ToolboxST software, with onboard status LED indicating channel status.
On board multiple circuit meltable power supply branches can provide 24VDC/125VDC/115-230VAC on-site power supply for electromagnetic valves, with independent fuse protection for each circuit and built-in MOV surge suppression circuit AX Control.
Support Simplex single, dual and TMR the third mock examination redundant architecture; The three-way processor signals JR1, JS1, and JT1 are connected to the board to complete signal aggregation and voting, and are adapted to the TMR unit system.
PCB triple anti coating, strong EMI filtering; Connect the on-site cables to the large terminal blocks on both sides; Four sets of IDC board connectors are connected to VCCC/VCRC processor cards.
Hot swapping is not supported, maintenance and replacement must be performed with power off; Static sensitive devices require anti-static grounding for disassembly and assembly.

I/O and Electrical Specifications
Relay channel: 12 channel Form-C (SPDT) pluggable sealed relay AX Control
Contact resistance load specification:
3A @24VDC； 0.6A @125VDC； 3A @120‑240VACAX Control…
Onboard on-site power output: 6 fused power supply branches, 1 dedicated branch without insurance, supporting multi voltage level on-site load power supply AX Control
System backplane power supply: 24-28 VDC Mark VIe I/O pack backplane power supply
Diagnosis: Coil current monitoring, coil open circuit and short circuit fault detection
Terminal: Large size screw terminal block, compatible with 14-24AWG cable
Inter board interface: 4 sets of IDC connectors, compatible with VCCC/VCRC processor boards
Isolation: Electrical isolation between the on-site circuit and the control logic side

environmental conditions
Working temperature: 0~+60 ℃ (inside the control cabinet)
Storage temperature: -40 ° C~+85 ° C
Humidity: 5-95% RH, no condensation
Tolerate power plant cabinet vibration, dust, and electromagnetic interference environment

physical information
Form: Mark VIe I/O-pack rack plug-in PCB terminal board
Weight: Approximately 0.85kg

Typical application scenarios
Mark VI/VIe control systems for gas turbines, steam turbines, and combined cycle power plants. Used for auxiliary electromagnetic valve drive, alarm relay output, auxiliary interlocking circuit, ignition circuit control; Belongs to the general relay output board, not the SIL-3 main protection trip board; The main shutdown protection prioritizes the use of TPROH/TREA-TREG safety links.
