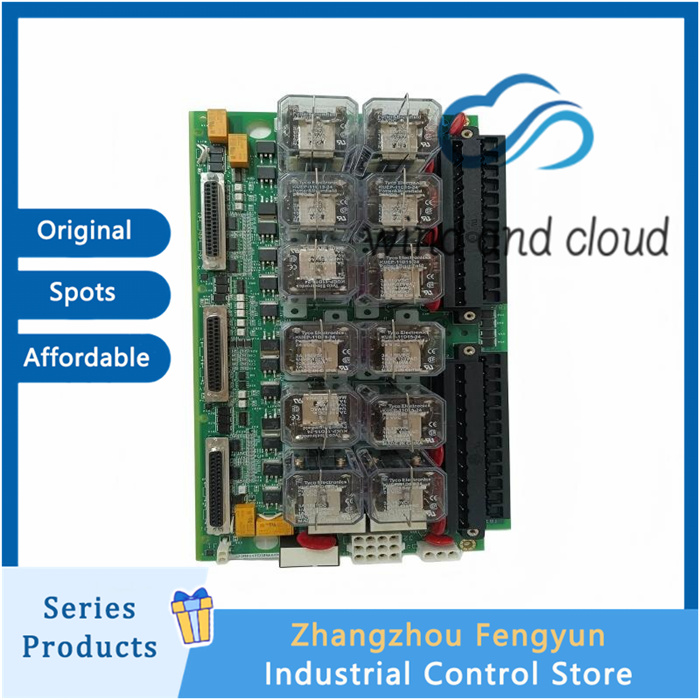

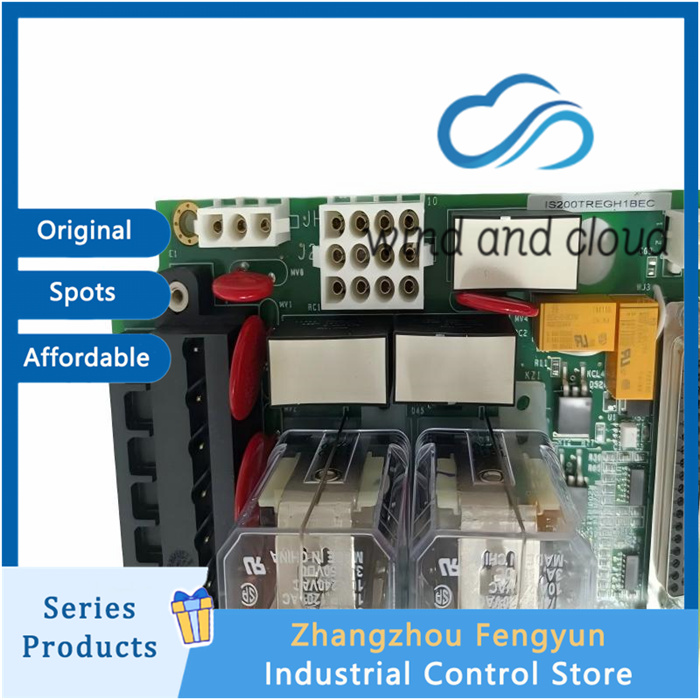

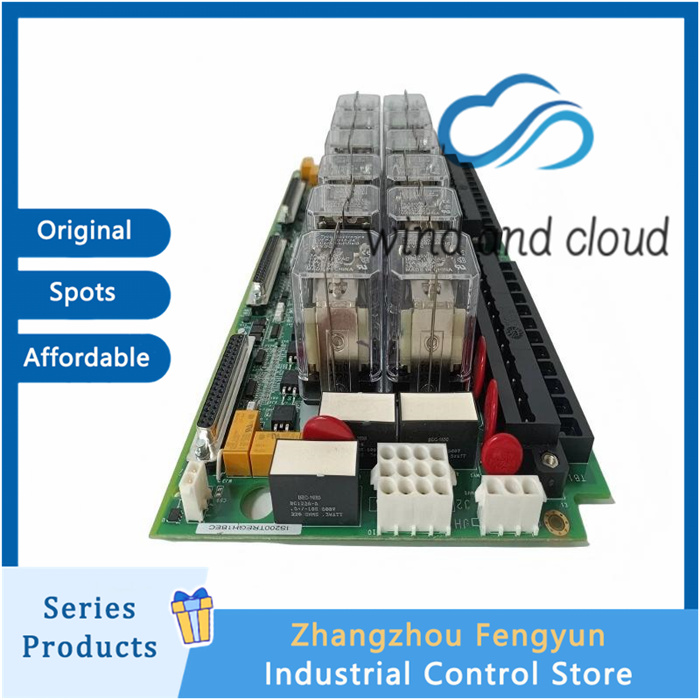

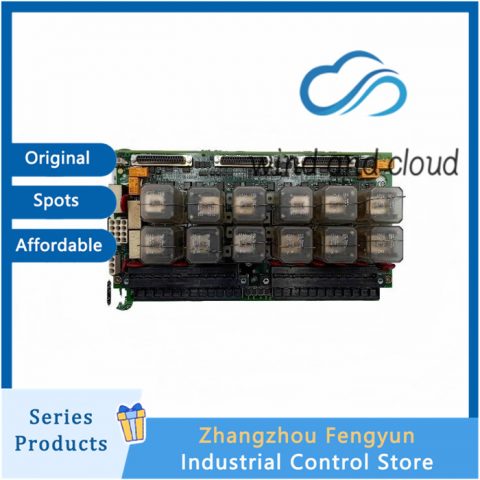

GE IS200TREGH1BEC | TREG Trip Emergency Gate Board |

Core Functionality
Provide controlled positive power output for the emergency trip solenoid valve of the unit, driving up to 3 trip solenoid valve coils; Receive the trip door control signal from the TREA board, cut off the power supply to the solenoid valve in the hardware circuit, and achieve a hard emergency shutdown of the unit.
On board complete circuit hardware diagnosis: open circuit, short circuit, and overcurrent detection of solenoid valve coils; Onboard status LED indicator light, fault information uploaded to ToolboxST software for reading.
PCB conformal coating with built-in MOV surge suppression and EMI filtering to resist strong electromagnetic interference, dust, and vibration environments in power plant cabinets.
Front end spring clamping high current terminal connected to on-site solenoid valve cable; Multiple sets of high-density IDC board connectors are connected to TREA trip relay boards.
Hot swapping is not supported, maintenance and replacement must be performed with power off; Static sensitive devices must be grounded to prevent static electricity during disassembly and assembly.

Electrical Specifications
Backplane system power supply: 24-28 VDC Mark VIe I/O pack backplane power supply
Electromagnetic valve working circuit: supports up to 125VDC trip solenoid valve coil load
Drive channel: up to 3 emergency trip solenoid valve drive circuits
Diagnostic ability: Hardware detection of coil open circuit, short circuit, overcurrent faults
Wiring terminal: Spring clamped pluggable terminal, compatible with 14-24AWG power cables
Inter board interface: high-density IDC ribbon connector, compatible with TREA board
Safety adaptation: belongs to the hardware link of SIL-3 emergency shutdown safety subsystem

Environmental conditions
Working temperature: -30 ° C~+65 ° C (BEC version with wide temperature characteristics)
Storage temperature: -40 ° C~+85 ° C
Humidity: 5-95% RH, no condensation
Tolerate power plant cabinet vibration, dust, and strong electromagnetic interference environment

Physical information
Form: Mark VIe I/O-pack rack plug-in PCB terminal board
Size: 178mm × 330.2mm
Weight: Approximately 0.91kg

Typical application scenarios

Mark ‑ VI/VIe TMR the third mock examination redundant control system for gas turbine, steam turbine and combined cycle power plant. Key components of the hardware emergency shutdown link; Work logic: TREA outputs a trip command → TREG-TRPG circuit cuts off the power supply to the trip solenoid valve → the solenoid valve loses magnetism and the unit stops urgently.
