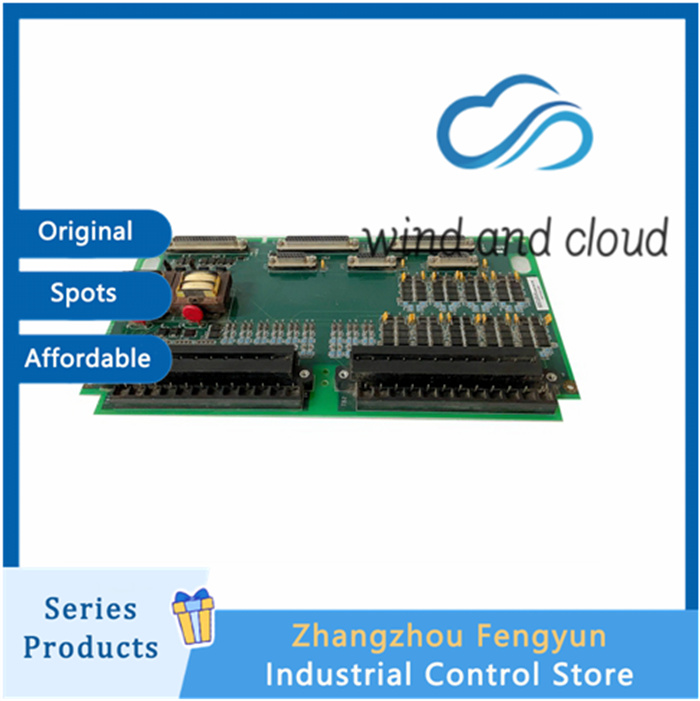

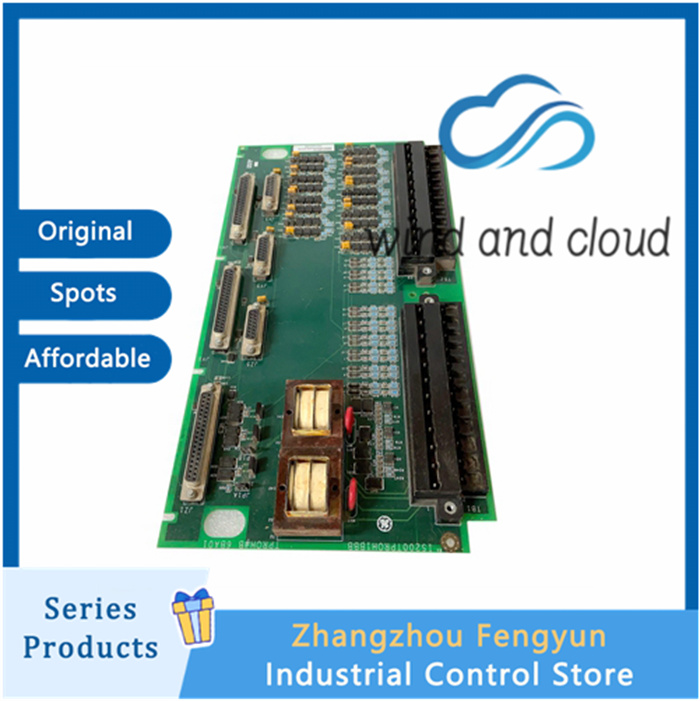

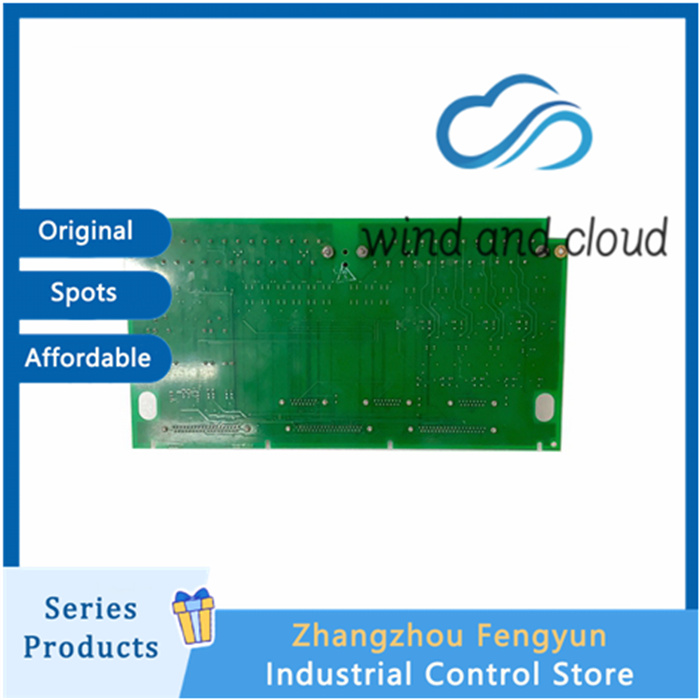

GE IS200TPROH1BBB | TPRO Turbine Protection Relay Output Board |

Product Series: Speedtronic Mark VIe Gas Engine Control System

Core Functionality
Implement the hardware interface for the controller protection logic output to the on-site trip actuator, driving safety critical equipment such as trip solenoid valves, main fuel cut-off circuits, emergency stop interlock circuits, etc.
8 independent Form-C (SPDT single pole double throw) relay output channels, each with relay action feedback feedback feedback. The controller detects relay adhesion, coil faults, and contact failures in real time. Channel faults can alarm and TMR vote to isolate the faulty channel, avoiding false tripping/refusal to trip.
The high-density IDC ribbon connector between boards is connected to the upper protection processor card, and the front-end high current spring crimping terminal block is connected to the on-site cable.
PCB with three anti coating, built-in surge suppression circuit, resistant to strong electromagnetic interference from power plant cabinets.
Hot swapping is not supported, and module replacement requires shutdown and power-off operation.

I/O and Electrical Specifications
Relay channel: 8-channel Form-C SPDT silver alloy contact output
Contact rated capacity: resistive load 5A @ 250VAC; 5A @30VDC
Backboard power supply: 24   VDC Mark VIe I/O pack Backboard power supply
Single block power consumption: maximum 8.5W
Wiring terminal: Spring clamped terminal, compatible with 14-24AWG cable
Inter board interface: Multiple sets of high-density IDC connectors for docking with TPRO processor cards
Safety certification: meets IEC 61508 SIL3 functional safety requirements

environmental parameters
Working temperature: 0~+60 ℃ (inside the control cabinet)
Storage temperature: -40 ° C~+85 ° C
Humidity: 5-95 RH, no condensation
Tolerate the vibration environment of power plant cabinets; Static electricity sensitivity, disassembly and assembly must be grounded to prevent static electricity

physical information
Form: PCB plug-in terminal board, Mark VIe I/O pack rack slot installation
Weight: Approximately 0.6kg

Typical application scenarios
Mark VIe TMR control system for gas turbines, steam turbines, and combined cycle power plants. Specially designed to handle the highest level of safety trip circuits such as emergency shutdown, fuel trip, lubricating oil protection, overspeed protection, etc., it is a key hardware board of the gas turbine protection system.
