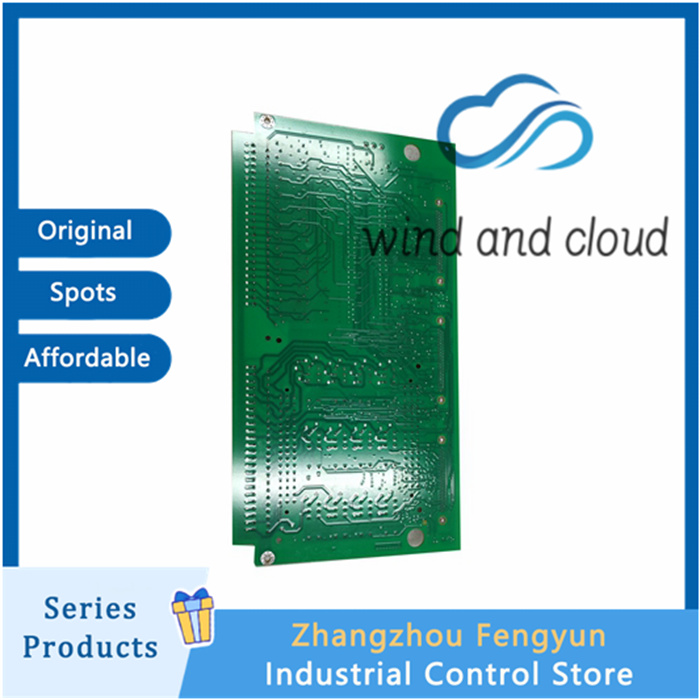

GE IS200TDBTH6ABC | Discrete Bridge Terminal Board |

Product type: Digital Bridge Terminal Board (Discrete I/O Terminal Board), used in conjunction with PDIO Digital I/O Processor Card, interface board between on-site switch devices and controllers

Core Functionality
On site discrete switch signal wiring terminal interface, connected to limit switches, relay contacts, solenoid valves, local buttons and other on-site switch equipment.
Complete signal conversion, surge suppression, EMI protection, protect the backend PDIO I/O processing card, and filter transient high voltage interference in the field circuit.
Support TMR the third mock examination redundant system architecture, which can be used for gas turbine/steam turbine interlocking, tripping, auxiliary logic circuit.
Onboard relay, MOV varistor transient absorption circuit, equipped with circuit diagnosis, supporting SOE event timing recording signal path.
By connecting high-density ribbon connectors between boards to PDIO processor modules, signal routing and distribution between on-site contact signals and controllers can be achieved.

I/O channel specifications
Input: 24 grouped isolated contact inputs, rated 125VDC contact signal, dry contact input as the main input
Output: Built in onboard relay output channel, used to drive on-site solenoid valves and small contactor loads
Isolation: Channel grouping electrical isolation, surge suppression (MOV metal oxide varistor)
Terminal: European style pluggable terminal block, convenient for cabinet wiring and maintenance
Inter board connectors: Multiple sets of high-density IDC connectors, compatible with PDIO I/O packs

Electrical parameters
System power supply: 28 VDC Mark VIe cabinet backplane power supply
Contact input rated: up to 125VDC
Relay output: Onboard Panasonic signal relay, suitable for low-power logic drive
Transient resistance: Built in MOV varistor to suppress on-site induced surges
Static sensitive devices must be disassembled and grounded to prevent static electricity

environmental conditions
Working temperature: 0-60 ℃ (inside the control cabinet)
Storage temperature: -40 ° C~+85 ° C
Humidity: 5-95% RH, no condensation
Tolerate power plant cabinet vibration, gas turbine and steam turbine control cabinet environment

physical information
Form: PCB terminal board, rack slot installation
Weight: Approximately 0.9 kg

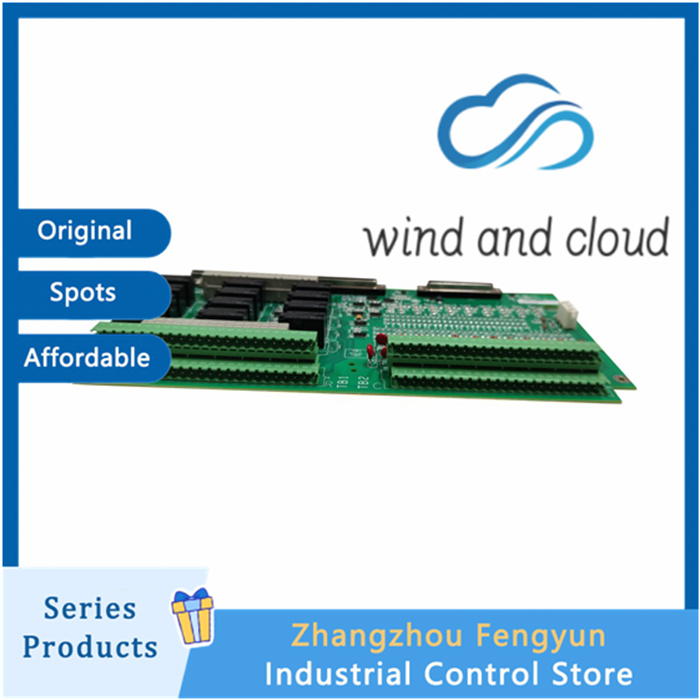

On board components: onboard relay array, MOV varistor, status LED indicator light, used for intuitive viewing of circuit status

Typical application scenarios

The Mark VI/VI control system for gas turbines, steam turbines, and combined cycle power plants processes discrete digital signals such as interlock trip signals, limit switches, auxiliary switch values, solenoid valve control, and local operation buttons.
