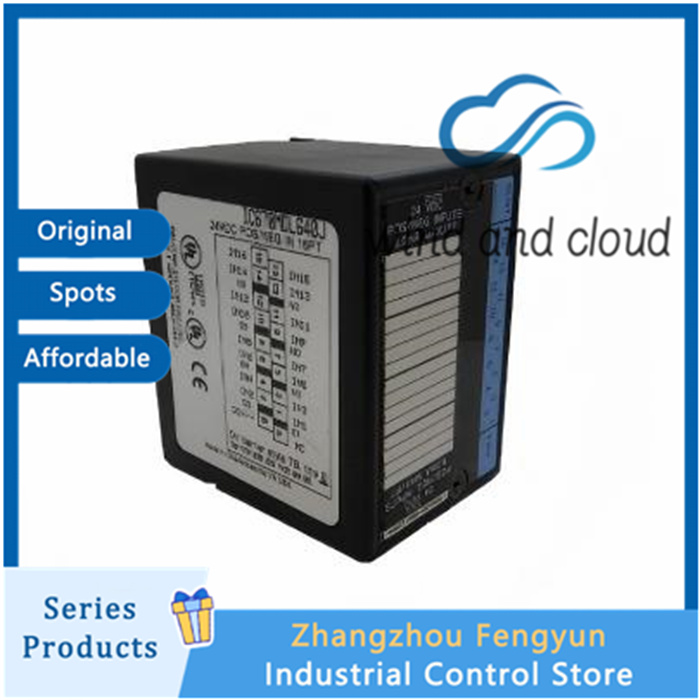

GE IC670MDL640｜Fanuc Input Module In Stock｜

Core electrical parameters
Channel: 16 point DC input, grouped and grounded (not isolated between channels)
Rated input: 24VDC, allowable range 10-30VDC
Conduction condition: ≥ 10VDC ON; ≤5VDC OFF
Input current per point: approximately 7mA@24VDC
Backboard power consumption: 75mA (6.5V backplane)
Isolation: On site and logic side photoelectric isolation, 1500VAC 1-minute withstand voltage; There is no isolation between channels
Data: 16 inputs occupy 2 bytes and are mapped into the Genius I/O buffer
LED: power indicator light+16 channel status light
Environment: Operating temperature range of 0 ℃ to+55 ℃; Storage -40 ℃ to+85 ℃; UL、CE
Function: Supports hot plugging and unplugging; Module identification and fault diagnosis reporting to BIU/CPU
Main functions
1. Collect 24VDC switch signals: NPN/PNP sensors, proximity switches, buttons, relay contacts.
2. Built in input filtering to suppress on-site interference pulses and reduce false tripping points.
3. Hot swappable: Continuous Genius bus, modules can be replaced online.
4. The backplane transmits signals to the BIU or local CPU, and sends them to the upper PLC (90-30/90-70/RX3i) through the Genius bus.
Typical application scenarios
1. Distributed remote I/O station in the factory, with ordinary 24V sensor signal acquisition.
2. Metallurgy, water treatment, power plant auxiliary control, with a large amount of switch feedback.
3. Paired with IC670GBI002 (24VDC power supply BIU), the entire station is equipped with a unified 24V DC system.
