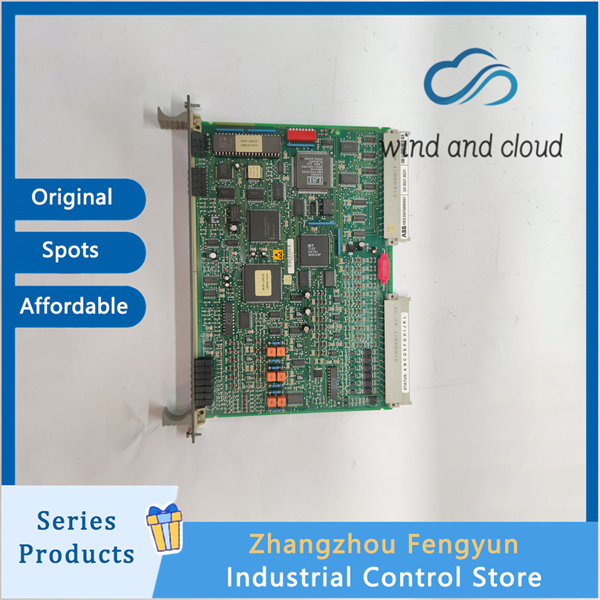

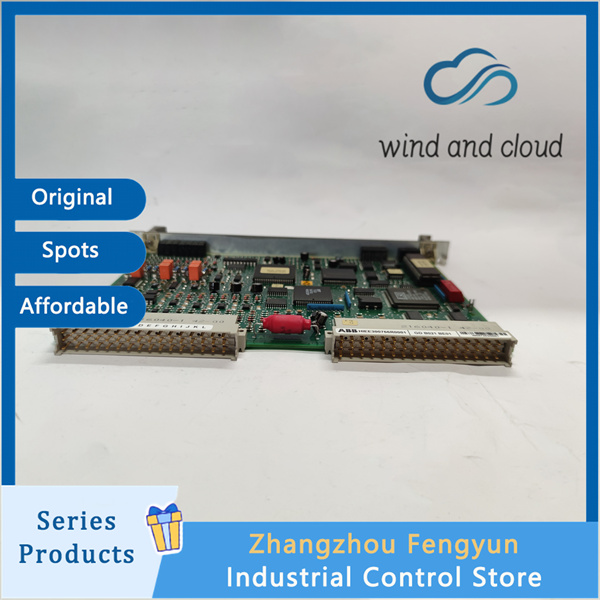

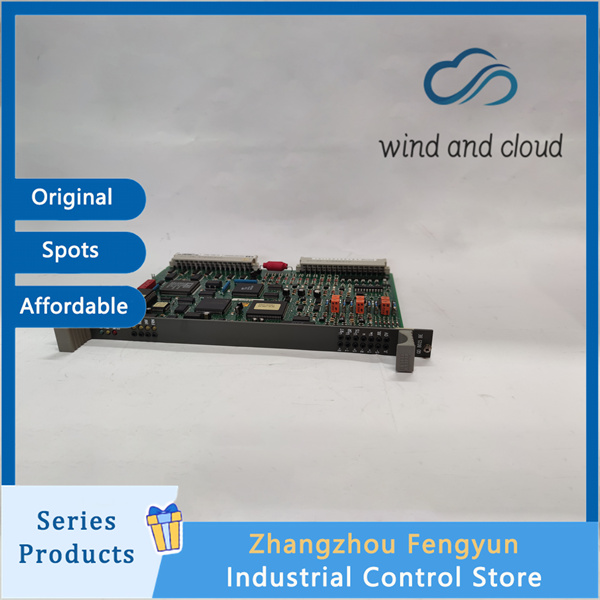

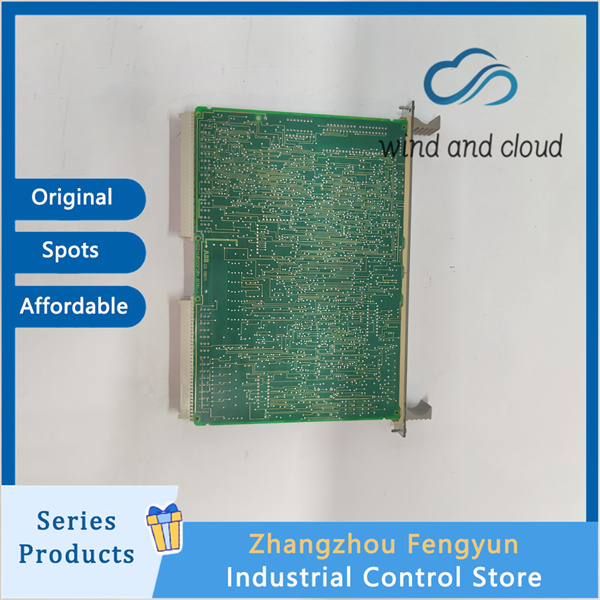

GDB021BE05 HIEE300766R0005 DCS/PLC ▏ Communication Card

$5,555.00

In stock

Manufacturer: ABB
Model: GDB021BE05 HIEE300766R0005

✔ Can be calibrated on the same day
✔ Provide 1-year warranty
✔ Free ground transportation

Our company specializes in importing industrial control spare parts, and we can help you transfer most of them from abroad. Due to the wide variety of models, we were unable to upload physical pictures one by one!
If the model you need cannot be found in our store, please feel free to inquire at any time.

Title: A Deep Dive into the Power and Control Systems of GMD Systems

Introduction: This article provides an in-depth look at the power and control systems of GMD (Gearless Mill Drive) systems. We will explore the components, hardware, and software that contribute to the efficient and reliable operation of these systems.

1. Power Part of the Drive Systems:

  • Converter Transformers:
    • Three converter transformers with wyedelta connection for 12-pulse operation.
    • Fed from a 23 kV bus through the main switchgear.
  • Power Cycloconverter:
    • Composed of two full-wave bridge groups in anti-parallel connection.
    • Bridges consist of 6 power thyristors each, with a snubber network system and failed thyristors detection.
  • Synchronous Ringmotor (GMD):
    • Known as “wrap-around motor” or “ringmotor.”
    • Rotor composed of individual poles mounted on the mill flange.
    • SAG mill motor has 72 poles, and ball mill motors have 56 poles.
  • Excitation Transformer and Converter:
    • Excitation transformer fed at 4.16 kV.
    • Excitation converter with full-wave control.
  • Protection System:
    • Over-voltage protection for the cycloconverter inlet and motor.
    • Basic charge system for the cycloconverter.
  • Cooling System:
    • De-ionized water used for cooling thyristors, resistors of snubber networks, and basic load.

GDB021BE05 HIEE300766R0005 DCS/PLC ▏ Communication Cardillustration

GDB021BE05 HIEE300766R0005 DCS/PLC ▏ Communication Card

2. Controller of the Drive Systems:

  • Control Hardware:
    • PSR 2 controllers for cycloconverters, designed for high-power drives.
    • Communication through a 16-bit parallel communication bus B448.
    • Input/output cards (UAC326, UDA327, GDB021) for signals and pulse generation.
  • Control Software:
    • Programming in FUPLA 400, a high-level graphic or function block diagram language.
    • Divided into CLUSTERS called INTERRUPTS with defined cycle times.
    • Incorporates signals measured in minor cycle time clusters and handles fundamental activities such as commutation of cycloconverter bridges, generation of sinusoidal current for internal control, protections, etc.

GDB021BE05 HIEE300766R0005 DCS/PLC ▏ Communication Cardillustration1

GDB021BE05 HIEE300766R0005 DCS/PLC ▏ Communication Card

Conclusion: Understanding the intricacies of the power and control systems of GMD systems is essential for ensuring their optimal performance. The combination of advanced hardware components and sophisticated control software contributes to the reliability and efficiency of these drive systems in various applications.
