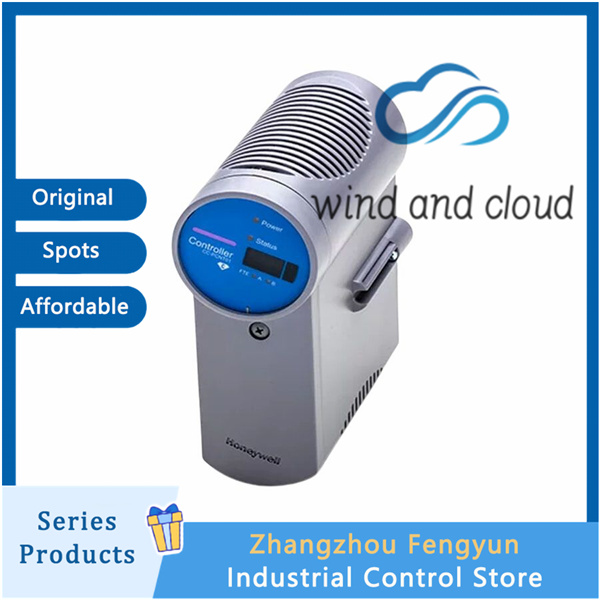

Honeywell CC-PCNT02｜Controller Module｜

CC-PCNT02

Controller Core
Processor: 32-bit high-performance RISC real-time CPU
Operating environment: Honeywell CEE deterministic control engine
Control cycle: 10ms/20ms optional
Redundancy: 1:1 module level thermal redundancy, switching time<10ms
Communication: Dual redundant I/O Link bus, compatible with C-series I/O modules
Pulse counting function (PCNT02 core)
Channel: 8 independent high-speed pulse counting channels
Signal type: 24VDC differential/single ended TTL、 dry contact
Maximum frequency: 1MHz
Counting modes: increasing/decreasing/orthogonal AB phase, frequency measurement, period measurement
Counting bits: 32 bits (large counting range)
Accuracy: ± 1 pulse
Channel independent isolation, single channel failure does not affect the overall system
Expansion capability
Support external CC series analog/switch I/O, CC-IP0101 communication gateway
Supports Modbus TCP, Profinet, UCN for factory wide control network
Working temperature: -20 ℃~+60 ℃ (industrial wide temperature range)
Storage temperature: -40 ℃ to+85 ℃
Humidity: 5% to 95% RH, no condensation
Protection: Installation inside IP20 cabinet
