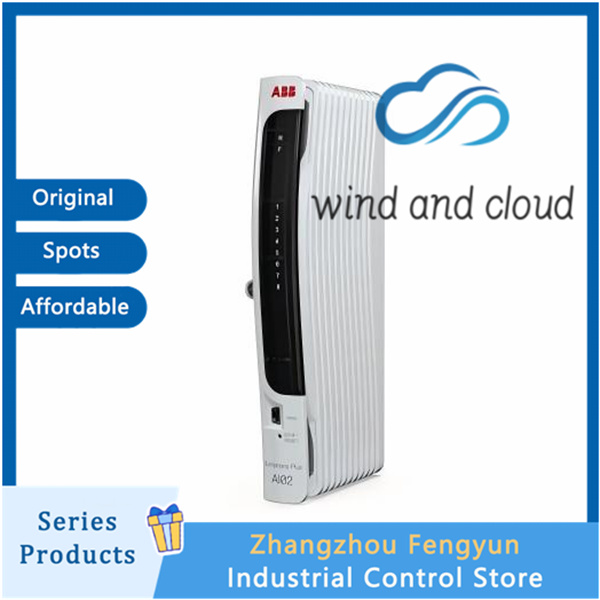

AI02J
Channels and Signals
16 independent analog inputs, isolated in one group for the entire module (1500V AC/1min)
Single channel software options: 4-20mA (two-wire loop power supply), 1-5VDC
Built in 1 HART modem, supporting multi-point HART instruments
Single channel can read up to 4 sub variables, with a maximum of 24 HART sub variables for the entire module
Accuracy and Scanning
A/D: 12~16 bits with polarity, full range accuracy ± 0.1% FS
Full module refresh cycle: 100ms (better than AI01’s 180ms)
Wire breakage detection: 4-20mA circuit quickly alarms within 5 seconds
Channel current limit of 96mA, automatic short-circuit protection, anti burn transmitter and card components
Electrical machinery
Backboard 24VDC power supply, typical 100mA, power consumption ≈ 2.4W
Size: 190 (H) × 27 (W) × 106 (D) mm, net weight 240g
Supporting base: HBS01-FPH (horizontal installation), VBS01-FPH (vertical installation), base ordered separately
Support hot plugging, IP20 protection, industrial wide temperature range -20 ℃~+60 ℃
