5X00500G01
Product Overview

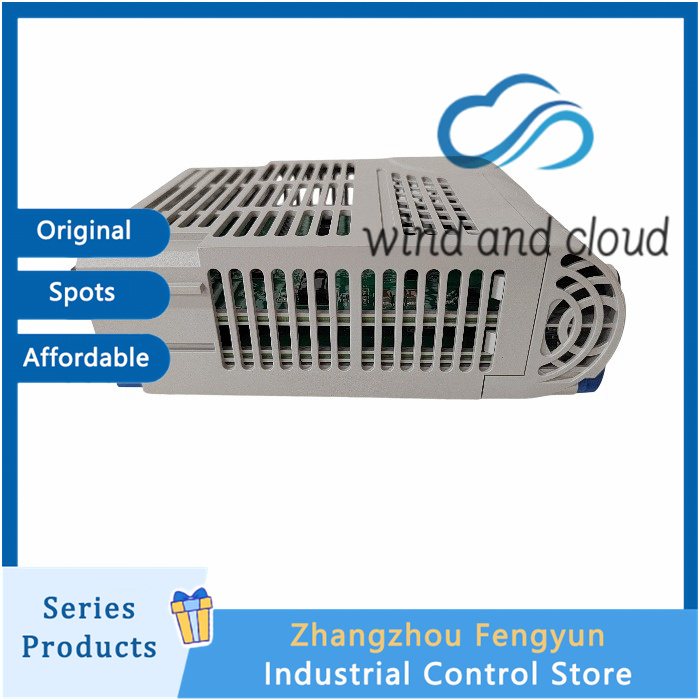

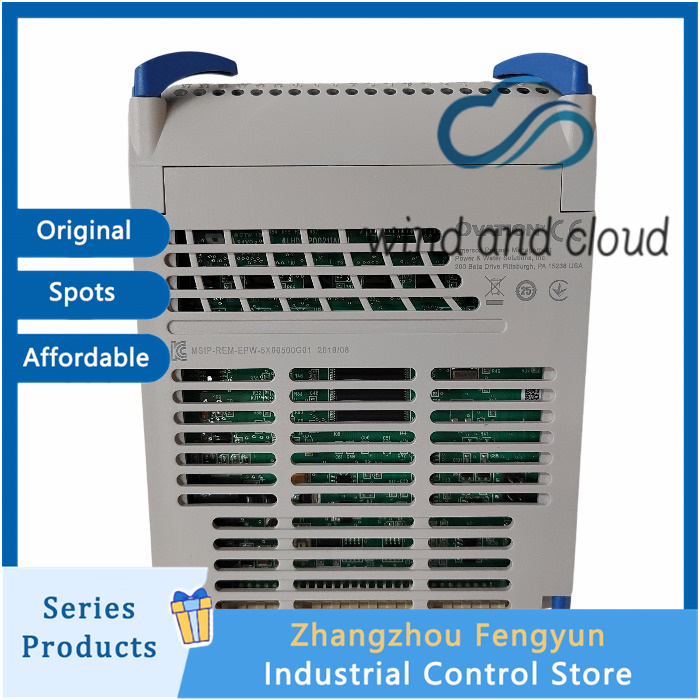

The Emerson 5X00500G01 is an Ovation 32-channel digital output module designed for industrial distributed control system (DCS) applications. It provides discrete output signals for controlling compatible field devices in industrial process automation environments.
As part of the Emerson Ovation control system product family, the 5X00500G01 is intended for applications that require multiple digital output channels in a compact module configuration. Depending on the system design, digital outputs can be used to switch compatible relays and other field loads in response to control system commands.
For industrial maintenance engineers, system integrators, and automation spare parts buyers, verifying the complete part number is essential when sourcing replacement equipment. The Emerson 5X00500G01 should be checked against the installed I/O base, field power supply, wiring configuration, and application requirements before installation.
Contact us to inquire about the availability, condition, technical documentation, and pricing of the Emerson 5X00500G01 digital output module.
Key Product Information
- Brand: Emerson
- Product Family: Ovation
- Model Number: 5X00500G01
- Product Type: 32-Channel Digital Output Module
- Output Configuration: 32 current-sourcing digital outputs
- Field Output Voltage: Positive 24 VDC switching
- Maximum Output Current per Channel: 500 mA
- Maximum Total Output Current: 2 A
- Compatible I/O Base: 5X00497G01, subject to configuration verification
- Application: Industrial automation and distributed control systems
Key Features and Benefits
High-Density 32-Channel Digital Outputs
The Emerson 5X00500G01 provides 32 digital output channels for compatible Ovation DCS installations. This configuration supports multiple discrete control signals within a single module.
24 VDC Field Load Switching
The module switches positive 24 VDC field power to compatible external loads. Depending on the application and electrical requirements, these outputs may be used with relays and other supported industrial devices.
Output Current Capability
According to the available product datasheet, each output channel can source up to 500 mA, with a maximum total output current of 2 A. Individual channel limits and the overall current budget must be respected when designing or maintaining the connected loads.
Field-to-Logic Galvanic Isolation
The product documentation specifies ±1000 VDC galvanic isolation between field and logic circuits. This isolation specification should not be interpreted as a field operating voltage rating or as a substitute for the manufacturer’s installation and safety requirements.
Hot-Swap Capability and Diagnostics
The product datasheet identifies hot-swap capability, field power detection, electronic identification, and LED status indicators for module operation and individual output channels.
Hot swapping should only be performed when permitted by the installed system configuration and applicable manufacturer procedures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Product Series | Ovation |
| Model Number | 5X00500G01 |
| Module Type | Digital Output Module |
| Number of Channels | 32 |
| Output Type | Current-sourcing digital outputs |
| Field Output | Positive 24 VDC switching |
| Maximum Current per Channel | 500 mA |
| Maximum Total Output Current | 2 A |
| Field-to-Logic Isolation | ±1000 VDC |
| I/O Base | 5X00497G01 |
| Hot-Swap Capability | Supported according to product datasheet |
| Diagnostic Indicators | Power, communication, external fault, internal fault, and individual output status |
| Product Condition | Confirm with supplier before ordering |
Specifications should be verified against the applicable manufacturer documentation and the exact hardware revision before installation or replacement.
Applications of the Emerson 5X00500G01
The Emerson Ovation 5X00500G01 digital output module can be used in compatible industrial control applications requiring discrete output signals.
Typical application areas include:
- Industrial process automation
- Power generation control systems
- Relay and compatible field load control
- Industrial equipment status and command interfaces
- Distributed control system maintenance
- Replacement of existing Ovation digital output hardware
- Industrial automation spare parts inventory
The specific field devices and output assignments depend on the control system design, electrical load requirements, and project configuration.
Compatibility and Installation Notes
The 5X00500G01 is documented for use with the 5X00497G01 four-module I/O base. Before purchasing or replacing the module, confirm the following:
- The complete part number and hardware revision.
- The correct I/O base and terminal wiring arrangement.
- The availability and suitability of the cabinet’s 24 VDC field power supply.
- The maximum current for each output and the total load.
- The wiring polarity and requirements for inductive loads.
- The configured output behavior during communication timeouts.
- The channel mapping and configuration of the existing Ovation system.
Incorrect wiring, excessive loading, or incompatible hardware may cause malfunction or damage. Follow the applicable manufacturer’s installation documentation.
How to Buy Emerson 5X00500G01
When requesting a quotation, please provide:
- Required quantity.
- Preferred product condition, such as new, unused surplus, or refurbished, subject to availability.
- Destination country.
- Any specific hardware revision or documentation requirements.
- Your expected delivery schedule.
We can review your inquiry and confirm available purchasing options, product condition, shipping arrangements, and quotation details.
Frequently Asked Questions
What is the Emerson 5X00500G01?
The Emerson 5X00500G01 is an Ovation 32-channel digital output module used in compatible industrial distributed control system applications.
What is the output voltage of the 5X00500G01?
The product documentation describes positive 24 VDC field output switching. Verify the applicable electrical specifications before connecting field loads.
How many output channels does the 5X00500G01 have?
The module has 32 digital output channels.
What is the maximum output current?
The documented maximum is 500 mA per channel and 2 A total across the module. Both limits must be observed when calculating the connected load.
Which I/O base is used with the 5X00500G01?
The product datasheet identifies the 5X00497G01 four-module I/O base. Confirm the installed hardware and wiring configuration before replacement.
Does the module support hot swapping?
The available datasheet lists hot-swap capability. Always verify that the specific system configuration and applicable procedures permit the intended replacement operation.
How can I get a quotation for the 5X00500G01?
Send your required quantity, destination country, and preferred product condition to request a quotation and confirm current availability.
Request a Quote for Emerson 5X00500G01
Looking for an Emerson Ovation 5X00500G01 32-channel digital output module for your industrial automation system?
Contact us with your part number and purchasing requirements to inquire about pricing, availability, product condition, and delivery options.
Manufacturer: Emerson
Product Family: Ovation
Part Number: 5X00500G01
Product Type: 32-Channel Digital Output Module
Request a quotation today and verify the correct hardware for your application.
