5X00106G01

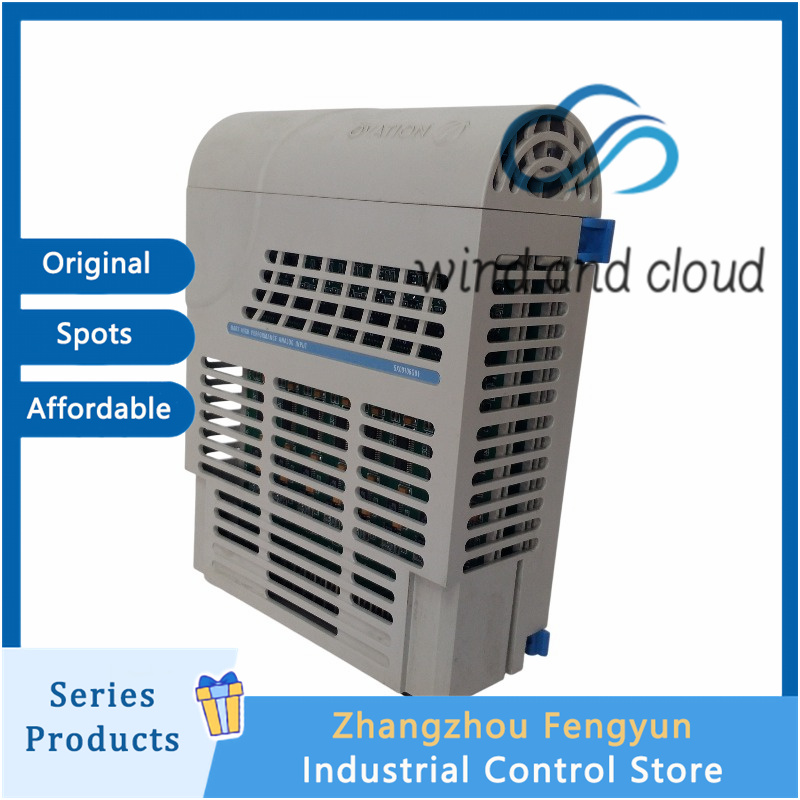

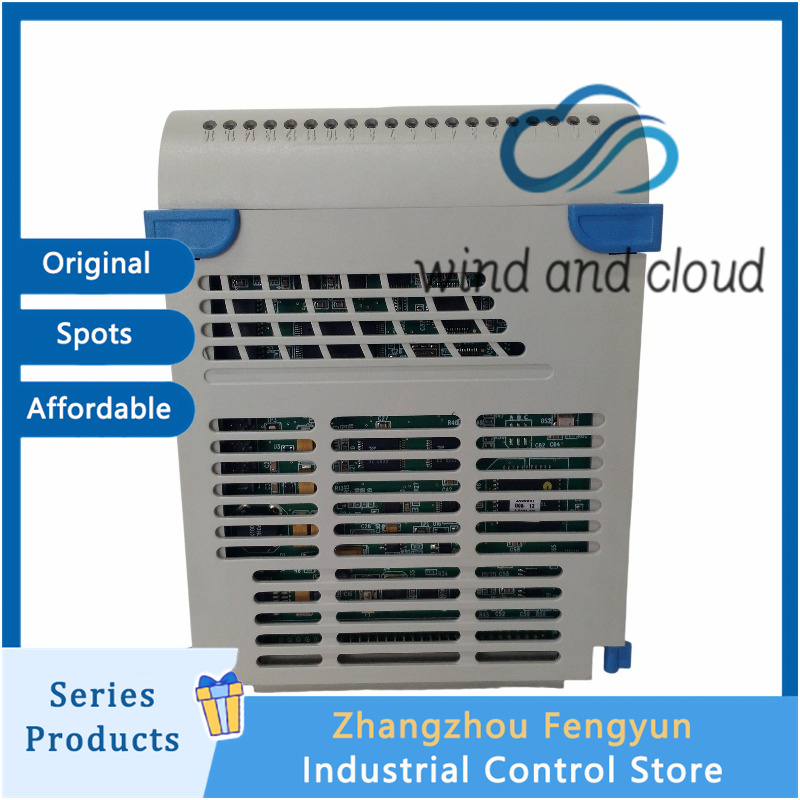

The 5X00106G01 is the electronic module (EMOD) of Emerson Ovation DCS HART high-performance analog input subsystem, designed to collect 4-20mA current signals from HART smart transmitters and carry out bidirectional HART digital communication on the same signal loop. It converts analog process variables into high-resolution digital data for Ovation DPU controller, supporting remote configuration, diagnostics and health status reading of field smart instruments. This EMOD must work with matching personality module 5X00109G01, which provides channel fuses and configurable jumpers for field-powered or local-powered transmitter setup.
It features 8 galvanically isolated input channels, with 14-bit A/D conversion. The input range covers 2.5mA to 25mA, with built-in under-range and over-range alarm checking. Two sampling modes are available: 20 samples per second for 60Hz noise rejection and 25 samples per second for 50Hz noise rejection. Channel-to-channel galvanic isolation minimizes cross-talk and enhances electromagnetic noise immunity in power plant and petrochemical control cabinets. Each channel integrates independent HART transceiver with optical isolation, enabling stable digital HART communication superimposed on the 4-20mA analog loop without interfering with analog measurement.
The module adopts standard Ovation rack-mounted architecture and supports hot-swap operation. Maintenance technicians can replace the faulty module online without shutting down the entire I/O rack, cutting plant downtime during spare part replacement and system maintenance. Real-time module health monitoring and LED status indicators help engineers quickly identify module failure, loop fault or HART communication abnormality.
Typical applications include thermal power plants, combined cycle power stations, petrochemical complexes, refineries and water treatment facilities. Widely used for Ovation DCS maintenance, spare replacement and system upgrade projects to monitor pressure, flow, liquid level and temperature from HART smart transmitters.
Key Features
- Part number: 5X00106G01, Ovation HART high-performance analog input EMOD
- 8 galvanically isolated channels for 4-20mA HART smart transmitters
- Integrated HART transceiver for bi-directional digital communication on current loop
- 14-bit high precision ADC, input range: 2.5–25mA, under/over-range detection
- Two sampling rates: 20 SPS (60Hz rejection) /25 SPS (50Hz rejection)
- Requires personality module 5X00109G01 for fusing and jumper configuration
- Channel galvanic isolation, low crosstalk and strong EMI suppression
- Hot swappable design for non-stop online maintenance on Ovation I/O rack
- Built-in module diagnostics and LED fault status indication
- Standard Ovation I/O backplane rack mounting, fully compatible with Ovation DCS
- Support remote HART instrument parameter setup and predictive diagnostics
- Authentic spare part for legacy Ovation DCS maintenance and retrofit
Technical Specifications Part Number: 5X00106G01
Brand: Emerson / Westinghouse Ovation
Product Type: HART High Performance Analog Input Electronic Module (EMOD)
Channels: 8 galvanically isolated analog input channels
Input Range: 2.5mA ~ 25mA (4-20mA loop measurement)
ADC Resolution: 14-bit Accuracy: ±0.1% full scale @25℃
Sampling Rate: 20 SPS (60Hz) / 25 SPS (50Hz)
Input Impedance: 300 Ω
Matching Personality Module: 5X00109G01
Mounting: Ovation standard I/O rack backplane installation
Hot Swap: Supported
Diagnostics: Module health monitoring, loop under/over range, HART communication status
Ambient Humidity: 5%~95% non-condensing
Application System: Emerson Ovation Distributed Control System
Package & Supply Information Condition: New / Refurbished available upon request Warranty: 12 months warranty Packing: Anti-static packaging + foam + export carton Lead Time: In stock, 3–7 working days delivery Shipping: DHL, FedEx, UPS, air freight or sea freight Payment: T/T, other terms negotiable
We supply full series Ovation spare parts including EMOD electronic modules, personality modules, power supplies, digital I/O and analog I/O cards. Please contact our sales team for datasheet, cross reference part numbers or bulk quotation of 5X00106G01.
