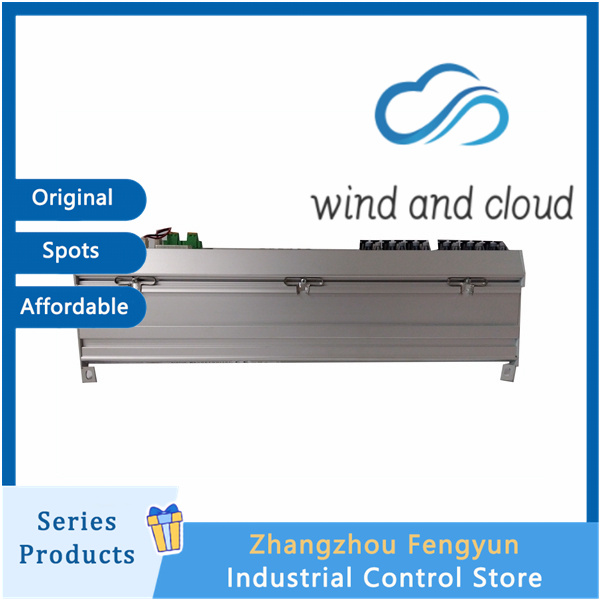

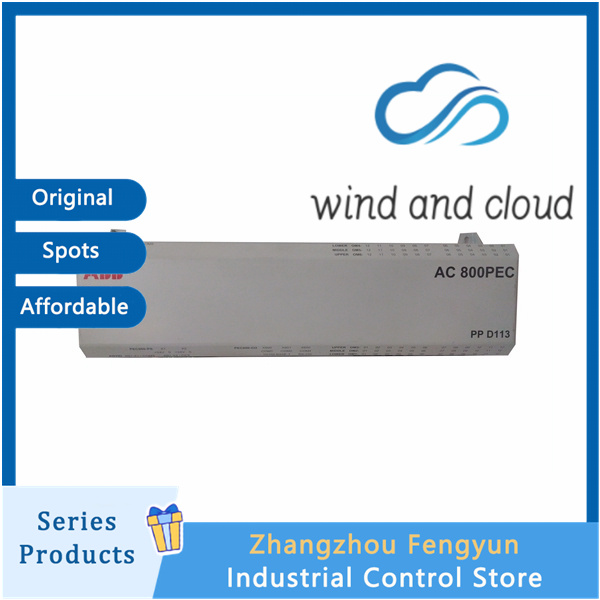

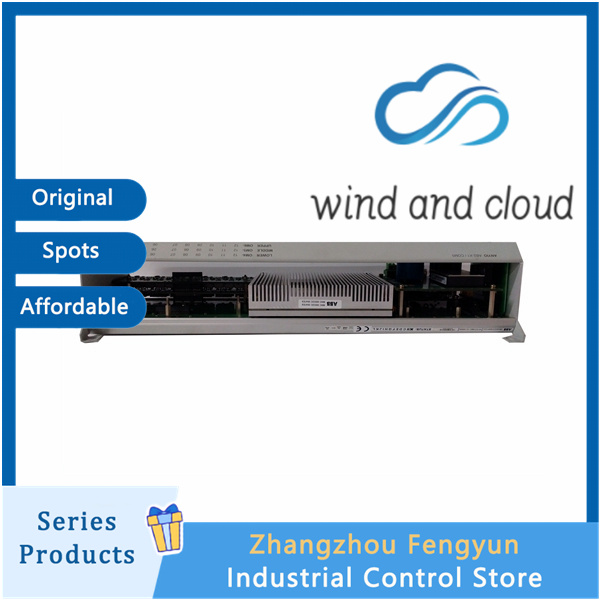

ABB 3BHE023784R1023 PP D113 B01-10-150000｜Controller Module｜

3BHE023784R1023 PP D113 B01-10-150000

Specification
Processor: PowerPC 603e @ 400MHz+FPGA (hard real-time control)
Memory: 256MB SDRAM, 64MB Flash
Control cycle: ≤ 25 μ s (microsecond level high-speed closed-loop)
Communication interface: 2 x Ethernet RS232、CAN、 Fiber optic synchronization
I/O: 8-way digital input, 6-way digital output, expandable analog quantity
Power supply: 24V DC (± 20%)
Temperature: -10 ℃~+60 ℃, Three proof coating
Weight/Size: Approximately 1kg, standard 3U module

Function
High speed closed-loop control (core)
Generator excitation (UNITOL): AVR automatic voltage regulation, PSS power system stabilizer
Medium voltage frequency conversion (ACS6000/5000): precise control of high-power motor speed/torque
Power grid equipment: HVDC converter, SVC static reactive power compensation SVG
Dual architecture parallel processing
CPU: Process Control, Logical Operations, Communication Management
FPGA: nanosecond pulse triggering, IGCT/IGBT gate control, fault hard protection
Improve protection and fault diagnosis
Real time monitoring of overvoltage/overcurrent/overheating/demagnetization/short circuit
Fault fiber optic upload+hard contact alarm, quickly cut power circuit
Black box recording for easy traceability and analysis
Redundancy and System Integration
Support dual machine hot standby redundancy, switch without disturbance
Seamless integration with ABB 800xA DCS, Symphony Plus, excitation/frequency conversion/converter systems

Application
Electricity: Excitation of thermal/hydroelectric/nuclear power generators, HVDC converter stations SVC/SVG
Industry: Steel rolling/mining/cement medium voltage frequency conversion, high-power transmission
New energy: wind/photovoltaic grid connected inverters, energy storage inverters (PCS)
