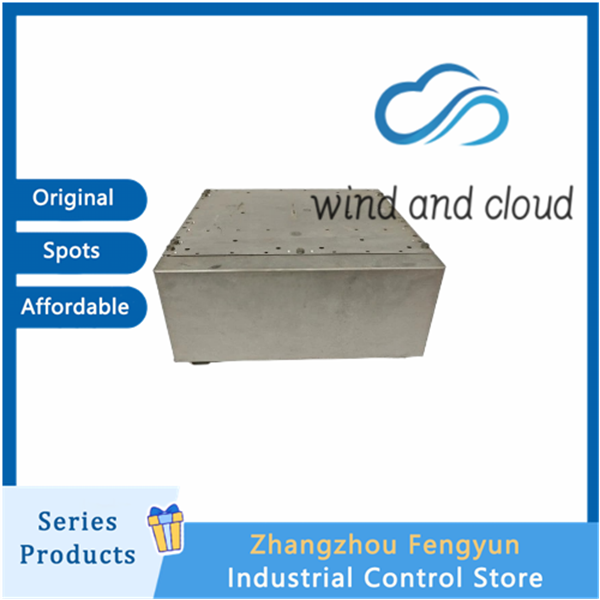

ABB 12KG04N-V0002 3EGM031400R0002｜Controller｜

1. On site start stop speed regulation (main control operation)
Local start, stop, emergency stop; Forward and reverse switching
Set frequency/speed on the panel buttons and manually adjust the speed locally
Local/remote mode switching: switch to local panel control or DCS upper remote control.2. Real time display of operational data
LCD digital display: motor voltage, current, output frequency, speed, power, bus voltage, and operating hours.
Panel LED: ready, running, fault, alarm status indicator lights.

3. Parameter configuration and debugging
Browse and modify internal parameters of the frequency converter (motor nameplate, ramp acceleration and deceleration, protection threshold, communication parameters)
Parameter backup, recovery, on-site debugging and tuning.

4. Fault inquiry and diagnosis
Real time pop-up of fault codes (overcurrent, overvoltage, overload, IGBT fault, etc.)
Retrieve historical fault records and parameters at the time of fault occurrence for easy maintenance.

5. Internal bus communication
Communicate with the AC800PEC main control board through a dedicated serial bus to issue control commands and upload real-time device data.

ABB 12KG04N-V0002 3EGM031400R0002｜Controller｜
