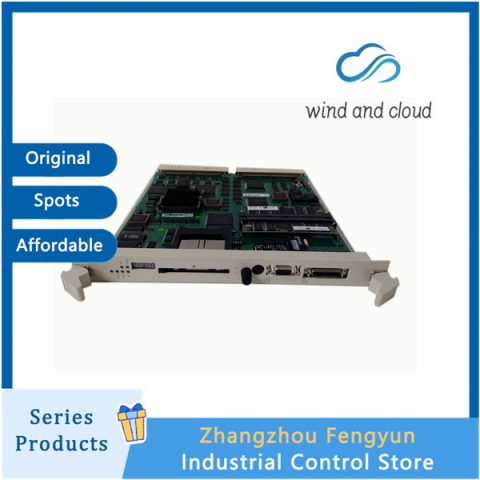

UNITROL 1020 CPU spare parts ▏ABB module ▏Robot system

$5,555.00

In stock

Manufacturer: ABB
Model: UNITROL 1020

✔ Can be calibrated on the same day
✔ Provide 1-year warranty
✔ Free ground transportation

Our company specializes in importing industrial control spare parts, and we can help you transfer most of them from abroad. Due to the wide variety of models, we were unable to upload physical pictures one by one!
If the model you need cannot be found in our store, please feel free to inquire at any time.

Part Number: UNITROL 1020 Family/Series: AC800M
Product Type: PLC Communication Module Category: Home/DCS/DCS Systems/Profibus Module
Plance of Origin: Made in USA Product Status: Popular Product

Title: Configuring Redundant Optical Rings in Fieldbus Networks

Introduction: Ensuring the seamless functioning of a segmented field bus network is critical for optimal performance. This article explores the steps and conditions required to establish a redundant optical ring configuration, enhancing network reliability.

UNITROL 1020 CPU spare parts ▏ABB module ▏Robot systemillustration

UNITROL 1020 CPU spare parts ▏ABB module ▏Robot system

Automatic Segmentation Recognition:

    • Segmentation is automatically lifted when both modules confirm the correct functioning of the segmented field bus network, facilitated by test frames.
    • The network then self-organizes into a ring structure.
  1. Conditions for Network Configuration:
    • Fulfilling specific conditions is crucial for the successful operation of the network.
    • Conditions include settings for the operating mode (“Redundant optical ring”) on both optical ports of optical link modules (Hirschmann).
  2. Ring Formation Guidelines:
    • All modules within a ring must be interconnected via fiber lines, with no inclusion of an RS485 bus line.
    • In case of redundancy events, such as a line break, a brief switching time occurs, impacting data transmission.
    • To ensure a smooth transition, setting the frame repeat (Retry) on the PROFIBUS master to at least 3 is recommended.
  3. Post-Error Handling:
    • After correcting an error, no frames should be present in the network during the transformation of the optical line back into an optical ring.
    • This precaution prevents potential disruptions that may arise when a master attempts to address a non-existent device.
  4. Configuration Requirements for Redundant Optical Ring:
    • The parameter HSA (Highest Station Address) must be set to a value at least one greater than the highest address of a subscriber in the bus segment.
    • The slot time should be adjusted to approximately twice the value required in a non-redundant network.
  5. Avoiding Configuration Failures:
    • Failure to meet the above requirements can lead to the optical line not closing into a redundant optical ring after segmentation.

UNITROL 1020 CPU spare parts ▏ABB module ▏Robot system

Conclusion: Configuring redundant optical rings in fieldbus networks requires careful consideration of settings and conditions. Adhering to these guidelines ensures a robust network that can seamlessly recover from errors and interruptions, providing enhanced reliability and performance.

Zhangzhou Fengyun’s main products include ABB, GE, Bently Nevada Bentley, ICS TRIPLEX, Honeywell, Schneider, EPRO, yokogawa Yokogawa, Woodward, EMERSON, Emerson, and Invensys TRICONEX, which have abundant inventory, fast delivery, and reliable quality.
