ABB TP830｜Base Module，In stock｜

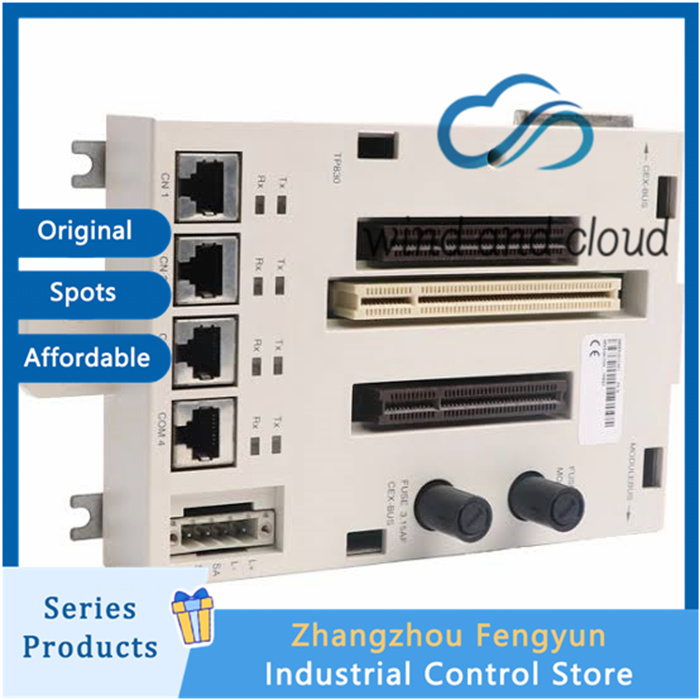

The ABB TP830 (Order Code: 3BSE018114R1) is a Baseplate / Terminal Unit for the AC 800M controller family in ABB System 800xA.
It acts as the primary backplane mounting base for non-redundant CPU modules (such as PM851, PM856, PM860, PM861, PM864, and PM865), housing the power terminals, onboard network ports, serial interfaces, and expansion bus connectors.
Technical Specifications
Feature Specification
Manufacturer ABB
Model Code TP830
Part / Order Number 3BSE018114R1
System Compatibility System 800xA / AC 800M Controller Series
Supported CPUs PM851, PM856, PM860, PM861, PM864, PM865 (Single / Non-redundant)
Network Ports 2× RJ45 Ethernet ports (CN1, CN2)
Serial Ports 2× RJ45 Serial ports (COM3, COM4 / RS-232C)
Expansion Interfaces CEX-Bus connector (right), ModuleBus connector (left)
Power Input Dual 24 V DC redundant power supply terminals
Mounting Type Direct DIN Rail or Wall Mounting
Key System Functions
Central CPU Connection: Houses the core processor module without requiring disconnects to field wiring or system communication lines during CPU swaps.
Bus Routing: Directly bridges high-speed inter-module communication via the ModuleBus (for local S800 I/O clusters) and the CEX-Bus (for communication interface modules like CI854 or CI860 using TK850 cables).
Power & Fuse Protection: Features built-in power terminal blocks and front-accessible fuse holders for power rail protection across the controller assembly.
