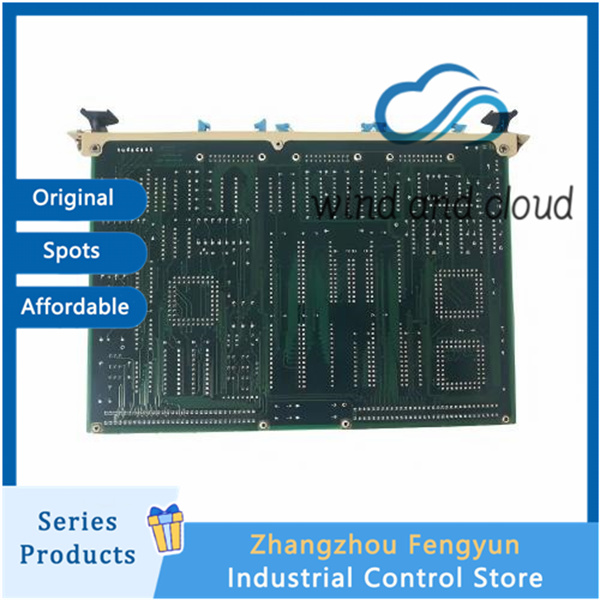

ABB SCYC51010 58052515G｜High Speed Pulse Board｜

Key hardware parameters
Model: SCYC51010; Material Number: 58052515G (TNR 25590)
Bus: VME64, VME rack card insertion
Channel: 8 independent high-speed counting channels, supporting A/B phase orthogonal encoders and unidirectional pulses
Counting frequency: up to 1MHz
Input type: 5V differential encoder signal; Also compatible with 24V pulse signals
Counting mode: orthogonal 4th harmonic, unidirectional counting, direction+pulse; Support locking, comparison, and interrupt reporting
Power supply: VME backplane power supply (+5V, ± 12V), no external power supply required
Working temperature: 0 ℃~+60 ℃; Storage -40~+85 ℃
Status: Completely discontinued, only disassembled/refurbished spare parts available on the market, no brand new original equipment
core functionality
8-channel high-speed encoder/pulse acquisition
Support incremental encoder A/B/Z phase, orthogonal decoding, and 4x counting; It can collect flow pulses, speed pulses, and position pulses, and upload real-time count values to the VME bus to the CPU.
Hardware comparison, latch, interrupt
The onboard hardware comparison register generates a hardware interrupt when the set count value is reached; External trigger signal locks the current count value, reducing the computational load on the main CPU.
Channel fault diagnosis
The board comes with hardware self-test, encoder disconnection and signal abnormality detection, panel LED status indication, and fault reporting to the VME system.
Application Scenarios
Steel rolling, papermaking, lifting, collecting encoder position and speed; Cumulative counting of flow meter pulses.
