This module serves as a dedicated I/O component for the AC 800 PEC control platform, and is also a core supporting module of static excitation systems. Designed with a modular architecture and distributed control logic, it supports redundant subsystem configurations, meeting the high reliability requirements of mission-critical industrial environments such as power, heavy industry, and process automation.

Circulation Characteristics & Quality Assurance

Supply status: Predominantly distributed as brand-new, original, factory-sealed modules.

Inventory: Multiple automation suppliers—especially in Xiamen and other industrial hubs—indicate in-stock availability with MOQ = 1 piece, suitable for urgent on-site maintenance.

Warranty: Most suppliers provide a one-year warranty and global delivery, ensuring rapid response for equipment replacement and system restoration.

Installation Features

Industrial universal modular design, supporting standard DIN-rail mounting

Direct plug-in compatibility with series terminal baseplates, no customized accessories required

Flexible installation:

For local CPU racks in AC 800 PEC systems

For distributed substations through FBP (Fieldbus Plug) extension

High maintainability, enabling fast module replacement without downtime or rewiring

Key Technical Parameters

1. Power Supply & Environmental Adaptation

Standard power input: 24 VDC, widely used in industrial control systems

Optional support for 110–240 VAC wide-voltage input (depending on configuration)

Operating temperature: –20 °C to +60 °C, suitable for fluctuating on-site climates

Protection rating: IP20, requiring installation within a control cabinet

Designed to remain protected from dust, condensation, and corrosive environments when installed properly

2. I/O and Communication Capability

Supports both digital and analog input/output channels

Suitable for sensor data acquisition and actuator command output

Compatible with multiple wiring topologies: 1-wire, 2-wire, 3-wire baseboard configurations

High wiring flexibility, adaptable to diverse field sensors, push buttons, limit switches, and transducers

Communication support includes:

Ethernet

Profibus

Modbus

Enables transparent data exchange and seamless integration with factory-level supervisory systems (SCADA, DCS, energy management, etc.)

3. Expansion Capability

When used as part of a distributed PEC substation, the system can expand up to:

7 additional I/O modulesAmong them, up to 4 analog modules

This allows flexible scaling of signal capacity according to plant size, device count, or process complexity.

Core Functions

Real-time acquisition of process variables (temperature, pressure, equipment status, motor signals, etc.)

Implements basic protective functions such as:

Motor overload

Short-circuit protection

Outputs precise control commands to actuators to form a closed-loop control chain

Integrates with upper-level control systems through standardized communication protocols for coordinated control and data reporting

AC 800 PEC-adapted systems incorporate:

Strict cybersecurity mechanisms

Built-in firewall functions

Protection against unauthorized access and abnormal operations

Ensures long-term system stability and safe equipment operation in critical industrial processes

Typical Application Scenarios

1. Power Generation & Energy Systems

Generator excitation control (static excitation system modules)

Stabilizing generator operation through precise I/O interaction

Equipment monitoring in substations

2. Industrial Manufacturing

Motor Control Centers (MCCs)

Pumps

Fans

Compressors

Real-time monitoring and protective shutdown logic

Distributed equipment linkage and process coordination

3. Production Line Control & Process Automation

Unified supervision of automated production lines

Integrated control of multiple field devices (valves, transmitters, sensors)

Executing command scheduling across distributed equipment clusters

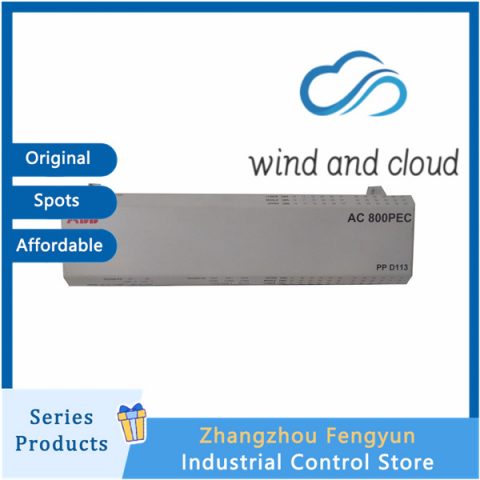

ABB PPD113B01-26-111000｜Static Excitation System I/O Module｜
