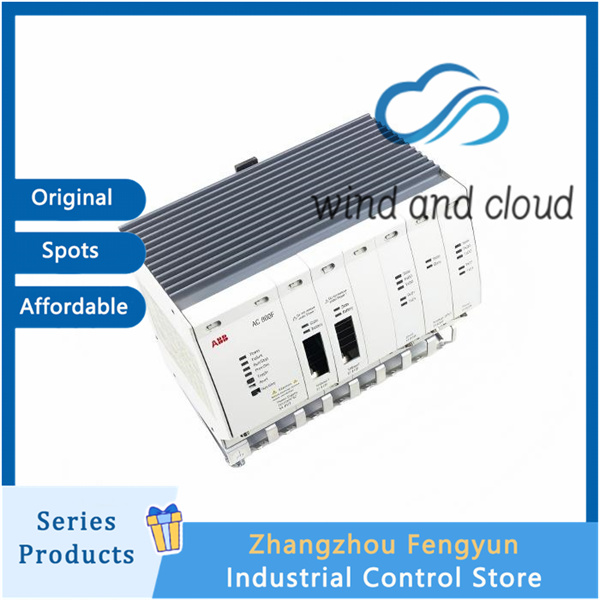

ABB PM802F 3BDH000002R1｜Base Unit｜

Main Technical Parameters
Parameter Specification
CPU Intel 80960HT 32-bit RISC
Computing Performance 150 MIPS
CPU Cache 16 KB
Static RAM 4 MB (Battery-backed, ECC)
Flash Memory 4 MB Flash-EPROM
EEPROM 16 Kbit
Fieldbus Slots 4 (F1–F4)
Ethernet Slots 2 (E1–E2)
Diagnostic Port RS-232
Power Consumption Approx. 6 W (Base Unit)
Supply Voltage Via SA811F AC or SD812F 24 VDC Power Module
Operating Temperature 0 to +55 °C
Dimensions (W × H × D) 239 × 202 × 164 mm
Weight Approx. 1.6 kg
Typical Applications
Power generation and power plant automation
Oil and gas production facilities
Chemical and petrochemical plants
Water and wastewater treatment
Cement and mining industries
Pulp and paper manufacturing
Food and beverage processing
Product Advantages
High-performance 32-bit RISC processor delivering up to 150 MIPS
Supports controller, power supply, and communication redundancy for maximum system availability
Battery-backed memory with ECC technology ensures reliable data retention
Flexible expansion through multiple fieldbus and Ethernet communication modules
Compatible with PROFIBUS DP, Foundation Fieldbus HSE, CAN, and Ethernet networks
Seamless integration with ABB Freelance 800F / AC 800F distributed control systems
Designed for continuous industrial process control with high reliability and easy maintenance

PM802F 3BDH000002R1
