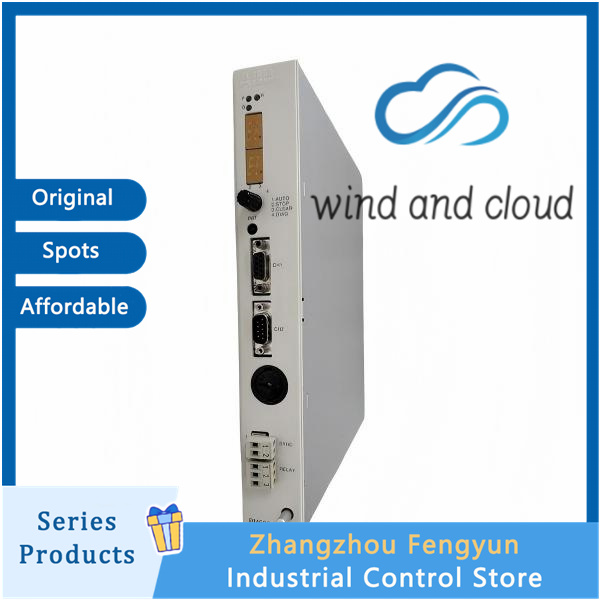

ABB PM633｜Processor Unit｜

Main functions
1. Control logic execution

As the CPU of AC110/AC160 controller, PM633 is mainly responsible for:

User application execution
Sequential control logic
Analog quantity adjustment
PID control algorithm
Interlocking and protection logic
data acquisition and processing
Alarm and Event Management

Realize on-site I/O data collection, calculation, and control output.

2. Communication and Data Management

PM633 can be implemented through the ABB Advant system architecture:

Communicate with I/O modules
Connect with communication interfaces such as CI626/CI627
Connect to Advant Fieldbus 100 (AF100)
Exchange data with operator station and engineer station
Complete system status monitoring and diagnosis

In the ABB 800xA for AC100 system, the Processor Module of AC110 includes models such as PM632, PM633, PM634, etc.

Technical Features
MC68340 25MHz industrial grade processor
High reliability real-time control capability
Modular plug-in structure
Support ABB Advance Control Builder configuration environment
Maintain system data with backup battery
Suitable for continuous operation of industrial process control systems

PM633
