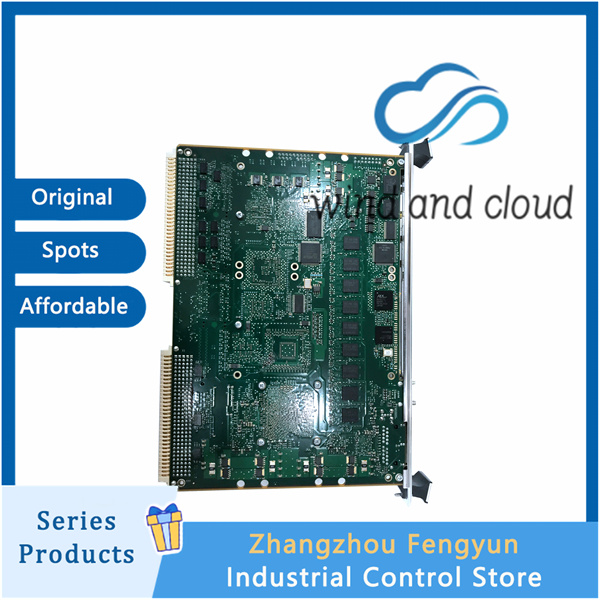

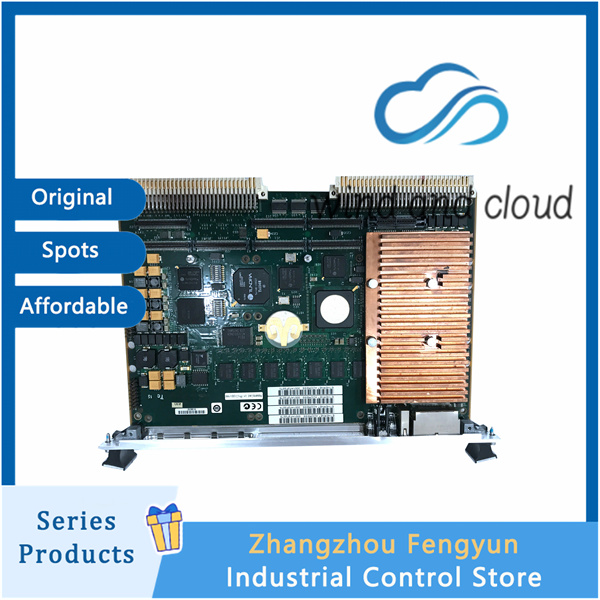

MOTOROLA MVME7100-0171｜VMEbus Single-Board Computer｜

All products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second-hand and brand new products are available for sale on this website. Please contact customer service for further communication.

MOTOROLA MVME7100-0171｜VMEbus Single-Board Computer｜

MVME7100

core specifications
Processor: NXP MPC864xD (dual core PowerPC e600), with a clock speed of 1.06GHz or 1.3GHz, 32KB/32KB L1 cache per core, and 1MB shared L2 cache.
Memory: Up to 2GB DDR2 ECC SDRAM (dual memory controller) to ensure data integrity.
Storage: 128MB onboard NOR Flash (hardware/software write protected), 2GB onboard NAND Flash
VME bus: Tundra Tsi148 bridge, supporting VME64/2eVME/2eSST, with a maximum bandwidth of 320MB/s for 2eSST.
Expansion slots: 2 x PMC-X (33/66/100MHz), 1 x 8x PCIe (supports XMCspan).
Interfaces: 4 x Gigabit Ethernet (2 front RJ45, 2 rear P2 interfaces), 5 x serial ports (RS-232), 1 x USB 2.0 (commercial temperature version).
Environment: Commercial temperature version 0 ℃~+55 ℃; Wide temperature version -40 ℃~+71 ℃, resistant to vibration and impact.
Power consumption: Typical 40W, peak 55-60W (high-end version), backplane+3.3V/+5V/± 12V power supply.
Size: Standard 6U VME board type (233.4 × 160.0mm, front board height 261.8mm).
Key Features and Applications
High performance SoC: Integrated dual core CPU, dual DDR2 controllers, PCIe, DMA, and multiple Ethernet interfaces, suitable for data intensive real-time processing.
Strong scalability: Dual PMC-X+1 PCIe slot, which can flexibly expand FPGA, I/O cards, XMC modules, and adapt to complex systems.
Software compatibility: Supports real-time operating systems such as VxWorks, Linux, Lynx OS, and is compatible with older versions of VME system software.
Typical scenarios: semiconductor equipment, ATE testing, medical imaging, rail transit, military/aerospace, industrial automation control.
