Name: MOTOROLA MVME333S-2｜Controller Communication Module｜
SKU: 33991
Price: 2300.00 USD
Availability: InStock

All products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second-hand and brand new products are available for sale on this website. Please contact customer service for further communication.

MOTOROLA MVME333S-2｜Controller Communication Module｜

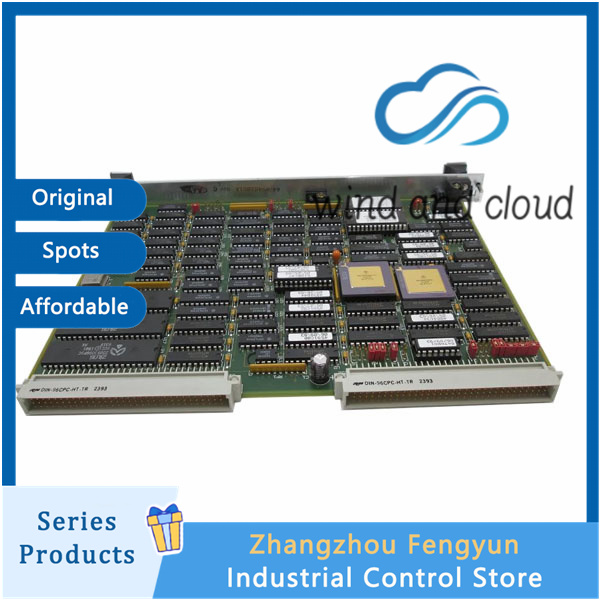

MOTOROLA MVME333S-2｜Controller Communication Module｜illustration

Type: VME 6U Single Slot Intelligent Serial Communication Controller
Status: Obsolete, available on the market as original, brand new/disassembled/warranty spare parts
Difference standard version: S=Special (wide temperature/high reliability/military grade), more harsh environment than MVME333-2
hardware core
CPU: MC68010 @ 10 MHz (independent intelligent processor, not occupying the host)
Memory: 128 KB DRAM (data cache, some versions 512 KB)
Firmware: 2 x EPROM slots (fixed protocol)
Bus: VMEbus A24/D16, master/slave mode
Power supply:+5V DC (VME bus power supply)
3. 6-way serial port (full duplex independent)
Electrical standards: RS-232C/RS-422 (software configurable)
Mode: Asynchronous+Synchronous Dual Protocol
Asynchronous speed: 6-channel full duplex 9.6 kbps
Synchronization rate: 2-channel DMA high-speed 1 Mbps
Working temperature: -40 ° C~+85 ° C (wide temperature range, industrial/military grade)
Storage temperature: -40 ° C~+85 ° C
Humidity: 5% -95% without condensation
Protection: Compliant with Class I, Group A-D hazardous environment non flammable circuits
EMI：EN 61326、CISPR 11 Class A
Size: 6U VME single slot
Weight: Approximately 1.36 kg (3 lbs)
Interface: Front panel DB-25/RJ45 (6 serial ports)
