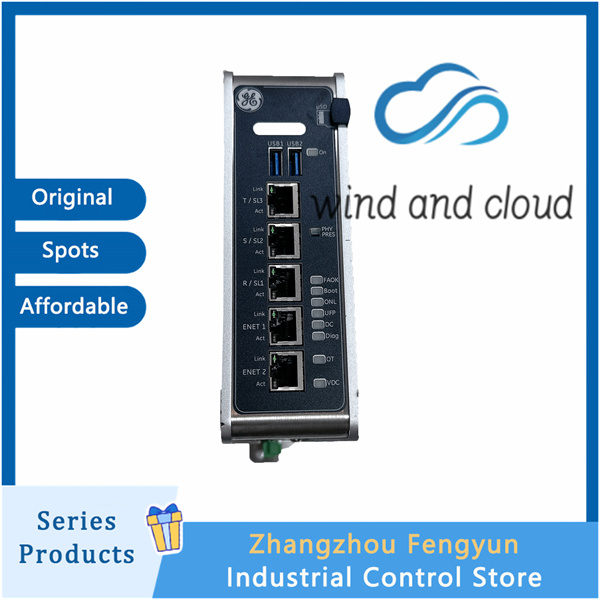

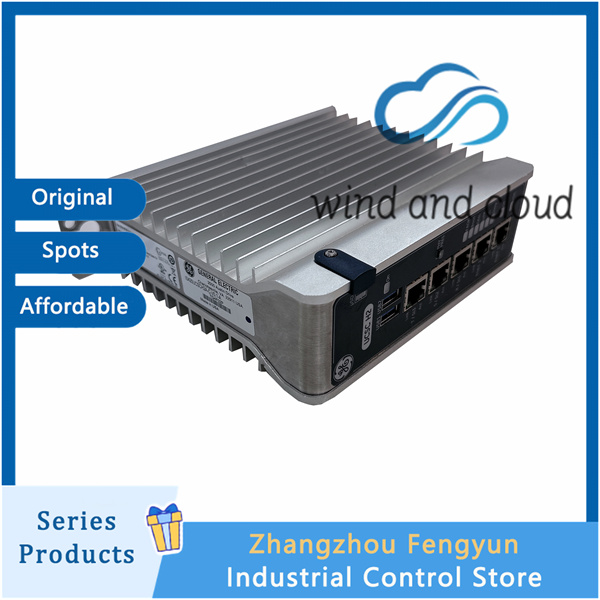

IS420UCSCH1B GE Quad Core Controller
1、 Core specifications
Model: IS420UCSCH1B
Series: Mark VIe/VIeS
Type: UCSC quad core controller (BoP specific)
Processor: AMD G-Series quad core 1.2 GHz
Operating System: QNX Neutrino RTOS (Real time Supervisor)
Firmware: ControlST V07.01.00+
Weight: Approximately 1.33 kg
Protection: IP20 (installed inside the cabinet)
2、 Storage and Memory
RAM: 4 GB DDR3-1333 SDRAM (with ECC error correction)
Flash：8 GB NAND Flash
Non volatile storage: 3067 variables, 64 accumulators, 338 forcing points
Battery free design: configuration saved in flash memory
3、 Communication interface
Ethernet: 6 x Gigabit RJ45
Front panel: 5 x IONet ports (dual redundant)
Bottom: 1 x dedicated Predix cloud connection port
USB: 2xUSB 2.0 (configuration/maintenance)
Serial port: 1 x RS-232 (debugging, 115200bps)
Clock synchronization: IEEE 1588 PTP
Protocol: IONet, Modbus TCP, PROFINET, EtherCAT, PPNG
4、 Electrical and Environmental
Power supply: 24 VDC (18-30 V)
Power consumption: ≤ 30 W
Working temperature: -40 ° C~+70 ° C
Storage temperature: -40 ° C~+85 ° C

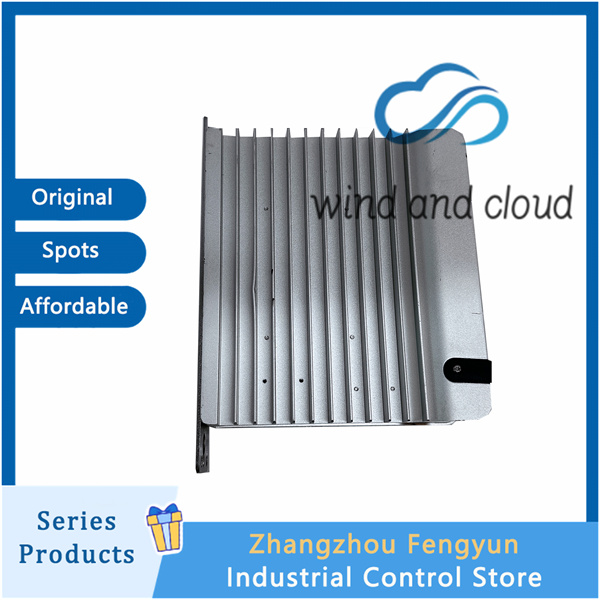

Heat dissipation: fanless, natural convection
Altitude: 0-1000 meters (standard)
5、 Functions and Applications
Positioning: BoP controller (does not support local I/O, only manages remote I/O)
Redundancy: simplex/dual redundancy/TMR
Safety: Supports SIL 2 safety circuit
Cloud Connection: EFA (Embedded Field Agent) → Predix Cloud
Typical applications:
Power plant boiler, water treatment, pump valve auxiliary system
Oil and gas compressor station, long-distance pipeline control
Industrial DCS, energy management system
