Product Overview

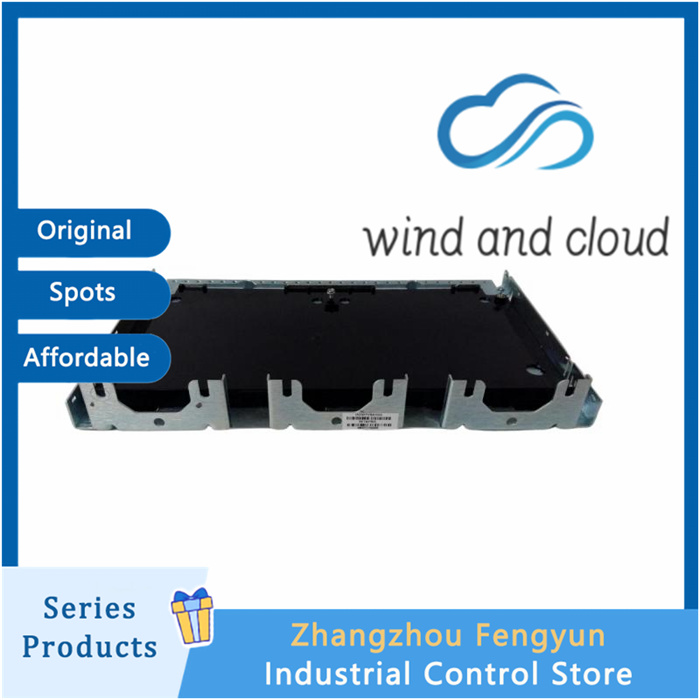

IS230TVBAH2A is a thermocouple input terminal board within the GE IS230 series, built for the Mark VIe Speedtronic turbine control system. It functions as the field signal interface to capture temperature readings from thermocouple sensors, converting low millivolt signals and forwarding processed temperature data to the Mark VIe VTCC processor.
This terminal board belongs to the TMR triple modular redundant I/O assembly for gas and steam turbine control. It comes with two barrier terminal strips TB1 and TB2, each offering 24 thermocouple input points, delivering a total of 48 channels. It supports both grounded and ungrounded E, J, K, T type thermocouples. The PCB has conformal coating to resist dust, humidity and vibration inside power plant control cabinets. The terminal blocks can be detached for convenient field wiring and maintenance.
Key Features
- Part Number: IS230TVBAH2A
- Manufacturer: GE Boards & Turbine Control
- Compatible System: GE Mark VIe / Mark VIeS Speedtronic Turbine Control
- Module Type: Thermocouple Input Terminal Board
- Supported Thermocouple Types: E, J, K, T
- 2 barrier terminal blocks, up to 48 thermocouple input channels
- TMR triple modular redundant architecture for fault tolerance
- Conformal coated PCB for harsh cabinet environments
- Supports grounded and ungrounded thermocouple sensors
- Removable terminal blocks for easy on-site wiring & maintenance
- Screw mounting on shielding frame inside control rack
- For turbine temperature monitoring and over-temperature protection interlock
Technical Specifications
- Model: IS230TVBAH2A
- Series: IS230 Mark VIe I/O Terminal Board
- Input Signal: Thermocouple millivolt signal
- Terminal Blocks: TB1, TB2 barrier terminals
- Mounting: Screw mounting on shielding frame
- Application: Gas turbine, steam turbine temperature monitoring
- Working Environment: Industrial control cabinet, power generation, oil & gas
Applications
IS230TVBAH2A is widely deployed in power plants, oil & gas compressor stations and petrochemical plants. It is installed in Mark VIe control racks to collect temperature signals from turbine casings, exhaust sections and bearing assemblies. Common use cases:
- Gas & steam turbine body and exhaust temperature monitoring
- Turbine over-temperature protection safety interlock
- Mark VIe system spare replacement and control rack retrofitting
- Power plant DCS and turbine safety system maintenance
FAQ
Q: What thermocouple types does IS230TVBAH2A support?
A: IS230TVBAH2A accepts E, J, K, T type thermocouples for temperature acquisition.
Q: Which control system is IS230TVBAH2A used for?
A: It is designed for GE Mark VIe and Mark VIeS Speedtronic turbine control systems.
Q: Do you supply tested IS230TVBAH2A spare parts?
A: We can supply surplus / refurbished IS230TVBAH2A with complete functional testing before shipment. Contact us for stock status and quotation.
Q: What is the warranty for IS230TVBAH2A?
A: Warranty terms depend on the product condition. Please send inquiry for detailed warranty information.
Call to Action
Contact our sales team to check stock, price and lead time for GE IS230TVBAH2A. We supply GE Mark VIe turbine control spare parts globally.
Hot selling models
GE BRAND
| IC698CPE030 | IC698CPE020-CC | IS200TCASH1A |
| IC698CPE040 | DS200ADGIH1AAA | IS200TDBTH6ABC |
| IC698PSA100 | DS200ADPBG1ABB | IS200TPROH1BBB |
| IC698PSA100E | DS200DCFBG1BGB | IS200TPROH1BCB |
Recommended other models

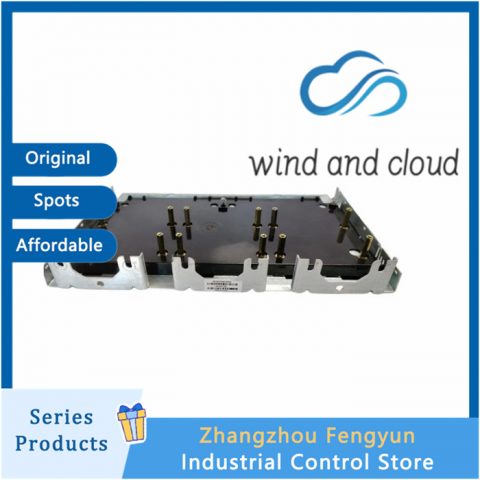

IS230TNSVH3A | GE Mark VIe Thermocouple Input Terminal Board
