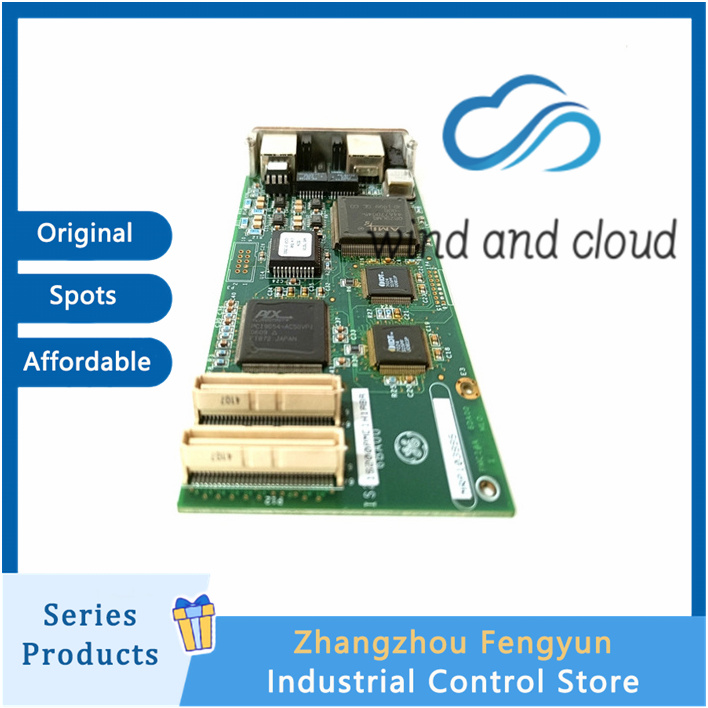

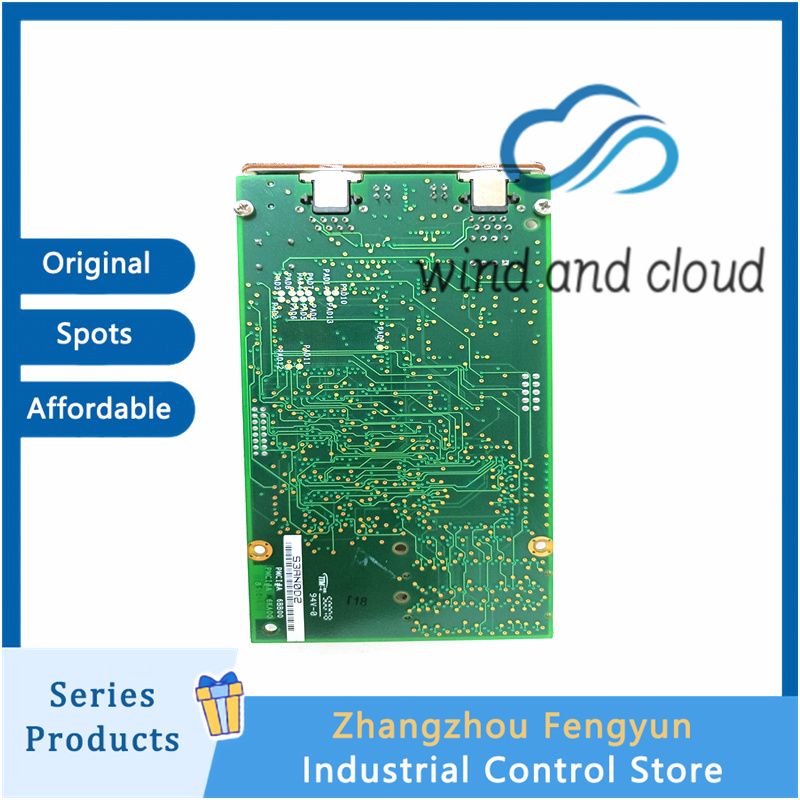

GE IS200PMCIH1ABA Printed Circuit Board

IS200PMCIH1ABA

Power conversion (excitation power supply core)
Input: 125VDC (system bus)
Output (multi-channel isolated voltage regulation):
+5VDC (Control Logic)
± 15VDC (analog signal/sensor)
+24VDC (on-site I/O/relay)
Power consumption: Maximum 8.5W (non fault-tolerant mode)
Conversion efficiency: ≥ 85%, overvoltage/overcurrent/short circuit protection

Communication interface (redundant dual network)
Dual Ethernet: 2 x RJ45, 10/100Mbps adaptive, redundant switching
Protocol: SRTP, Modbus TCP, EGD (turbine specific)
Topology: star/daisy chain/ring network, supporting redundant IP addresses
Backplane bus: Mark VI dedicated high-speed parallel bus, connected to CPU/IO card
Debugging port: RS-2329600bps, local configuration/diagnosis

Processor and Memory
Main chip: 32-bit RISC processor, 100MHz
Memory: 16MB SDRAM (running), 32MB Flash (firmware/configuration)
Real time performance: task cycle of 125ms, supporting closed-loop control of the engine

Core functionality
EX2100 excitation system dedicated power supply: 125VDC conversion+5/± 15/+24V, isolated and stabilized to ensure stable excitation control.
Dual network redundant communication: seamless switching, high availability of the turbine control network, avoiding single point failures.
Signal acquisition and conditioning: Analog input (± 10V/4-20mA) and digital input, filtering/isolation/amplification.
System diagnosis and status monitoring: real-time reporting of power health, communication links, temperature/voltage, and support for predictive maintenance.
Seamless collaboration with Mark VIe CPU: compatible with RX3i/Mark VIe architecture, supporting redundant CPU synchronization.

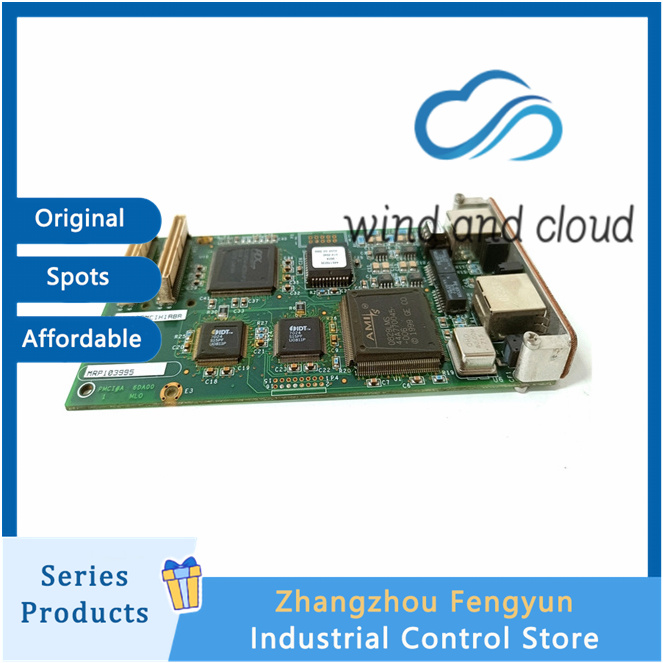

GE IS200PMCIH1ABA Printed Circuit Board
