GE IS200EGPAG1ABC | EX2100 EGPA Exciter Gate Pulse Amplifier Board Mark VI Speedtronic

All products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second‑hand and brand new products are available for sale on this website. Please contact customer service for further communication.

GE IS200EGPAG1ABC | EX2100 EGPA Exciter Gate Pulse Amplifier Board Mark VI Speedtronic

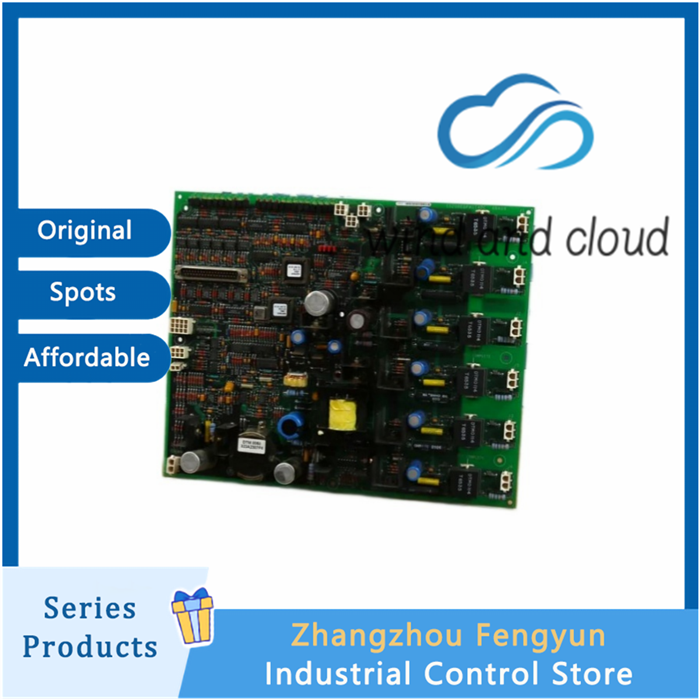

IS200EGPAG1ABC is the EGPA (Exciter Gate Pulse Amplifier) printed‑circuit board manufactured by General Electric for GE Speedtronic Mark VI / Mark VIe and EX2100 static excitation control systems. This high‑energy interface card sits between the low‑level ESEL control logic board and the SCR power bridge. It receives weak firing command signals from the controller, amplifies them into high‑current gate pulses to trigger up to six SCR thyristors, and collects multiple status feedback signals back to the main turbine controller.

It monitors SCR heatsink temperature, power‑bridge airflow condition and power‑circuit operating status. The board is installed inside the EX2100 power conversion cabinet and powered from the EPDM power distribution module. Power generation facilities source IS200EGPAG1ABC for scheduled outage overhaul, unplanned excitation‑trip repair, EX2100 system retrofits and critical MRO spare stocking. Original OEM production is discontinued; global supply is limited to new‑old‑stock surplus and fully refurbished functionally‑tested units.

Key Features

• Dedicated EGPA hardware for EX2100 / EX2100e excitation platform, interfaces ESEL logic board to SCR power bridge
• Amplifies low‑logic‑level firing signals into robust gate drive pulses for six‑pulse SCR rectifier stack
• Multi‑point hardware monitoring: SCR heatsink thermal switch input, bridge cooling airflow detection, power‑circuit status feedback
• On‑board configurable jumpers for project‑specific hardware setup before commissioning
• Front‑panel LED status indicators for gate power output, thermal alarm, fault condition and fan‑rotation status, supporting fast on‑site troubleshooting
• Conformal‑coated industrial PCB assembly with surge suppression and EMI filtering for high‑noise power‑plant cabinet environments
• Receives 125 VDC operating power from EPDM power distribution module
• Reports thermal faults, pulse‑drive anomalies and power‑bridge alarms via Mark VI backplane communication to control HMI alarm list
• Supports simplex and redundant EX2100 excitation architectures; fast module replacement during plant shutdown windows

Technical Specifications

• Part Number：IS200EGPAG1ABC
• Manufacturer：General Electric (GE)
• Product Type：Exciter Gate Pulse Amplifier Board (EGPA)
• Compatible System：GE Speedtronic Mark VI, Mark VIe, EX2100 / EX2100e Excitation Control System
• Core Function：SCR firing‑pulse amplification, power‑bridge thermal & airflow monitoring, operating‑status feedback acquisition
• Power Input：125 VDC supplied from EPDM module
• SCR Drive Capacity：Supports up to six silicon‑controlled rectifiers within excitation power bridge
• Configuration：5 on‑board configurable jumpers for application‑specific setup
• Mounting：Installed inside EX2100 power conversion cabinet
• Operating Temperature：‑20 °C ~ +70 °C
• Storage Temperature：‑40 °C ~ +85 °C
• Humidity：5‑95 % non‑condensing
• Protection Class：IP20 (cabinet‑mount installation only)
• Interfaces：Signal connector to ESEL board, SCR gate pulse output terminals, thermal/airflow feedback inputs, EPDM power connector
• Status：OEM discontinued, available as NOS surplus & professionally refurbished tested units
• Static‑sensitive assembly; ESD handling procedures required during installation and servicing

Typical Applications

1. Combined‑cycle power plant EX2100 generator static excitation system SCR drive interface replacement
2. Gas turbine Mark VI / Mark VIe power‑conversion cabinet excitation subsystem maintenance and spare‑part swap
3. Steam‑turbine generator excitation power‑bridge loop overhaul and component renewal
4. Power‑plant emergency repair triggered by excitation thermal alarm or SCR firing‑related unit trips
5. Legacy GE EX2100 excitation‑system retrofit and spare‑part stocking for simplex and redundant sites

Compatibility Notes

IS200EGPAG1ABC is a specific hardware revision variant within the EGPA family. Always cross‑check your existing ESEL board revision, EPDM power module hardware, EX2100 firmware version and original project BOM before ordering replacement units. Do not confuse this EGPA pulse‑amplifier board with IS200EGDMH1ADF gate‑driver board; they serve different circuit roles and are not direct drop‑in substitutes. Related EX2100 series boards include IS200ECTBG1ADE, IS200EGDMH1AFF. Full part‑number suffix revision matching is required to avoid hardware mismatch.

Product Condition & Supply Information

Original GE manufacturing for IS200EGPAG1ABC has been discontinued. Available stock consists of new‑old‑stock surplus and fully refurbished assemblies. Every unit should complete comprehensive bench testing prior to shipment, including SCR gate‑pulse output simulation, thermal‑switch signal test, airflow‑input verification, power‑cycle stress test and LED indicator functional check.
