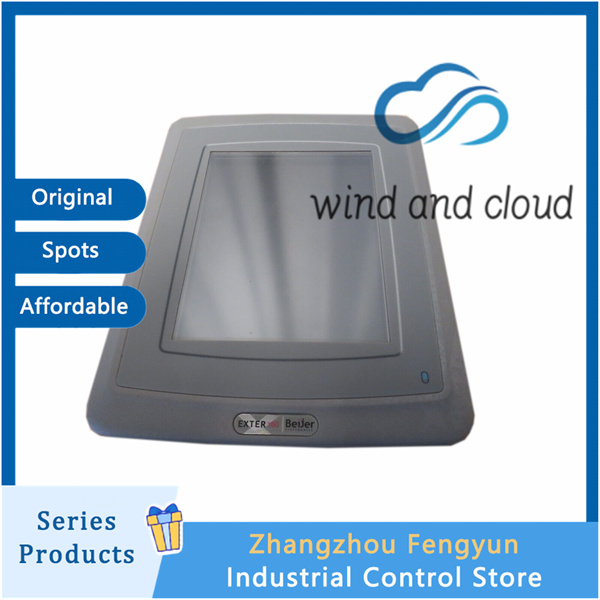

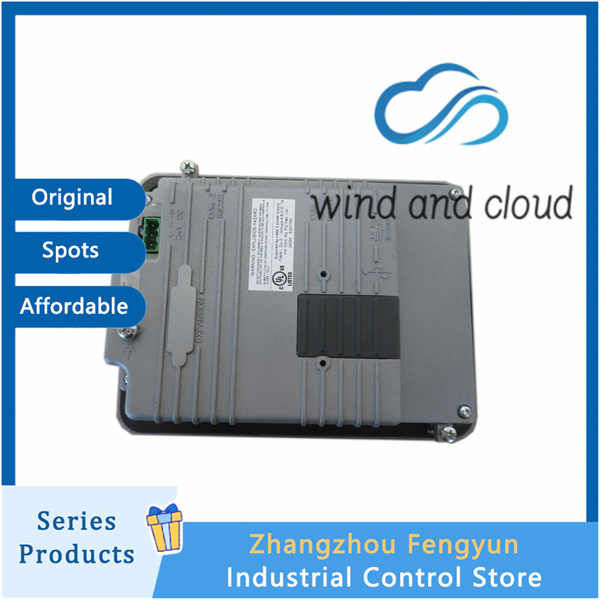

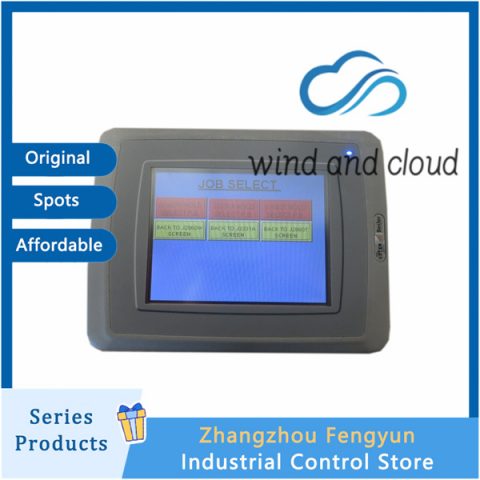

BEIJER EXTER T60M｜Human-Machine Interface｜
5.7-inch FSTN/STN LCD Touch Screen HMI Panel
Display Specifications
| Parameter | Value |
|---|---|
| Screen size | 5.7 inches |
| Resolution | 320 × 240 pixels |
| Display type | FSTN-LCD or STN-LCD |
| Backlight | CCFL, continuous 24-hour use at 25 °C |
| Backlight lifespan | >45,000 hours |
Hardware Specifications
| Parameter | Value |
|---|---|
| Dimensions (W×H×D) | 201 × 152 × 6 mm |
| Panel cut-out size | 180 × 130 mm |
| Installation depth | 57 mm |
| Weight | 0.87 kg |
| Storage | 32 MB flash memory, 12 MB application memory |
| RAM | 64 MB |
| Processor | 312 MHz RISC CPU (Intel XScale) |
| Real-time clock | Yes, CR2450 battery, ≥3 years lifespan |
| Communication interfaces | Ethernet (10/100 Mbit/s, RJ45), RS485/RS422 (25-pin D-sub), RS232C (9-pin D-sub), USB 1.1 host (Type A) |
Electrical Parameters
| Parameter | Value |
|---|---|
| Input voltage | +24 VDC (20–30 VDC) |
| Maximum power consumption | Normal 0.2 A, max 0.4 A |
| Input fuse | Internal DC fuse, 2.0 A |
BEIJER EXTER T60M｜Human-Machine Interface｜
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating temperature | 0–50 °C |
| Storage temperature | −20–70 °C |
| Front panel protection | IP66 |
| Rear panel protection | IP20 |
