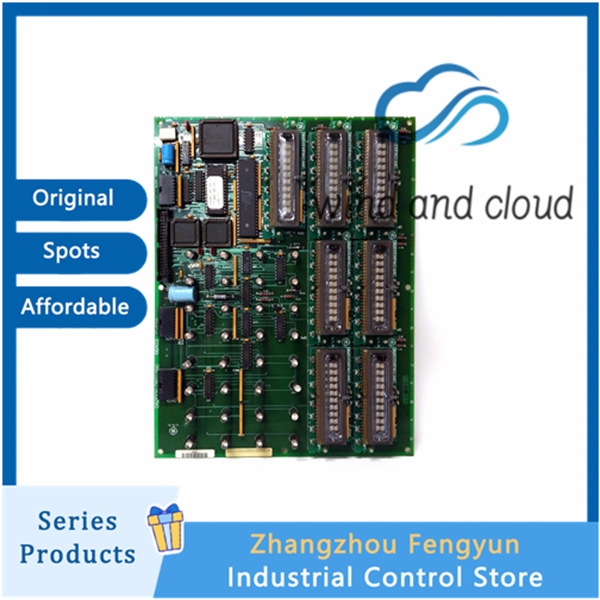

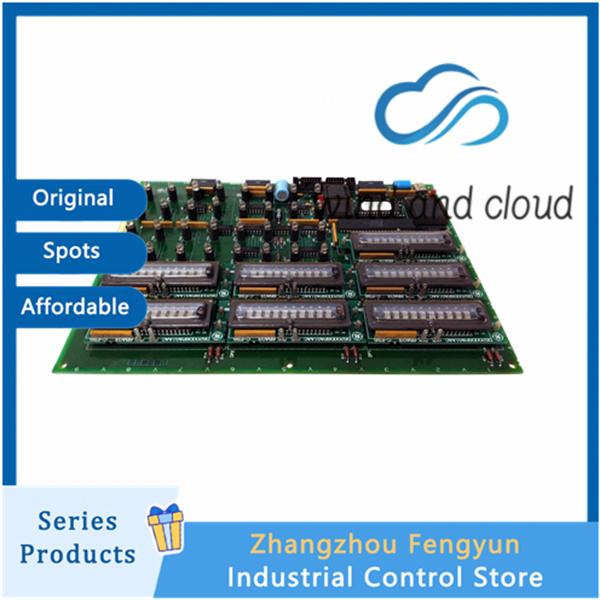

GE DS200IQXSG1AAA｜Display Board｜
Interface Configuration
Display screen: 16 × 2 character LCD backlit display
Button: 8 function keys (navigation/settings/confirm)
LED indicator lights: 16 (power, operation, alarm, fault, channel status)
Digital tube: 7 sets of 16 segment digital tubes (numerical display)
Electrical specifications
Power supply: 24V DC (Mark V system bus power supply)
Power consumption: about 2W
Communication interface: RS-485 (internal bus of the system)
Isolation: photoelectric isolation, anti-interference design
Environment and Physics
Working temperature: 0 ° C~+60 ° C
Storage temperature: -40 ° C~+85 ° C
Humidity: 5% -95% (non condensing)
Size: 330 × 100 × 20 mm (length × width × height)
Weight: Approximately 0.25 kg
Installation: VME rack mounted (single slot)
Features
Operation: Local start stop, parameter modification, excitation system configuration
Monitoring: Real time display of speed, temperature, pressure, vibration, load, etc
Diagnosis: Fault code display, event log, LED status alarm
Redundancy: Supports TMR system hot backup and online replacement
Application scenarios
GE Mark V Gas Turbine/Steam Turbine Control System (Power Generation, Oil and Gas, Industrial Drive)
Power plant DCS, turbine room local operation station, equipment debugging and maintenance interface
