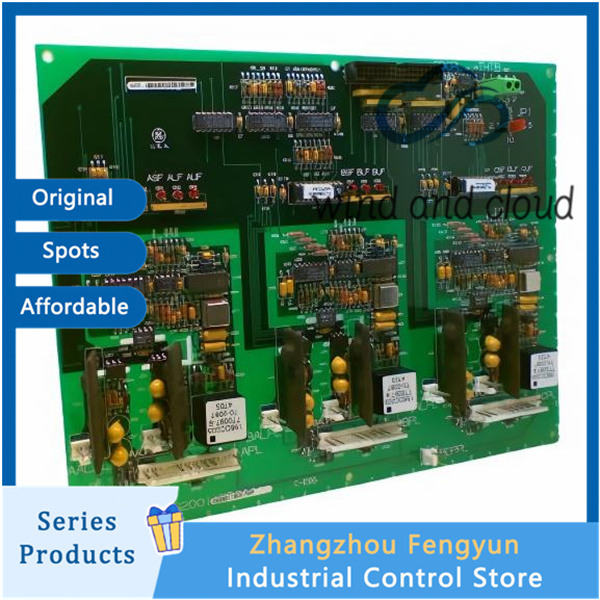

GE DS200IIBDG1A｜Gate Driver Board｜
Electrical parameters
Rated voltage: 600 V
Rated current: 200 A
Switching frequency: up to 20 kHz
Drive circuit: 6-way optically isolated gate drive (1 for each phase’s upper/lower IGBT)
Feedback circuit: Current, voltage, and fault feedback for each phase
Onboard power supply: includes an isolation transformer to supply power to the gate circuit and feedback VCO
Environment and Physics
Working temperature: -40 ° C~+85 ° C
Storage temperature: -55 ° C~+125 ° C
Approx size: 240 × 150 × 110 mm
Protection level: IP20
Status indicator: 9 red LEDs (power, driver, fault status)
Compliance and Adaptation
Certification: CE, UL, CSA
Adaptation System: GE Mark V Gas/Steam/Wind Turbine Control
DS200IIBDG1A
