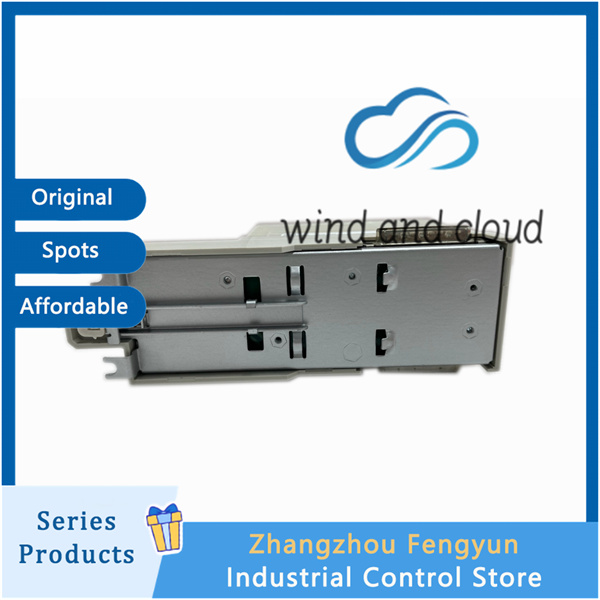

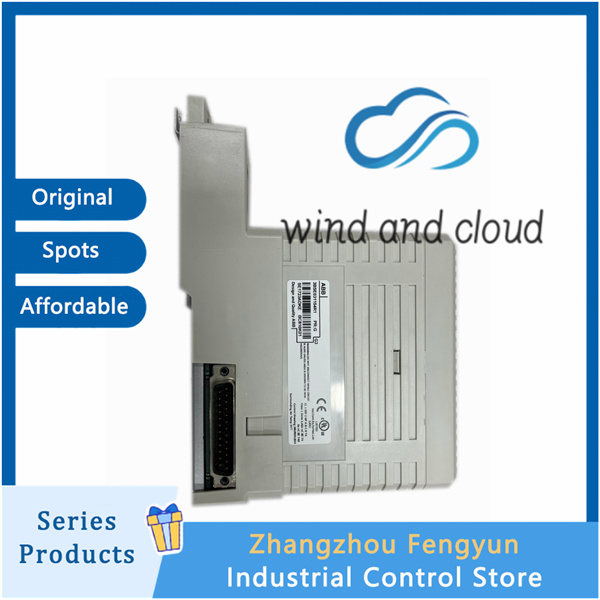

ABB BC810K02｜CEX Bus Interconnect Unit｜
Physical Properties
Size: 127.5 mm × 185 mm × 59 mm
Weight: 0.77 kg
Electrical Parameters
Input Voltage: 24 VDC
Operating Temperature Range: -40 °C to +85 °C
Features
Communication Function
Serves as a CEX bus interconnect unit within ABB’s Advant 800xA system.
Provides reliable communication and data exchange between modules.
Ensures fast and error-free data transmission across the system.
System Compatibility
Compatible with processor modules: PM861A, PM862, PM864A, PM865, PM866, PM866A, PM867.
Diagnostic Function
Supports advanced diagnostic and monitoring functions.
Facilitates rapid fault detection and resolution.
Enhances overall system reliability and uptime.
Structural Design
Consists of two main parts:
Base Plate (TP857): Includes CEX bus connectors and external power connectors.
Power/Logic Board: Integrates +3.3 V converter, logic circuits, and CEX bus interconnect drivers.
Application Field
The BC810 unit is an integral part of the ABB Advant 800xA system, enabling communication between multiple modules. It is widely used in industrial automation applications, ensuring seamless system integration and stable operation across complex process environments.
