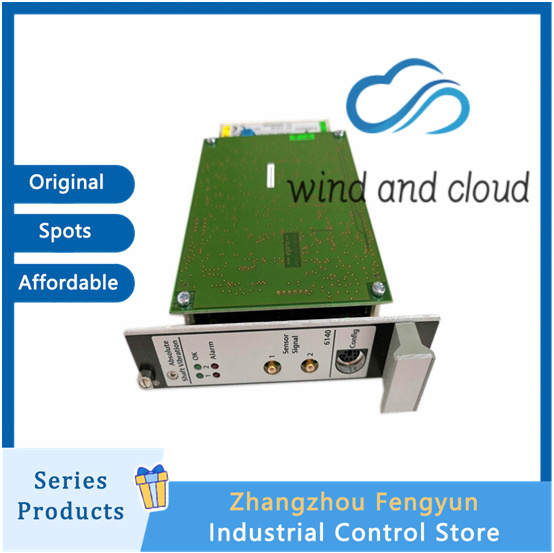

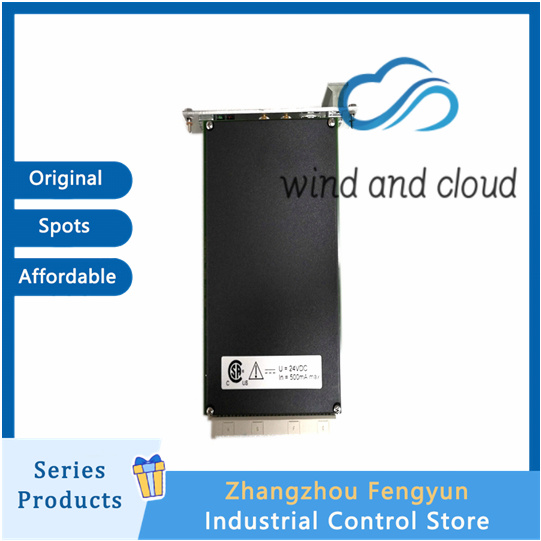

A6140 9199-00058
Product Overview
The Emerson A6140 9199-00058 is a dual-channel shaft absolute vibration monitor designed for industrial machinery protection and condition monitoring. It belongs to the Emerson AMS 6500 / CSI 6500 machinery protection system product family and is intended for applications that require reliable monitoring of rotating machinery vibration.
The A6140 measures shaft absolute vibration using compatible shaft displacement and casing vibration signals. This measurement approach is useful for machinery where bearing housing movement may affect the interpretation of shaft vibration relative to the housing.
Typical applications include steam turbines, gas turbines, hydro turbines, large compressors, and other supported rotating equipment. The monitor helps operators track vibration levels, configure alarm thresholds, and support machinery maintenance decisions.
When sourcing an Emerson A6140 module, verify the complete part number 9199-00058 and the compatibility of the existing rack, sensors, and system configuration before ordering.
Product Information
- Manufacturer: Emerson
- Model: A6140
- Part Number: 9199-00058
- Product Type: Dual-Channel Shaft Absolute Vibration Monitor
- Product Series: AMS 6500 / CSI 6500
- Monitoring Function: Shaft absolute vibration monitoring
- Installation: Plug-in monitoring card
- Form Factor: 3U Eurocard
- Power Supply: 24 VDC nominal
- Application: Industrial machinery protection and condition monitoring
Key Features
Dual-Channel Vibration Monitoring
The A6140 supports two-channel vibration monitoring for compatible machinery protection applications. It processes the applicable sensor signals to provide shaft absolute vibration measurements.
Shaft Absolute Vibration Measurement
By combining compatible shaft displacement and casing vibration measurements, the monitor can help account for bearing housing movement when assessing shaft vibration. This is particularly relevant to machinery installations where casing vibration cannot be ignored.
Configurable Monitoring Parameters
Supported monitoring configurations include adjustable measurement ranges, filtering, and alarm settings. Configuration should follow the applicable Emerson manual and the requirements of the installed machinery protection system.
Analog Outputs and Diagnostic Signals
The A6140 provides monitoring outputs for integration with compatible equipment and diagnostic instruments. Exact output availability and characteristics should be confirmed using the official wiring diagram and product documentation.
Industrial Machinery Protection
The module is designed for use in supported machinery protection systems, helping operators monitor vibration conditions and respond to configured alarms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | |
| Part Number | 9199-00058 |
| Product Type | Dual-channel shaft absolute vibration monitor |
| System | AMS 6500 / CSI 6500 |
| Number of Channels | 2 |
| Measurement Type | Shaft absolute vibration |
| Sensor Arrangement | Compatible shaft displacement and casing vibration sensors |
| Form Factor | 3U Eurocard |
| Dimensions | Approx. 160 × 128.4 × 30 mm |
| Nominal Supply | 24 VDC |
| Power Consumption | Maximum 6 W |
| Configuration | Password-protected settings |
| Installation | Compatible machinery protection rack |
Confirm sensor models, measurement ranges, signal outputs, alarm relay functions, and environmental limits against the official documentation for the exact hardware version.
Typical Applications
The Emerson A6140 9199-00058 is intended for supported rotating machinery monitoring applications, including:
- Steam turbine vibration monitoring
- Gas turbine machinery protection
- Hydro turbine condition monitoring
- Large compressor vibration monitoring
- Industrial power generation equipment
- Critical rotating machinery maintenance
The suitability of the A6140 depends on the installed sensors, machine characteristics, rack configuration, and protection requirements.
Compatibility and Replacement Guidance
Before replacing an existing A6140 module, verify the following:
- Confirm the model A6140 and part number 9199-00058 on the product label.
- Check that the existing installation uses a compatible AMS 6500 / CSI 6500 rack.
- Verify the installed shaft displacement probes, casing vibration sensors, and signal conditioning components.
- Confirm the required measurement range, alarm settings, and output wiring.
- Review the applicable installation and commissioning documentation.
A similar-looking monitoring card is not necessarily a direct replacement. Verify electrical and functional compatibility before installation.
Ordering Information
If you are looking for an Emerson A6140 9199-00058 shaft absolute vibration monitor, please contact us to confirm:
- Current stock availability
- New, unused surplus, or used condition
- Product testing and warranty terms
- Price and lead time
- Shipping options
Providing the complete part number and a photograph of the original nameplate can help ensure that the requested product is identified correctly.
Frequently Asked Questions
What is the Emerson A6140 9199-00058?
It is a dual-channel shaft absolute vibration monitoring module designed for compatible Emerson AMS 6500 / CSI 6500 machinery protection systems.
What is the difference between shaft relative and shaft absolute vibration?
Shaft relative vibration measures shaft movement relative to the bearing housing. Shaft absolute vibration accounts for bearing housing motion as well, providing a different view of shaft vibration relative to a stationary reference.
Which system is the A6140 designed for?
It is associated with the Emerson AMS 6500 / CSI 6500 machinery protection system. Verify rack and hardware compatibility before ordering.
Can the A6140 be used as a standalone device?
It is a plug-in monitoring card designed for a compatible rack installation, rather than a general-purpose standalone vibration instrument.
How do I confirm the correct replacement part?
Check the model, full part number, rack configuration, sensor arrangement, and applicable technical documentation before purchasing.
Request a Quote
Contact us for information about the Emerson A6140 9199-00058 shaft absolute vibration monitor.
Please include the required quantity, product condition, destination country, and delivery requirements so that availability and quotation details can be confirmed.
