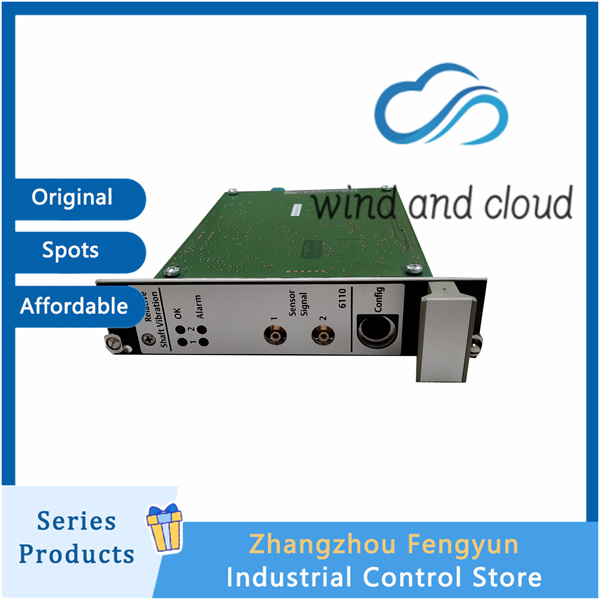

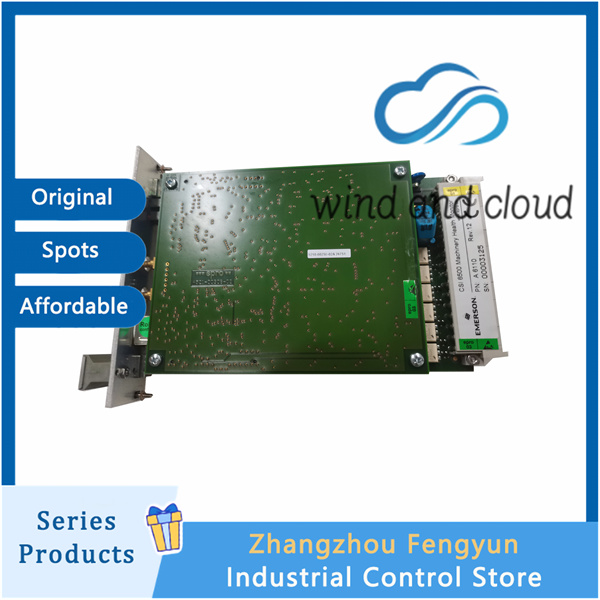

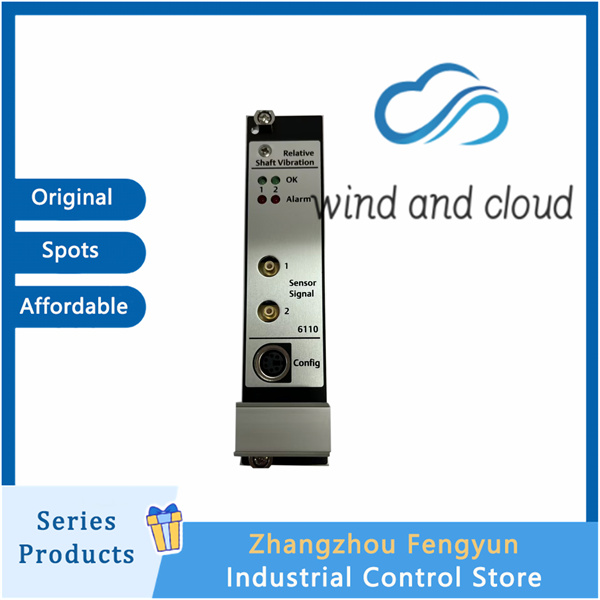

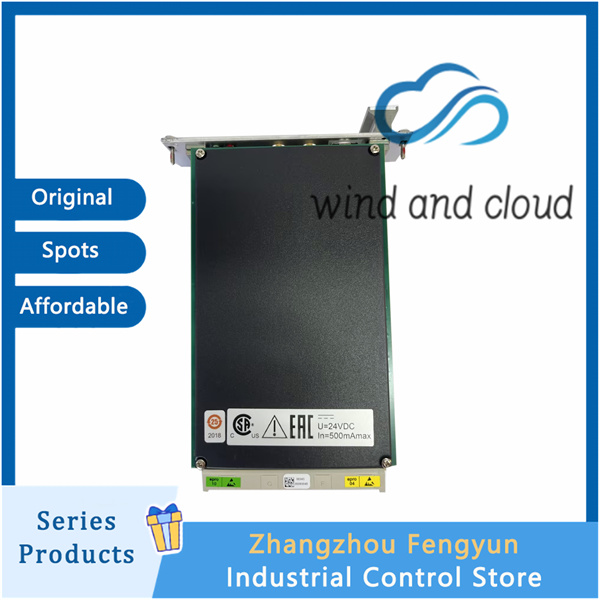

EMERSON A6110｜Shaft Relative Vibration Monitor｜

A6110

Channel: Two independent shaft vibration measurement channels
Compatible probe: EPRO PR6422/PR6423/PR6424/PR6425 eddy current displacement probe+CON011 preamplifier
Input signal: eddy current probe gap voltage -1~-24VDC, differential input, input impedance>100k Ω
Measurement parameters: peak to peak value of shaft vibration, shaft eccentricity, shaft relative displacement
Frequency range: 0.1-16kHz
Measurement accuracy: ± 1% FS; Resolution: 0.1 μ m
output:
Analog output: 4-20mA DC, 0-10VDC (vibration proportional output)
Buffer the original signal output
Alarm/Danger Trip Relay Output (ALERT/DANGER)
Communication: RS485 Modbus RTU, RS232 debugging port
Power supply: DC24V dual redundant input; Power consumption: maximum 6W/ 250mA@24VDC
Function: Channel self-test, sensor disconnection/short circuit detection, alarm delay, trip bypass, remote multiplier switching
parameter
Working temperature: 0 ℃~+65 ℃
Storage temperature: -30 ℃~+85 ℃
Humidity: 5% to 95% RH without condensation
Size: 160 × 128.4 × 30mm (EURO card 3U)
Net weight: 1.0kg (declared value according to official customs declaration standards)
Protection: IP20

Functional purpose
Power plant turbine, gas turbine, compressor, fan TSI shaft vibration online monitoring, over limit alarm, interlock trip protection, API670 standard rotating machinery safety system.
