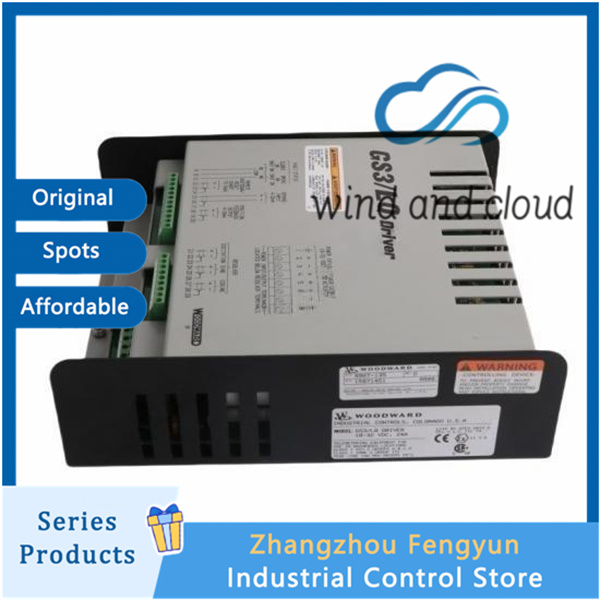

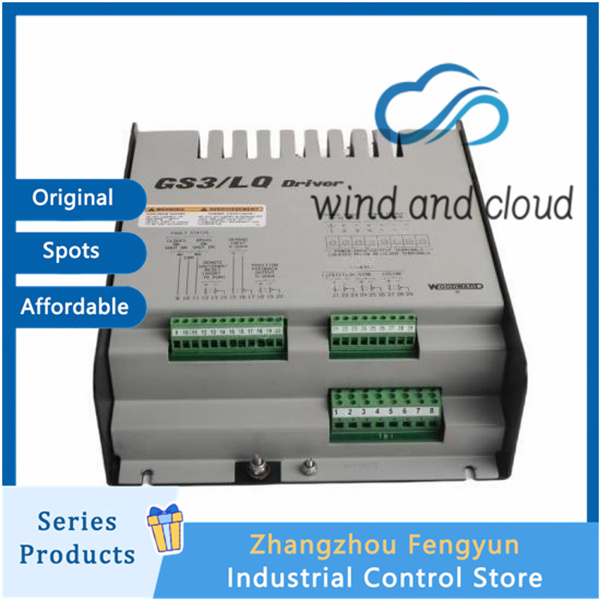

WOODWARD 9907-135｜Driver Module｜

Product type: Woodward Industrial Servo Driver Module, used for precision control of motors/actuators, suitable for scenarios such as steam turbines, generators, industrial automation, etc
Core positioning: Receive 4-20 mA commands, output high current to drive actuators, support multiple communication protocols, have fault protection and remote control functions, and are the core driving spare parts for steam turbine control systems and industrial automation systems.
Specifications
Supply voltage 18-32 VDC (nominal 24 VDC)
Rated output current 10-20 A (continuous); Short term overload 2 times rated value
Short term peak current support for 40A peak (some scenarios)
Input signal 4-20 mA analog command, 16 bit high-resolution
Control resolution 16 bit input resolution, high positioning/speed control accuracy
Response time ≤ 2 ms (control response), overall system response at 10-30 ms level
Communication protocols CANopen, MODBUS, RS-485, EtherCAT (optional)
Fault protection remote shutdown/reset, fault indication, overcurrent/overvoltage/undervoltage protection
Terminal type screw crimping terminal, industrial grade anti vibration design
Electrical protection CE, UL, CSA certification, EMI/RFI anti-interference
Parameter
Working temperature -40 ℃~85 ℃ (wide temperature industrial grade)
Storage temperature -40 ℃~85 ℃
Relative humidity 5% to 95% (non condensing)
Protection level IP54/NEMA 4 (dustproof, splash proof)
Installation method: Panel mounted installation
Size (approximately) 355.6 × 279.4 × 101.6 mm (14 × 11 × 4 inches)
Weight (approximately) 5-7 kg (industrial grade packaging)
Anti vibration/anti impact adaptation to industrial vibration environments, compliant with MIL-STD standards
