Belonging to the 9905 LinkNet I/O module series, it is compatible with speed and load control systems such as Woodward 2301A, EPG, DSLC, etc.
Core function: 6-channel independent thermocouple (TC) signal input, collecting temperature data (such as cylinder temperature, exhaust temperature, bearing temperature) for unit monitoring and protection.
Application scenarios: Distributed temperature monitoring and control for gas turbines, steam turbines, large diesel generator sets, and industrial power plants.

Parameter
Model 9905-967
Number of channels: 6 independent isolated analog inputs (dedicated for thermocouple TC)
Power supply 24 VDC
140Vrms isolation between isolation channels, 1500V isolation between channels and backplate
Resolution 16 bit high-precision sampling
Communication protocol LON (Local Operating Network) LinkNet
Working temperature -40 ° C to+85 ° C

Function
Thermocouple specific input: supports multiple standard thermocouple types (such as K, J, T, E, S, R, B types), built-in cold junction compensation, and directly outputs temperature values.
High isolation and anti-interference: Strong electrical isolation design effectively suppresses electromagnetic interference in industrial sites and ensures signal stability.
High precision acquisition: 16 bit resolution ensures accurate measurement of temperature data and meets strict control requirements.
Distributed I/O architecture: Connected to the control system through the LinkNet bus, remote and distributed signal acquisition is achieved, simplifying wiring.
Industrial grade reliability: wide temperature range, anti vibration design, suitable for harsh industrial environments such as power plants and chemical plants.

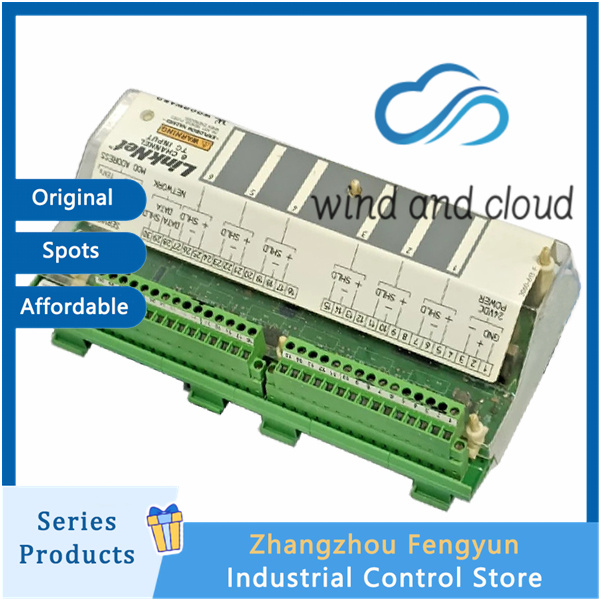

WOODWARD 9905-967｜Linknet 16-bit Channel Analog Input Module｜
