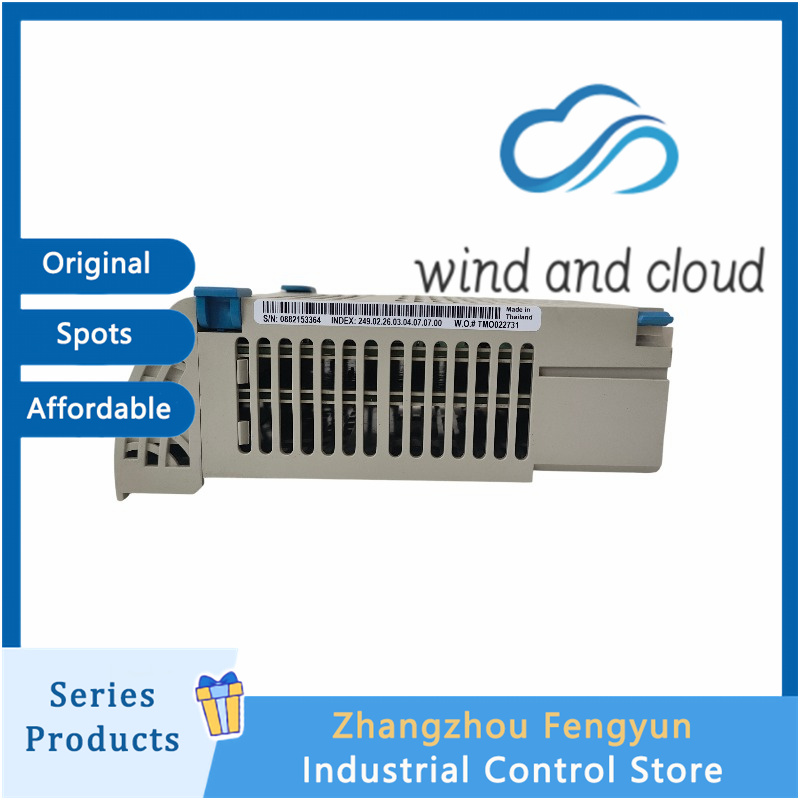

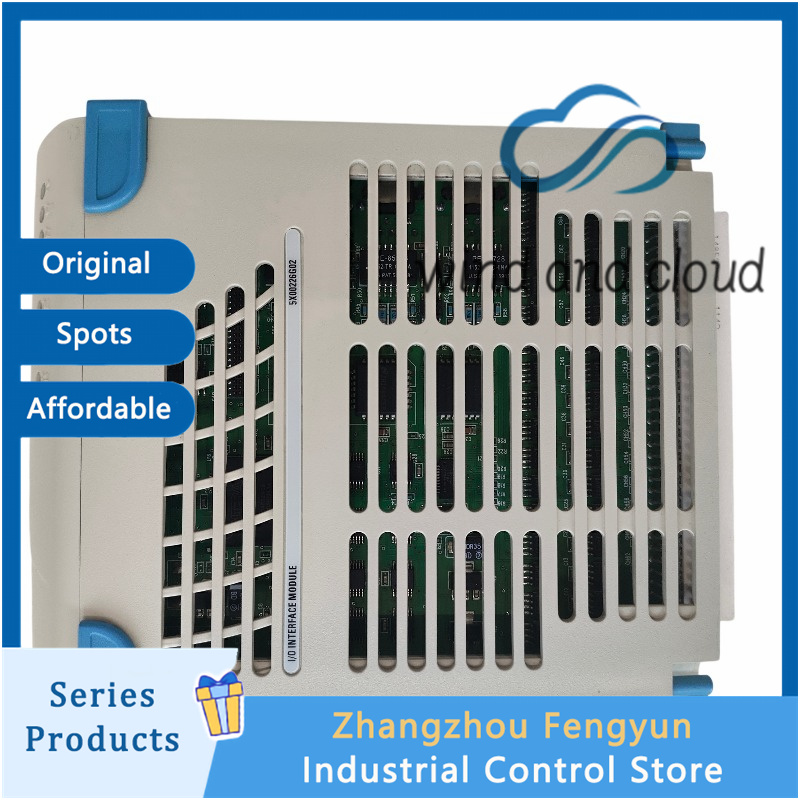

5X00226G02 | Emerson Ovation I/O Drop Link Interface Module

• All items on this website are sold at discounted prices. Given volatile market conditions, final pricing shall be subject to quotations provided by our customer service team.
• Product images shown are not actual photos of the goods. Please verify the model, specifications, price and other details with our customer service prior to placing your order.
• We supply both brand-new and pre-owned modules. Feel free to contact us for further inquiries.

5X00226G02

The 5X00226G02 is an upgraded I/O Drop Link Interface Module for Emerson Ovation DCS (Westinghouse legacy). It serves as the deterministic high-speed communication gateway between Ovation DPU controllers and distributed remote I/O drop racks, transmitting real-time control commands and field analog/digital I/O data over Ovation proprietary serial link. Compared to 5X00226G01, this G02 revision features optimized firmware and hardware circuit upgrades for improved link stability, higher noise tolerance and better compatibility with newer Ovation DPU firmware versions.

It draws 24VDC power from the rack backplane with an operating voltage window of 21.6V ~ 26.4VDC. Dual-module redundant configuration is fully supported; upon primary communication link failure, seamless automatic failover takes place without interrupting process control loops, eliminating single-point communication failure for critical plant control systems. Galvanic isolation of ≥1kV between backplane and I/O drop link effectively suppresses ground loop currents and electromagnetic interference, well suited for high-noise cabinet environments in power and petrochemical plants.

The module adopts standard Ovation keyed rack slot design and supports hot-swap operation. Maintenance engineers can replace the faulty interface module online without powering down the I/O drop or controller rack, reducing production downtime during spare replacement, cabinet maintenance and system retrofit. Integrated self-diagnostic functions plus LED status indicators continuously monitor power health, link quality and fault alarms, enabling fast troubleshooting of communication dropouts or module defects.

Typical applications cover thermal power plants, combined cycle power stations, petrochemical complexes, refineries and water treatment plants. It is widely used for Ovation DCS maintenance, spare replacement and system migration projects, delivering reliable communication links between DPUs and remote I/O sub-racks.

Key Features

• Part number: 5X00226G02, Ovation I/O Drop Link Interface Module (G02 revised version)
• Acts as high-speed serial communication bridge between Ovation DPU and remote I/O drop racks
• Optimized hardware & firmware vs 5X00226G01, enhanced EMI resistance and firmware compatibility
• Ovation proprietary synchronous serial link for deterministic real-time I/O data transmission
• Support dual redundant hot backup modules with automatic bumpless failover
• 24VDC backplane power supply, working range: 21.6–26.4 VDC
• ≥1kV galvanic isolation between backplane and I/O drop communication link
• Suppress ground loop interference and heavy industrial electromagnetic noise
• Hot swappable, online replacement without rack shutdown
• Comprehensive built-in self-diagnostics and LED status / fault indication
• Standard keyed Ovation rack mounting, compatible with Ovation DPU and I/O racks
• Reliable spare part for Ovation DCS maintenance, upgrade and WDPF migration

Technical Specifications Part Number: 5X00226G02
Brand: Emerson / Westinghouse Ovation
Product Type: I/O Drop Link Interface Module
Power Supply: 24VDC (21.6 ~ 26.4 VDC)
Communication: Ovation proprietary high-speed serial I/O drop link
Redundancy: Dual-module redundant hot backup supported
Isolation Rating: ≥1kV between backplane and I/O link Operating
Temperature: 0℃ ~ +60℃ cabinet ambient
Mounting: Standard Ovation keyed rack slot installation
Hot Swap: Supported
Diagnostics: Module health, power supply, communication link monitoring with LED indication
Ambient Humidity: 5%~95% non-condensing
Application System: Emerson Ovation DCS and WDPF II migration racks

Package & Supply Information Condition: New / Refurbished available upon request Warranty: 12 months warranty Packing: Anti-static packaging + foam + export carton Lead Time: In stock, 3–7 working days delivery Shipping: DHL, FedEx, UPS, air freight or sea freight Payment: T/T, other terms negotiable

We supply full series Ovation spare parts including I/O drop link interface modules, EMOD electronic modules, personality modules, power supplies, analog and digital I/O cards. Please contact our sales team for datasheet, cross reference part numbers or bulk quotation of 5X00226G02.
