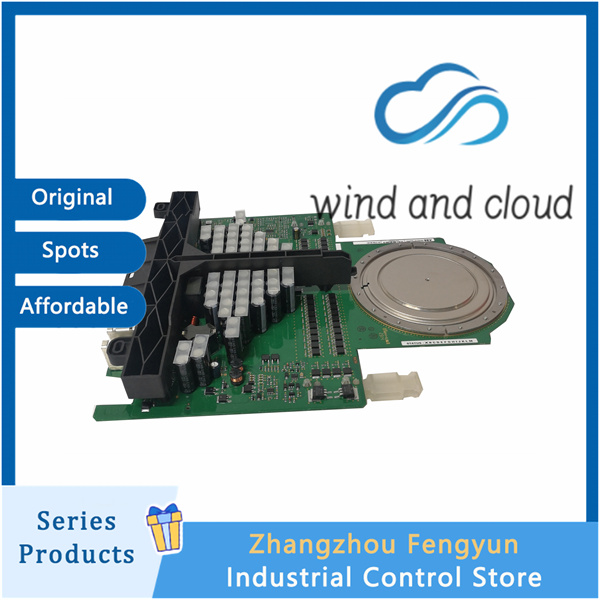

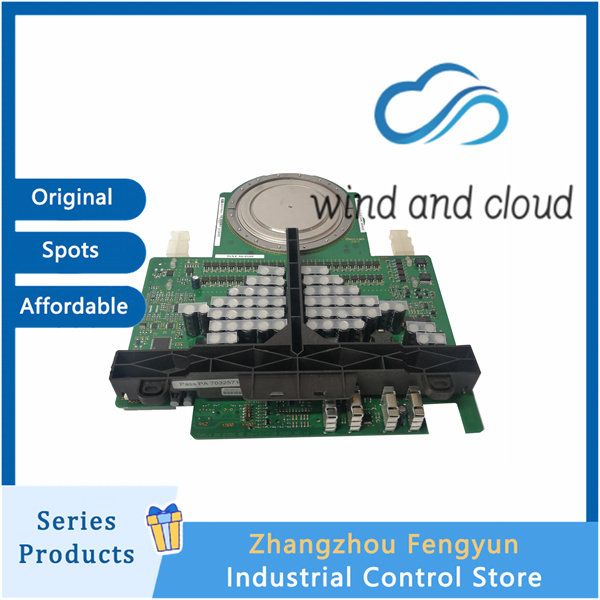

5SHY3545L0016 3BHB020720T0002 3BHE019719R0101 GVC736BE101 ABB Thyristor IGCT Board

5SHY3545L0016 3BHB020720T0002 3BHE019719R0101 GVC736BE101 ABB Thyristor IGCT Board

Parameter
Off state repetitive peak voltage VDRM: 4500 V (4.5 kV)
Rated DC current IT (AV): 3500 A
Peak switchable current ITGQM: 4000 A (typical)
On state voltage drop VT: ≤ 2.4 V (@ 3500A, 25 ° C)
Operating frequency: 50-500 Hz (up to 1 kHz)
Junction temperature range: -40 ° C~+125 ° C
Insulation withstand voltage: AC 5000 V/1min (to ground)
Packaging: Press Pack, double-sided water-cooled
Protection: overcurrent, overvoltage, overheating, and gate fault detection
Switching time: turn-on ≤ 2 μ s, turn off ≤ 4 μ s

Gate pole drive board
Function: IGCT triggering/shutdown, fiber optic isolation, fault diagnosis, status feedback
Control interface: Bidirectional fiber optic (isolation voltage>10 kV)
Power supply: DC 24-30 V, power consumption ≤ 5 W
Driving capability: Peak current ± 200 A (strong driving)
Temperature range: -30 ° C~+70 ° C (board level)
Status indication: Power, Gate, Fault (LED)

Specification
Assembly composition: 5SHY3545L0016 body+GVC736BE101 drive board+water-cooled radiator+bottom plate
Dimensions (length x width x height): approximately 450 x 180 x 45 mm
Weight: Approximately 2.8 kg
Cooling method: double-sided water cooling (recommended flow rate ≥ 6 L/min, inlet water ≤ 40 ° C)
Installation: Fixed with standard cabinet bolts (pressure force strictly matched)

Application
Medium voltage frequency conversion: Steel rolling mill, mine hoist, large pump/fan (ACS6000, 6-11 kV)
Power grid: SVC Plus/SVG, HVDC Light, power quality management
New energy: wind/photovoltaic medium and high voltage converters, energy storage PCS
Industrial Transmission: Ship Electric Propulsion, Rail Transit Traction, Large Compressors
