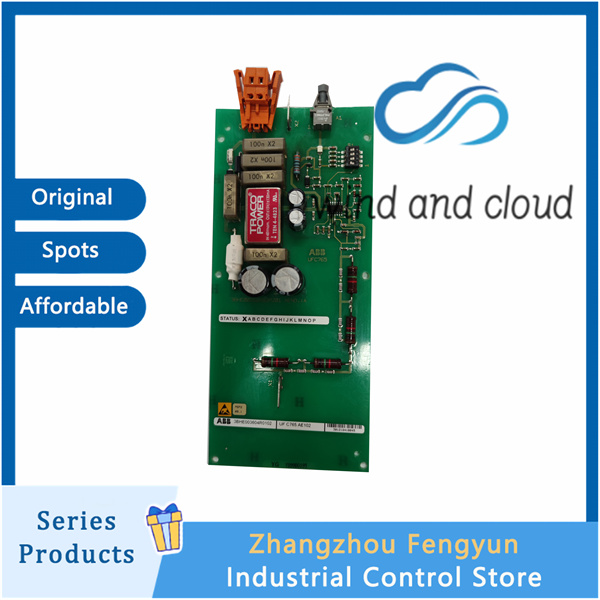

ABB 3BHE003604R0102 UFC765AE102｜AF-BOARD COATED PCS6000｜
3BHE003604R0102 UFC765AE102
System: ABB PCS6000 frequency converter AC 800PEC、Symphony Plus/Advance OCS、 Excitation system (such as UNITOL)
Core functions:
Generator excitation regulation, automatic voltage control AVR
Trigger pulse control of thyristor rectifier bridge
Power system stability, over/under excitation/VHz protection
High speed closed-loop control (voltage loop, current loop)
Application scenarios: thermal power/hydropower/nuclear power/gas turbine generator sets, large-scale transmission, energy grid connection
Parameter
Architecture: 32-bit DSP+FPGA dual core, 200MHz
Control cycle: voltage loop 50 μ s, current loop 25 μ s
Analog quantity: 16 differential inputs, 16 bit ADC, 20kHz/channel
Output: 12 dual pulses, 1.4 μ s resolution (thyristor rectification)
Communication: Fiber DDCS, RS485, Ethernet Modbus TCP/RTU
Redundancy: support dual machine hot standby, switching<3ms; some versions support TMR (the third mock examination redundancy)
Safety level: SIL3, ATEX, IEC 61508
Environment: -25 ℃~+70 ℃, 24VDC power supply
