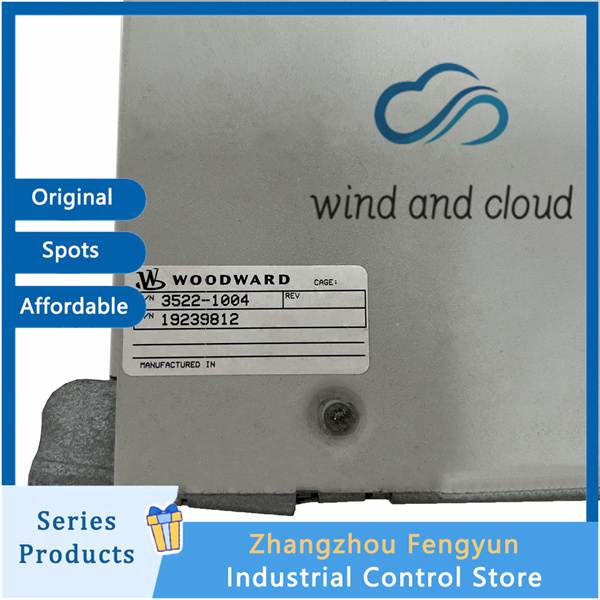

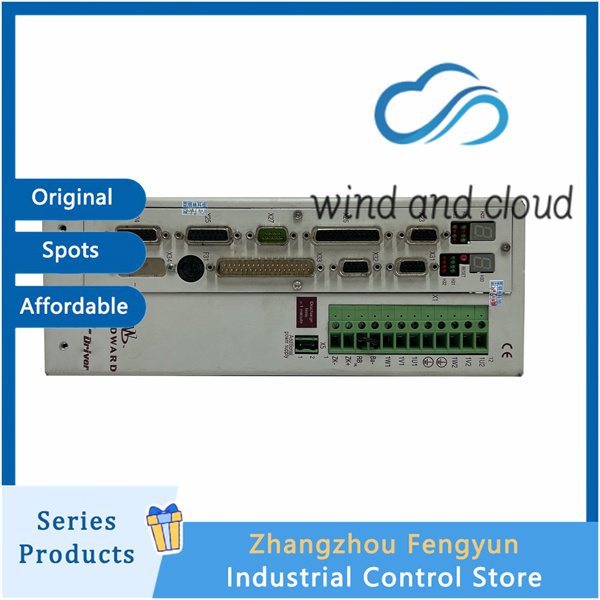

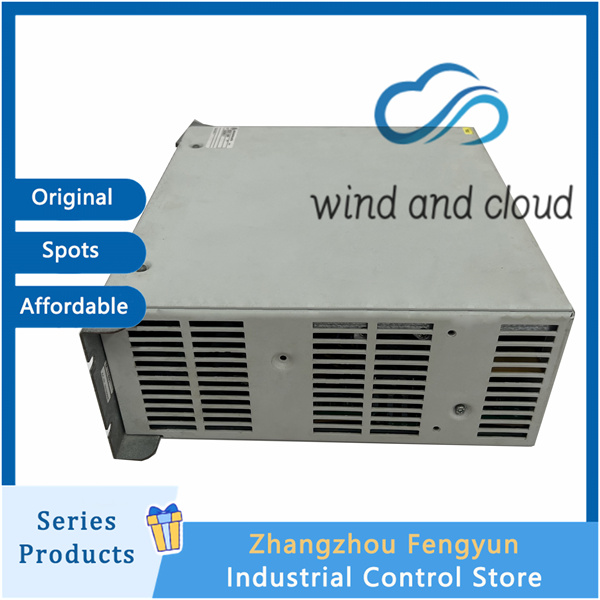

WOODWARD 3522-1004 ｜EM-Driver EM-80/EM-300 Actuators｜

Product type: EM series servo driver (EM Driver)
Supporting objects: EM-80, EM-300 electric actuators
Series affiliation: Woodward Power Control and Servo Drive Platform, the same series also includes configuration models such as 3522-1005, 3522-1041, 3522-1042, 3522-1045, etc
Typical applications: Closed loop control and drive of diesel/gas engines, gas turbines, industrial servo systems, high-precision power actuators
parameter
Supply voltage 24 V DC (industrial standard)
Communication interface CAN, Modbus RTU
Working temperature -40 ℃~+85 ℃ (wide temperature industrial grade)
Output type: mixed digital/analog control
Protection and environmental industrial grade anti-interference, compliant with EN61000 series
Certified to adapt to class/industry standards (DNV, etc.) for use in harsh environments
Functional current closed-loop, position closed-loop, speed closed-loop, fault protection, diagnosis
function
Servo drive: Provides precise current/torque/position closed-loop control for EM-80/EM-300 actuators, suitable for high-precision speed regulation and positioning.
Communication and integration: Supports CAN/Modbus, can be connected to unit control, SCADA and bus systems, and achieve remote monitoring and linkage.
Protection and diagnosis: Built in protection against overcurrent, overheating, short circuit, undervoltage, etc., with fault self diagnosis and status feedback.
Adaptability: Forward/reverse actions are optional, compatible with multiple actuator feedback and control modes, and adaptable to different prime mover and load characteristics.
