Product Overview

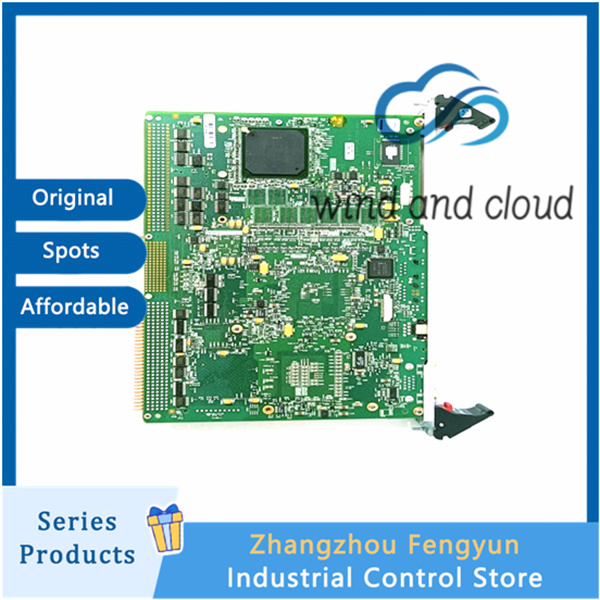

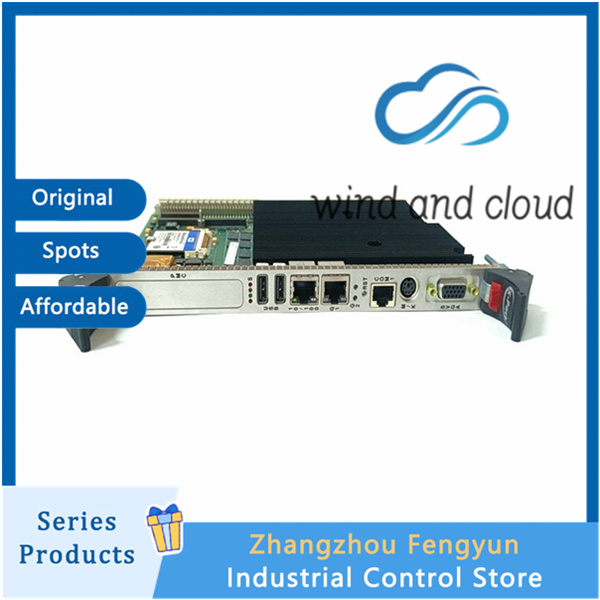

6U VME64x Embedded CPU Board (Pentium® M Based)
This board is a high-reliability VME64x-compatible embedded controller, designed for real-time control, data acquisition, and mission-critical industrial applications. It combines low power consumption, rich I/O resources, and strong environmental adaptability.

Storage

On-board CompactFlash: 512 MB CF (ATA-100 IDE interface)

Expandable up to: 2 GB

VME Bus Interface

VME standard: VME64x compliant

Data width: 32-bit

Maximum bus bandwidth: up to 160 MB/s

Form factor: 6U, single-slot

Network Interface

Dual Gigabit Ethernet ports (RJ45)

Supports remote network boot (PXE)

I/O Interfaces

Serial ports: 4 × RS-232 / RS-422 / RS-485

USB: 4 × USB 2.0 (2 front, 2 rear)

Display: VGA output

Digital I/O: 8 channels DI/DO

Expansion Capability

PMC slot: 1 × PCI-X PMC, 66 MHz

Supports third-party PMC expansion modules (communication, acquisition, etc.)

Power Requirements

Power supply: VME backplane 5 V / ±12 V

Power consumption: ≤ 20 W (full load)

Environmental Specifications

Operating temperature (commercial): 0 °C to +60 °C

Operating temperature (wide temperature option): −40 °C to +85 °C
(Dependent on specific model suffix configuration)

Mechanical Characteristics

Installation: Standard 6U VME rack, single-slot, compatible with VME64x chassis

Weight: Approx. 0.8 kg (single board)

Core Strengths
Low Power Consumption & High Performance

Powered by an Intel® Pentium® M processor, balancing computing performance and energy efficiency

Optimized for fanless cooling, reducing maintenance requirements and improving long-term reliability

Strong Expansion Adaptability

PMC expansion slot enables functional scalability (I/O, communication, acquisition)

Dual Gigabit Ethernet and multiple serial interfaces support complex data interaction requirements

Reliable & Stable Operation

Supports ECC memory error checking and correction

Wide-temperature versions withstand extreme temperatures, vibration, and strong electromagnetic interference, suitable for harsh industrial environments

System Compatibility

Supports multiple operating systems, including:

VxWorks

Real-time Linux

Windows XP Embedded

Well suited for real-time control and embedded computing applications

Remote Operation & Maintenance

Supports PXE network boot

Integrated watchdog reset for automatic fault recovery

Facilitates remote deployment, diagnostics, and unattended operation

Typical Application Scenarios
Industrial Automation

Main controller of VME-based control systems in metallurgical and chemical production lines

Handles real-time data processing, logic control, and equipment interlocking

Military & Aerospace

Embedded computing platform for radar, navigation, and mission systems

Designed for operation under wide temperature ranges and high EMI conditions

Energy & Power

Core processing board for monitoring and control systems in nuclear power plants and wind farms

Ensures reliable transmission of data acquisition and control commands

Rail Transit

Computing module for train control and signaling systems

Adapted to on-board vibration, shock, and wide-temperature environments
