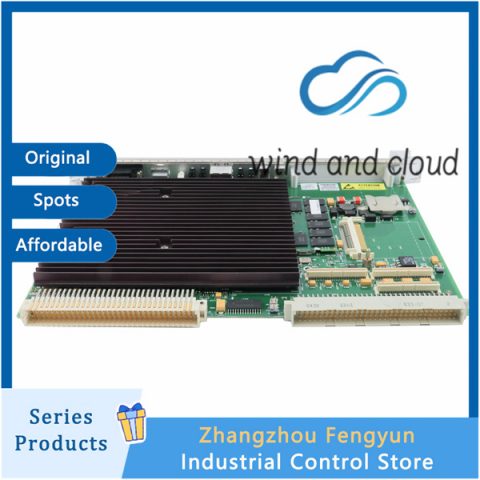

The product is a 6U VMEbus single board computer (SBC) featuring a single-slot, passively cooled design, intended for high-reliability embedded computing applications requiring deterministic performance and long lifecycle support.

Processor and Chipset

Intel® Pentium® III processor

Clock speed: 500 MHz to 1.26 GHz (model-dependent)

256 KB L2 cache

133 MHz front-side bus

Intel® 815E chipset, providing a mature and stable x86 embedded platform

Memory and Graphics

Onboard SDRAM: 128 MB to 512 MB, PC133, expandable

Selected models support ECC verification

4 MB DRAM display cache

Flash storage: 8 MB to 32 MB for firmware and operating system storage

Bus Architecture and Expansion

VME64 / VME64x bus, backward compatible with VME32

Integrated Universe IIB PCI-to-VME bridge

Supports A32 / A24 address modes

Data transfer modes: D32 / D16 / D08

One PMC expansion slot

Compatible with IEEE P1386 standard 5 V PCI Mezzanine Cards (PMC)

I/O Interfaces

Dual 10/100 Mbps Ethernet (RJ45)

Supports remote network boot

2 × RS-232 serial ports (16550-compatible)

2 × USB 1.1

IDE interface (ATA-100)

Supports CompactFlash or hard disk

FlashDisk boot support up to 1 GB

SVGA video output

PS/2 keyboard and mouse interfaces

Parallel port supporting ECP / EPP modes

Core Features

High-Performance Embedded Computing
The Pentium III processor combined with a 133 MHz front-side bus provides sufficient computing power for complex real-time logic, data processing, and control algorithms, meeting the requirements of industrial automation, defense, aerospace, and test systems.

High-Speed Bus and Flexible Expansion
The VME64x bus supports burst transfer rates of up to 160 MB/s, while the Universe IIB bridge enables transparent PCI-to-VME communication. The PMC expansion slot allows functional expansion, such as additional Ethernet interfaces, serial ports, or dedicated control modules.

Rich I/O and Storage Capability
With dual Ethernet, multiple serial ports, USB, IDE, and video interfaces, the SBC supports local data caching, offline operation, and human-machine interaction, adapting to a wide range of system architectures.

Remote Management and High Reliability
Support for remote network boot, watchdog supervision, and ECC memory verification (model-dependent) ensures system stability, fault recovery, and remote operation and maintenance, making the platform suitable for long-term mission-critical applications.

Power and Environmental Specifications

Power rails: +5 V / +12 V / –12 V DC

Passive cooling, no moving parts

Operating temperature: 0 °C to +55 °C

Relative humidity: 5% to 95%, non-condensing
