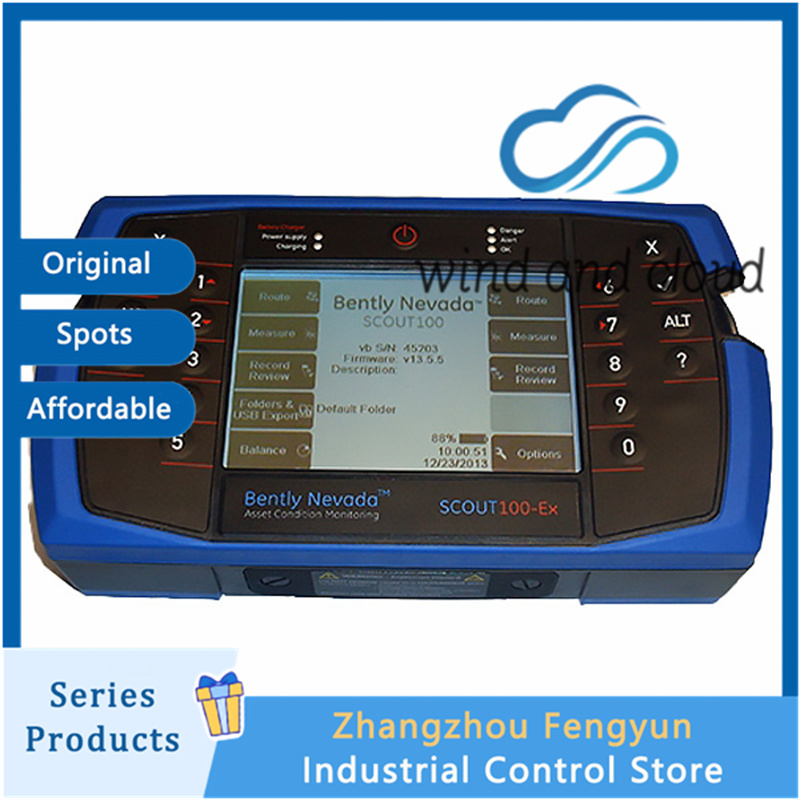

Bently Newada SCOUT100EX ｜Vibration Data Acquisition Balance Instrument｜
Portable Vibration Data Acquisition and Analysis System
Key Features
-
High-Precision Data Acquisition & Analysis
-
Simultaneous dual-channel vibration data acquisition.
-
Accepts signals from acceleration, velocity, displacement, current and other sensor types.
-
Supports AC and DC coupling modes.
-
24-bit ADC with dynamic range ≥ 95 dB for high-precision vibration analysis.
-
-
Dual-Plane Balancing
-
Integrated dual-plane balancing function.
-
Speed range 30 to 60,000 rpm.
-
Diagnoses and corrects dynamic and common imbalance forms in rotating machinery.
-
-
Advanced Recording Capability
-
6 recording systems for low-frequency / high-frequency demodulation waveforms.
-
Continuous long-term waveform recording for up to 1.6 hours.
-
-
Comprehensive Sensor Support
-
Compatible with accelerometers, velocity, displacement and other sensors.
-
Sensor excitation 0 mA or 2.2 mA @ 24 V.
-
Compatible with IEPE/ICP® sensors.
-
Built-in sensor cable self-test for short circuit or open circuit detection.
-
-
Storage & Communication
-
1 GB flash memory (dual mirror) built in.
-
USB host port for external flash drives.
-
Supports USB and Ethernet communication; optional Wi-Fi dongle.
-
Compatible with System 1* and Ascent Level 2 software.
-
XML export supported for data integration.
-
-
User Interface & Operation
-
5.5-inch grayscale LCD, resolution 480 × 320.
-
Multilingual support: English, French, Spanish, Portuguese, Russian, Chinese.
-
Mechanical & Environmental Specifications
| Parameter | Specification |
|---|---|
| Dimensions (W×H×D) | 252 × 148 × 60 mm |
| Weight | 1.2 kg (including battery & strap) |
| Battery | 7.4 V, 5000 mAh lithium-ion |
| Battery Life | 10 hours (typical) |
| Charging Time | 3 hours |
| Protection Level | IP65 |
| Operating Temperature | –10 °C to +50 °C |
| Certifications | ATEX Zone 2, IECEx Zone 2 hazardous area; CE, FCC, EN 61326, RoHS |
| Compliance | Meets global safety and environmental standards |
