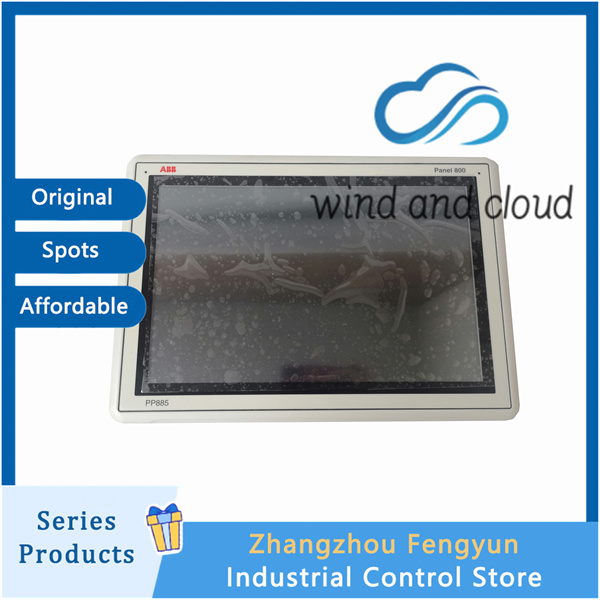

ABB PP885A 3BSE042238R2｜Human machine interface operation panel｜

Display System

Equipped with a 15.6-inch LED-backlit TFT LCD touch screen, the device provides a 1920 × 1080 (Full HD) resolution, 450 cd/m² brightness, 1000:1 contrast ratio, and a backlight life of ≥50,000 hours.
The 344.16 × 193.59 mm display area delivers clear visualization for industrial data and complex operation screens. The resistive touch panel supports gloved operation, ensuring usability in harsh industrial environments.

Core Processor and Storage

Powered by an Intel Celeron J1900 quad-core processor (2.0 GHz base, up to 2.42 GHz turbo), the device delivers excellent computing capability for multitasking applications.
It comes with 4 GB DDR3L memory (expandable to 8 GB) and 16 GB eMMC onboard storage.
Supports SDHC/SDXC expansion up to 128 GB, meeting real-time data acquisition, logging, and HMI application requirements.

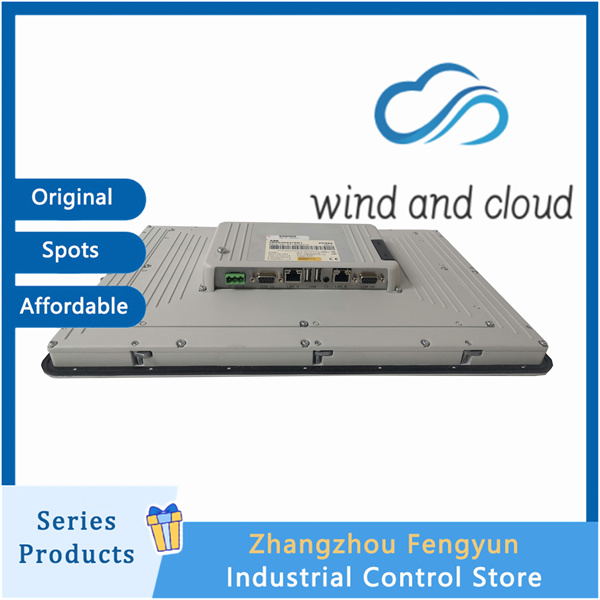

Interface Configuration

Ethernet

2 × Gigabit RJ45 ports, supporting TCP/IP, Modbus TCP, Profinet, and other industrial protocols

USB

4 × USB 2.0 (2 front, 2 rear)

1 × USB 3.0 (rear)

Serial Interfaces

2 configurable ports (RS232/RS422/RS485)

Supports Modbus RTU, ASCII, and common serial communication modes

Other Interfaces

1 HDMI output

1 audio output (3.5 mm)

1 Phoenix Contact power terminal block

Physical and Protective Characteristics

Dimensions: 420 × 279 × 82 mm

Weight: 4.2 kg

Installation: Panel mounting (front IP65 protection), VESA 100 × 100 mm wall-mount

Back protection: IP20

Vibration resistance: 5–150 Hz, 1 g (IEC 60068-2-6)

Shock resistance: 15 g, 11 ms (IEC 60068-2-27)

Environmental Adaptability

Operating temperature: −10°C to 60°C

Storage temperature: −20°C to 70°C

Humidity: 10%–90% (non-condensing)

Front protection: IP65

Designed for dust, moisture, and EMC-challenging environments

EMC compliant with EN 61000-6-2 / EN 61000-6-4

Power Specifications

Input voltage: 24 VDC (wide range 18–32 VDC)

Power consumption: 12 W (typical), 18 W (maximum)

Protections: Reverse connection, overvoltage, and overcurrent protection

2. Core Functions and Technological Advantages
High-Performance Data Processing

Compared with the previous-generation PP882’s Lingdong processor, the Celeron J1900 quad-core CPU provides over three times the computing performance.
It supports smooth execution of:

Multitasking industrial interfaces

Real-time data acquisition

Remote monitoring applications
All with no lag or delay.

Full HD Visualization Experience

The 1080p high-brightness display supports:

Complex process flow diagrams

Real-time multi-parameter trend curves

High-definition video monitoring
Ideal for precision operation scenarios such as chemical reaction control or power equipment inspection.

Flexible Protocol Compatibility

Natively supports mainstream industrial protocols:

ABB Industrial IT

Modbus

Profinet

EtherNet/IP

Compatible with controllers such as:

ABB AC500 / AC800M

Siemens S7-1500

Rockwell CompactLogix

Various third-party sensors and actuators

Industrial-Grade Reliability

Wide-temperature operation

Enhanced EMC immunity

Fanless cooling design (avoids dust buildup)

MTBF ≥ 100,000 hours
Suitable for 24/7 continuous industrial operation.

Convenient Development and Maintenance

Fully compatible with ABB Panel Builder 800:

Supports graphical drag-and-drop interface design

Supports script functions (e.g., VBScript)

Data log export

Provides remote access and diagnostics via Ethernet or VPN, significantly reducing on-site maintenance cost.
