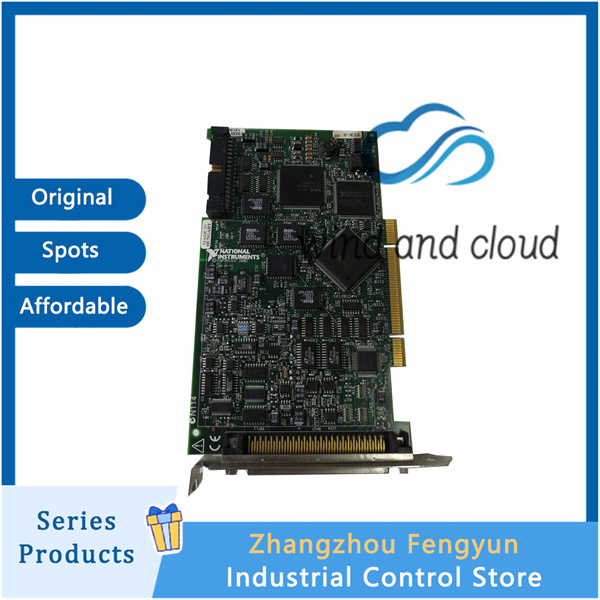

NI PCI-6133｜High performance communication card｜
Analog & Digital I/O Data Acquisition Module — Specifications
Analog Input
-
Channels: 16 single-ended or 8 differential inputs
-
Resolution: 16 bits
-
Max. Sampling Rate: 2 MS/s simultaneous per channel
-
Input Ranges: ±0.2 V, ±1 V, ±5 V, ±10 V (selectable)
-
Accuracy: Integral non-linearity (INL) ±0.01 % of full scale
Analog Output
-
Channels: 2
-
Resolution: 16 bits
-
Update Rate: 1 MS/s per channel
-
Output Range: ±10 V
-
Drive Capability: 2 mA, can directly drive small loads
Digital I/O
-
Lines: 8 TTL-compatible digital lines
-
Direction: Programmable as input or output
Timing & Triggering
-
Onboard Time Base: 100 MHz for precise sampling and timing
-
Trigger Modes: Analog, digital and software triggering supported for easy multi-device synchronization and complex measurement sequences
Characteristics & Advantages
-
High-Performance Acquisition: 2 MS/s, 16-bit resolution captures rapidly changing dynamic signals (ideal for audio testing, vibration analysis, etc.)
-
Flexible Signal Adaptation: Multi-range input design allows direct connection to various sensors and transmitters without extra conditioning circuits
-
Easy Integration: Compatible with NI DAQmx driver software; supports LabVIEW, C/C++, Python and other languages for rapid system development
-
Industrial-Grade Reliability: Powered by PCI bus with a 0 – 55 °C operating range for stable laboratory and industrial use
NI PCI-6133｜High performance communication card｜
By structuring the information in this manner, the article provides a clear and organized understanding of input channels, transducer supply, and communication implementations in distributed control systems.
