IS200JPDHG1AAA – JPDH High-Density Power Distribution Board
General Description

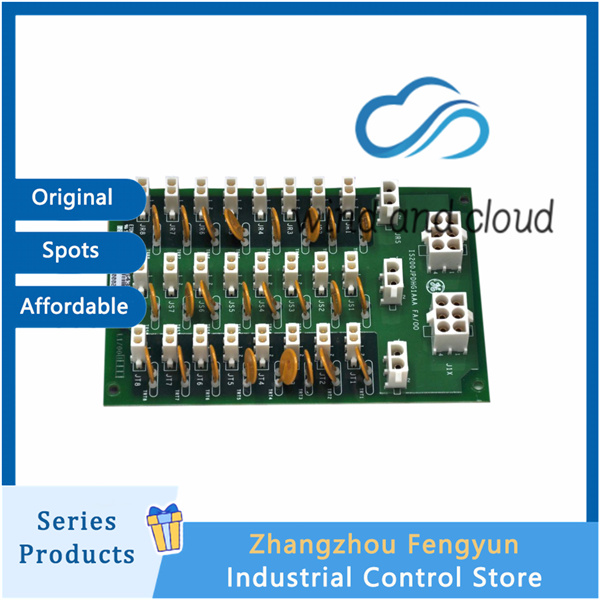

The IS200JPDHG1AAA is a JPDH High-Density Power Distribution Board designed for the GE Mark VIe Turbine and Gas Turbine Control System. It provides centralized 28 V DC power distribution for a large number of I/O modules and network devices, supporting high-availability, space-efficient, and hazardous-area control system deployments.

Technical Specifications

Model / Type: IS200JPDHG1AAA

Product Name: JPDH High-Density Power Distribution Board

Applicable System: GE Mark VIe Turbine / Gas Turbine Control System

Power Input

Input Voltage: 28 V DC

Input Connector:

6-pin Mate-N-Lok interface (J1)

Supports three independent redundant power feeds

Single-pin rating: 13 A, 600 V withstand

Power Output

Output Voltage: 28 V DC

Power Distribution Capacity:

Supplies power to 24 I/O components

Supplies power to 3 Ethernet switches

Connector Configuration

Total Connectors: 29 female connectors

2 × 6-pin connectors

27 × 2-pin connectors

Fully compatible with Mark VIe system load connections

Environmental Conditions

Operating Temperature: −30 °C to +65 °C
(Industrial standard with hazardous-area suitability)

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH (non-condensing)

Mechanical Characteristics

Dimensions (W × H × D):
Approx. 107.95 mm × 158.75 mm × 120 mm

Installation Method: DIN-rail mounting

Weight: Approx. 0.6 kg (including mounting accessories)

Core Features
High-Density Power Distribution

A single JPDH board supplies power to 24 I/O modules and 3 Ethernet switches, significantly reducing cabinet space requirements and supporting compact, distributed control system architectures.

Triple Redundant Power Input

The 6-pin J1 input interface supports three independent 28 V DC power feeds, greatly enhancing power supply reliability for critical turbine control applications.

Hazardous-Area Adaptation

Designed to meet the requirements for hazardous and explosion-risk environments, making it suitable for industries such as petrochemical, oil & gas, and natural gas processing.

Daisy-Chain Expansion Capability

Supports multi-board cascading (daisy-chain) connections, allowing flexible expansion of system power capacity for large-scale I/O deployments.

High-Reliability Connectors

Uses Mate-N-Lok standard connectors, rated for 600 V and 13 A, ensuring robust, long-term electrical connections in demanding industrial environments.

Typical Applications

Centralized power distribution for GE Mark VIe gas and steam turbine control systems

Turbine control installations in hazardous areas (petrochemical, oil & gas, natural gas facilities)

Centralized power management nodes for distributed I/O architectures

Critical industrial control cabinets requiring redundant power supply and high-density outputs
