Key Specifications

Communication Interface

Physical layer: RS-485

PROFIBUS functionality: DP-V0 / DP-V1 slave

Protocol & Performance

Baud rate: 9.6 kbit/s to 12 Mbit/s

Station address range: 1–125

Minimum slave station cycle time: ≥ 3 ms

Integrated watchdog and link diagnostics

Power Supply & Consumption

Supply voltage: 24 V DC (15–30 V DC)

Power consumption: approx. 5 W

Mechanical & Environmental

Mounting: 19-inch rack

Height: 3 HU

Width: 4 SU

Operating temperature: −20 °C to +60 °C

Protection class: IP20

Supports hot swapping

Core Functionality

Communication Offloading
Independently manages PROFIBUS DP communication, relieving the main safety CPU from bus processing tasks. This improves system real-time performance, determinism, and overall reliability.

Safety-Compliant Architecture
Works in coordination with the main safety CPU to ensure secure communication paths and compliance with SIL 3 safety requirements for SIS and ESD applications.

Diagnostics & Maintenance

Real-time monitoring of PROFIBUS bus status

Detection and reporting of communication faults

Supports online diagnostics and hot-swappable replacement, minimizing downtime

Remote Configuration
Supports ELOP II remote programming and configuration via Ethernet (version V4.1 and above), enabling centralized engineering and maintenance.

Typical Applications

Used in SIS / ESD systems across high-risk industries, including:

Petrochemical and chemical processing

Offshore oil and gas

Power generation

Metallurgy and heavy industry

Typical use cases include secure PROFIBUS DP communication between the HIMA safety system and:

DCS

SCADA systems

Field instruments and remote I/O stations

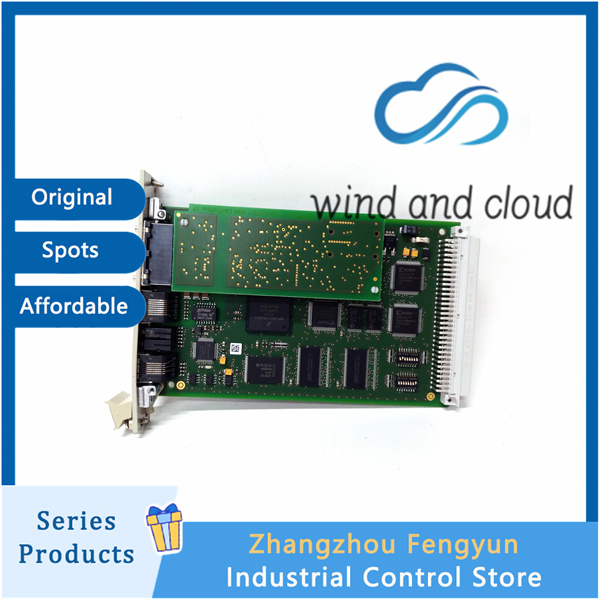

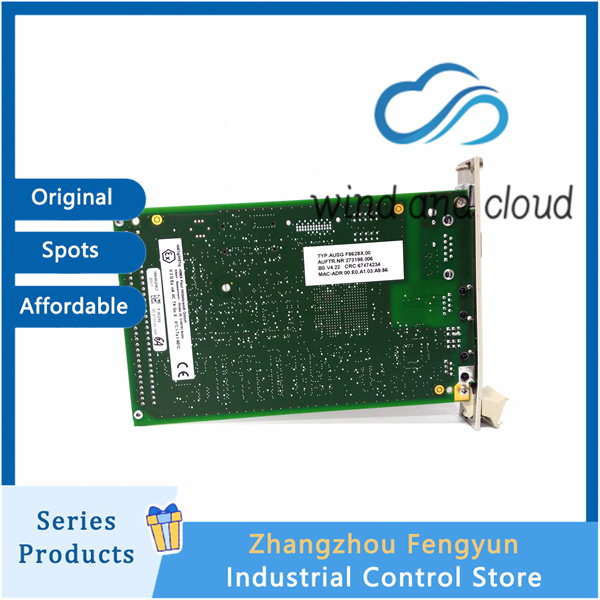

HIMA F8628｜Communication Module｜
