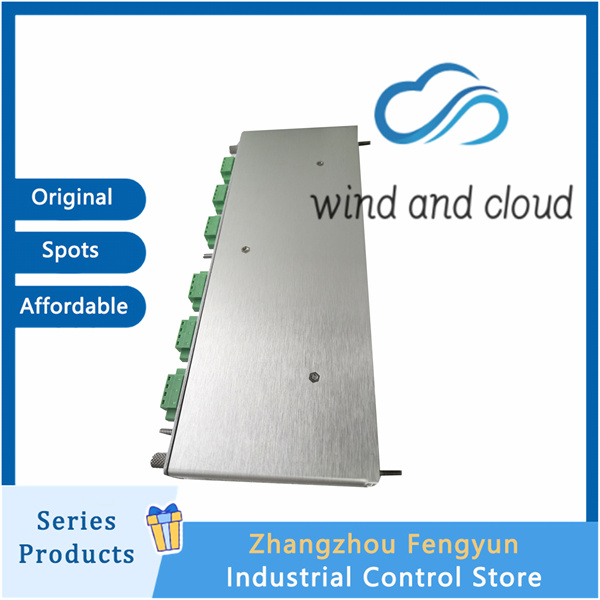

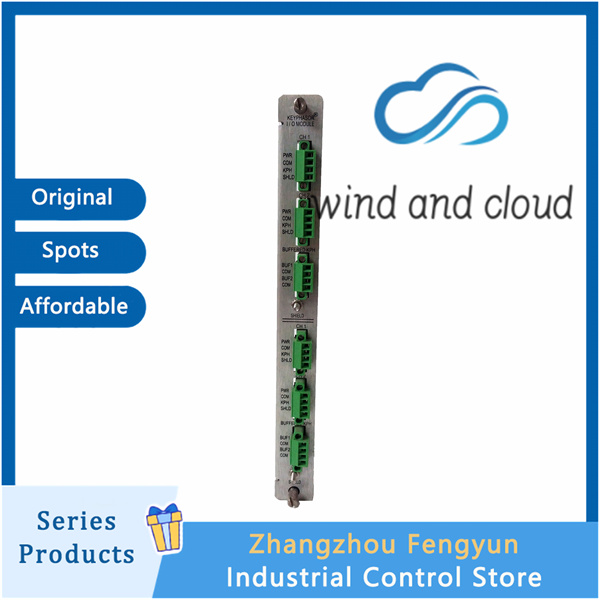

Bently Nevada 3500/25 125800-01｜Keyphasor I/O Module｜
Functional Description
The 3500/25 Enhanced Keyphasor I/O Module provides power excitation, signal conditioning, and digital conversion for keyphasor (key phase) sensors. It supplies sensor power to up to two probes, acquires shaft reference pulse signals, and converts them into digital keyphasor signals for use by 3500 monitoring modules and diagnostic tools.
These digital reference signals enable accurate calculation of shaft speed, 1X vibration amplitude, and phase, and support synchronous monitoring of rotating shaft systems.
Channel Configuration
Number of channels: 2 keyphasor input channels per module
Expansion capability:
Single module: 2 channels
Multi-module configuration: up to 4 modules per rack (maximum 8 keyphasor channels)
Sensor compatibility:
Magnetic (magneto-electric) pickups
Eddy current probes
Compatible with Bently Nevada 3300 XL series Keyphasor sensors
Sensor Power Supply
Output voltage: 24 VDC (±5%) per channel
Maximum output current: 50 mA per channel
Protection: Short-circuit protected per channel
Signal Characteristics
Input Signal
Type: Keyphasor pulse (magnetic pickup or eddy current probe)
Input amplitude: 0.5 to 25 Vpp
Frequency range: 0.1 to 20,000 Hz
Supported shaft speed: 0.1 to 20,000 RPM
Output Signal
Type: Digital keyphasor signal via 3500 backplane bus
Phase accuracy: ±0.1° synchronous pulse accuracy
Data exchange: Real-time communication with monitoring modules such as 3500/42M, 3500/45, and related diagnostics modules
Installation
Rack location: Any 3500 rack slot except Slot 1
Form factor: Standard 3500 Series half-height module
Integration: Can be installed alongside other monitoring modules
Maximum per rack: 4 modules (8 keyphasor channels total)
Power Requirements
Input voltage: 24 VDC (±10%)
Power source: Redundant 3500 rack power supplies
Power consumption: ≤ 3 W
Protection: Overcurrent and overvoltage protection
Environmental Specifications
Operating temperature: 0 ℃ to +65 ℃ (internal termination version)
Storage temperature: –40 ℃ to +85 ℃
Environmental protection: Conformal (three-proof) coating
Hazardous area rating: Suitable for Class I, Division 2 applications
Bently Nevada 3500/25 125800-01｜Keyphasor I/O Module｜
By structuring the information in this manner, the article provides a clear and organized understanding of input channels, transducer supply, and communication implementations in distributed control systems.
