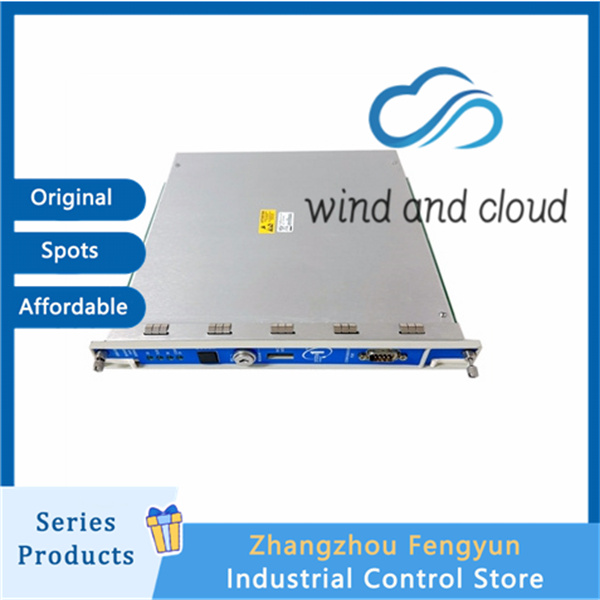

BENTLY 3500/22M 288055-01 kilocalorie｜Transient Data Interface｜
-
- 1. General Description
The Bently Nevada 3500/22M 288055-01 is a Transient Data Interface (TDI) module for the 3500 Machinery Protection System.
It serves as the primary communication interface between the 3500 rack and external systems such as:
System 1® Condition Monitoring Software
SCADA / DCS systems
Plant asset management platforms
The 3500/22M combines the functions of a rack interface module (RIM) and communication processor into a single module.
2. Main Functions
Rack InterfaceInterfaces with all monitor modules in the 3500 rack
Collects static and dynamic data
Handles configuration and status information
Data Communication
Ethernet-based communication with System 1®
Supports 10/100Base-T Ethernet
Enables remote configuration and diagnostics
Transient Data Collection
Captures waveform and transient event data
Enables detailed machinery analysis
Supports high-resolution dynamic data transfer
Configuration Management
Allows rack configuration through 3500 Rack Configuration Software
Stores system setup and monitor parameters
3. Technical Specifications (Typical)
Parameter Specification
Module Type Transient Data Interface (TDI)
Series 3500 Machinery Protection System
Ethernet Port 10/100Base-T
Data Type Static + Dynamic (Waveform)
Rack Slot Must be installed in Slot 1
Power Supply Provided by 3500 rack
4. System Role in 3500 RackThe 3500/22M must be installed in Slot 1 of the rack and functions as:
Primary communication gateway
Data concentrator
Configuration interface
Without the TDI module, the rack cannot communicate externally.
5. Typical Applications
Steam and gas turbines
Compressors
Pumps
Generators
Critical rotating machinery
Used in industries such as:
Oil & Gas
Power generation
Petrochemical
Heavy industry
